Easyform
Interior luminaire Smart sensor BLE HCL

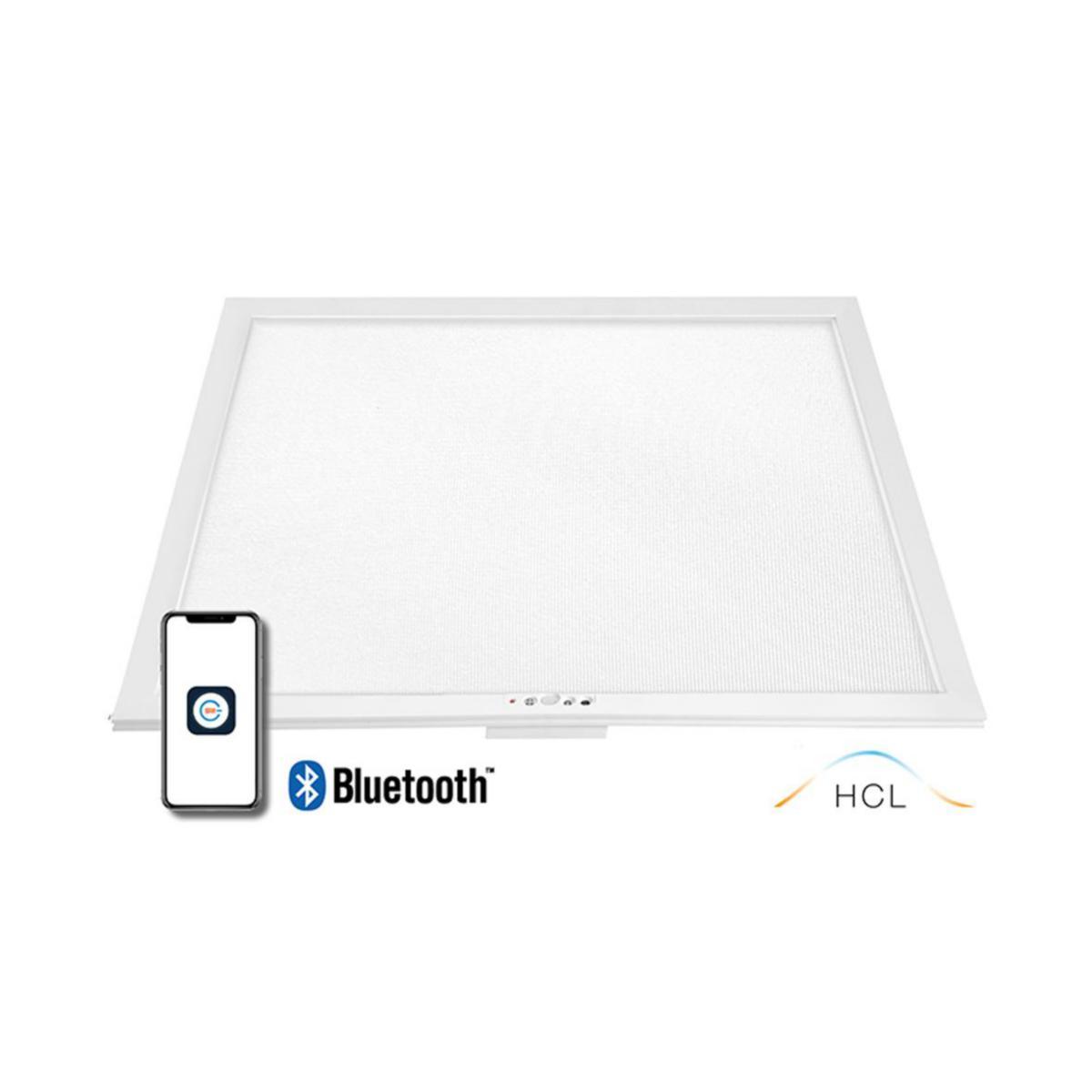

LED PANEL 60X60/3000K SMS/HCL. EDL066TUNE-SMS
Article number: Suppl. article no:
7016946
EDL066TUNE-SMS
to see price and stock
The LED panel is equipped with an integrated smartSENSOR (SMS). Different sizes and different mounting options are possible. The product comes with 9 preset programs that make installation extra easy. If the user wants to program their own program, it is possible. Programming of safety lights (10%) is also possible. Luminaire 7016948 is also equipped with an emergency light function
- Article number: 7016946
- Suppl. article no: EDL066TUNE-SMS
- Material class QT0340
Technical data
- Packagin Size: 1 ST/4 ST/4 ST
- Max. system power: 33 W
- Rated luminous flux according to IEC 62722-2- 1: 3922 lm
- Colour temperature: 3000-6000 K
- Housing colour: White
- Type of control gear: LED operating device current-controlled
- Length: 596 mm
- Width: 596 mm
- Height/depth: 10 mm
- With movement sensor: Yes
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: II
- Unified Glare Ratio (UGR): 17
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: Yes
- Rated life time L80/B10 at 25 °C: 50000 h
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Built-in width: 600 mm
- Lamp type: LED exchangeable
- Suitable for built-in mounting: Yes
- Suitable for suspended mounting: Yes
- Built-in length: 600 mm
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: Yes
- Suitable for ceiling mounting: Yes
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Dimming 0-10 V: Yes
- Dimming 1-10 V: Yes
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 105 lm/W
- Operation by Bluetooth: Yes
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Built-in height/depth: 50 mm
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Light outlet: Direct
- REACH Date: 2021-06-16
- Lowest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Highest energy efficiency class of the exchangeable lamp: A+
