Let it light

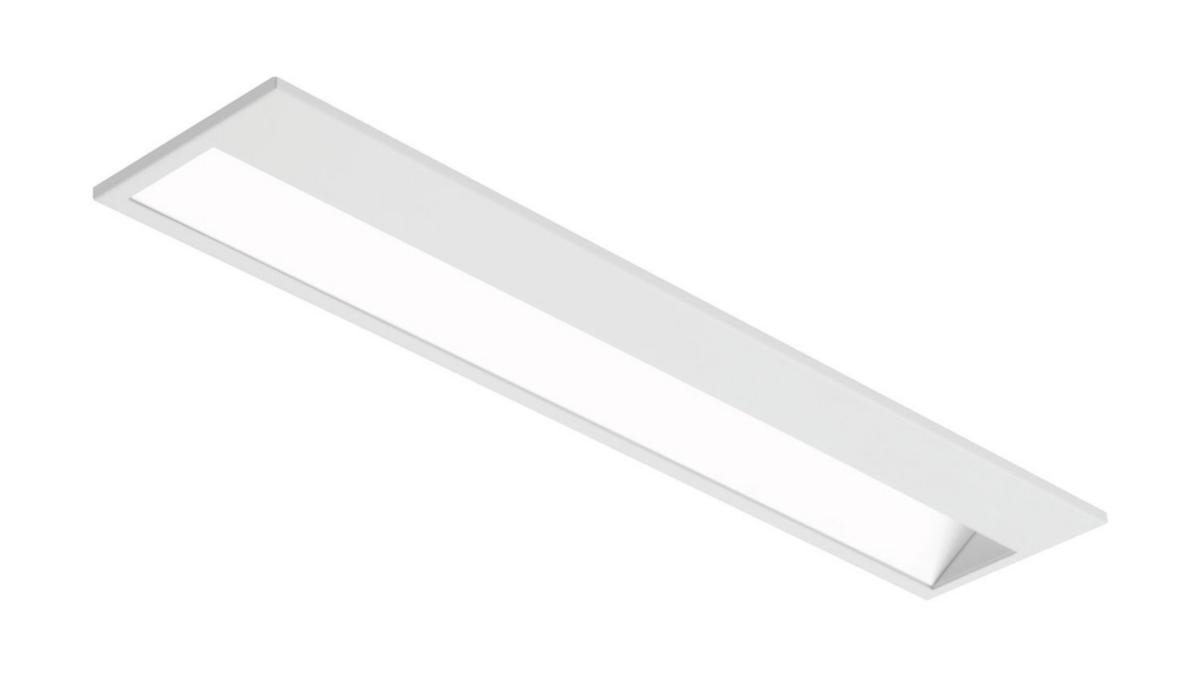

Interior luminaire EDAN
EDAN ASYM 39W3400lm3K DA
Article number: Suppl. article no:
7050226
10006
to see price and stock
Interior luminaire EDAN
- Article number: 7050226
- Suppl. article no: 10006
- Material class QT0380
Technical data
- Packagin Size: 1 PCS/25 PCS/25 PCS
- Max. system power: 37 W
- Rated luminous flux according to IEC 62722-2- 1: 3700 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: Yes
- Type of control gear: LED operating device current-controlled
- Dimming with push-button: Yes
- Length: 83 mm
- Width: 1195 mm
- Height/depth: 123 mm
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: I
- Housing material: Steel
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated life time L80/B10 at 25 °C: 50000 h
- Colour rendering index CRI: 80-89
- Material cover: Plastic, structured
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: Yes
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: No
- With light source: Yes
- With light sensor: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Beam angle: 41-80° - Wide beam
- Suitable for workplace according to EN 12464-1: Yes
- Covering of the luminaire with thermally insulating material possible: No
- Dimming phase cut-off (trailing edge): No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Colour of light: White
- Luminaire efficacy: 100 lm/W
- Type of wiring: Suitable for loop-through wiring
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Suitable for wall mounting: No
- Power factor: 0.9
- With air slots: No
- REACH Date: 2021-01-01
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming depending on control gear: No
- Dimming GPRS: No
