Hide-a-lite

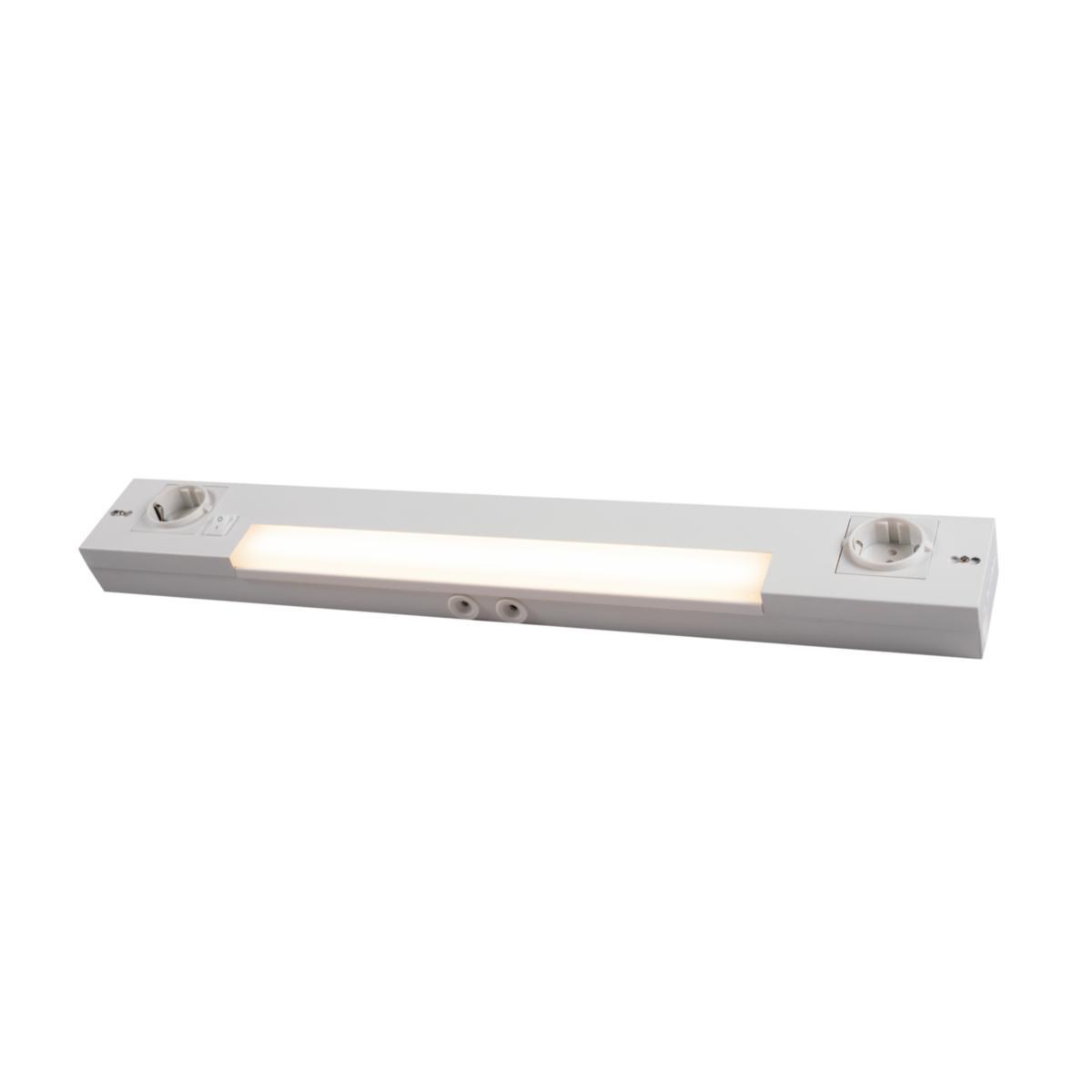

Bench luminaire Kitchen Line
KITCHEN LINE 927/930 580 KITCHEN LINE
Article number: Suppl. article no:
7019616
7019616
to see price and stock

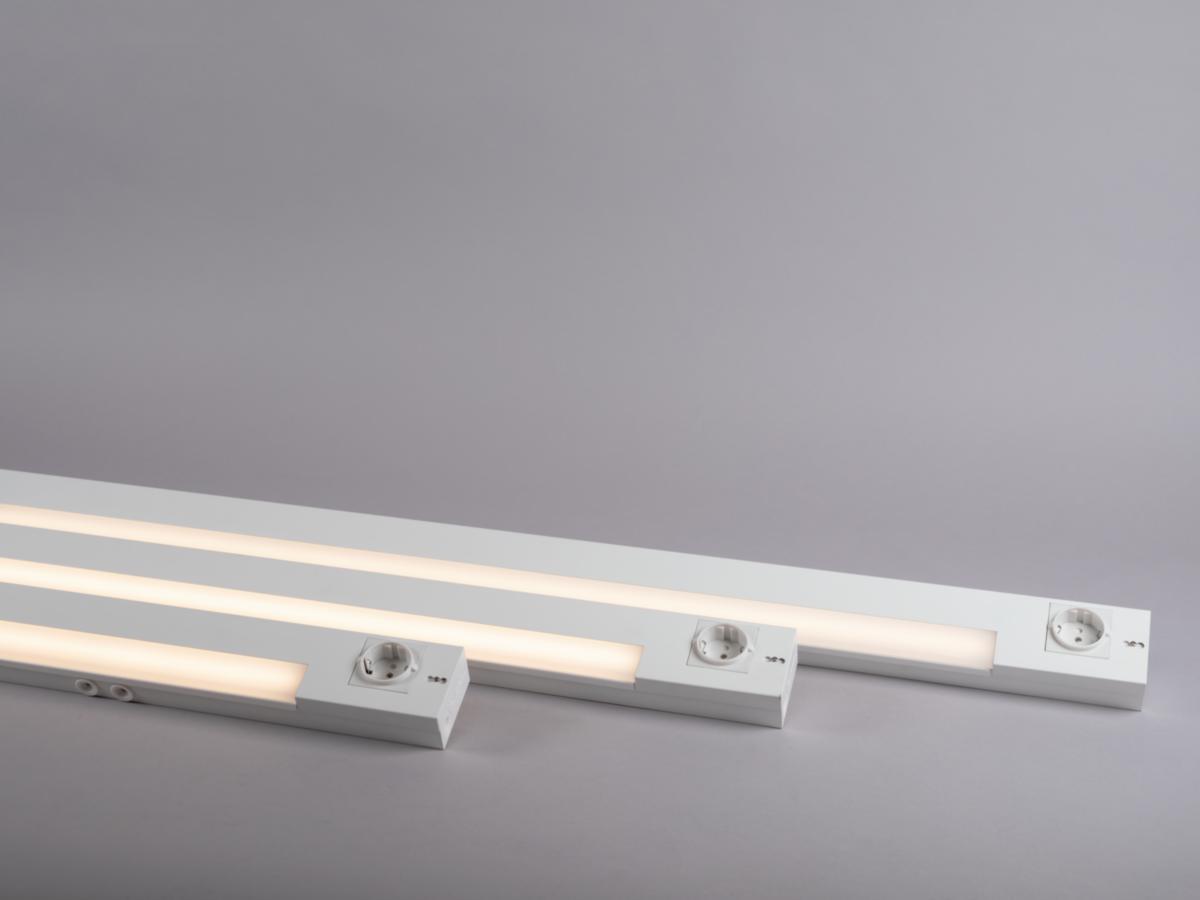

Dimmable base cabinet luminaire with linear light in three lengths and sockets on each side. Perfect replacement for fluorescent luminaires or for new installation. Opal light emission in two directions, provides light on both the work surface and the wall. Selectable color temperature via DIP switch. On / Off switch on luminaire, can be dimmed with external dimmer. Easy installation with screw, plenty of space, keyhole assembly and cable gland on both short and long sides. Lighting and sockets can be controlled separately.
- Article number: 7019616
- Suppl. article no: 7019616
- Ean no: 7392971143309
- Material class QT0320
Technical data
- Packagin Size: 1 ST/6 ST/6 ST
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2- 1: 750 lm
- Colour temperature: 2700-3000 K
- Housing colour: White
- Housing material: Steel
- Dimming DALI: No
- Dimming DALI-2: No
- Length: 580
- Width: 75 mm
- Height/depth: 46 mm
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: I
- Colour rendering index CRI: 90-100
- Colour consistency (McAdam ellipse): SDCM3
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Dimming phase cut-off (trailing edge): Yes
- With light source: Yes
- With light sensor: No
- Number of poles: 4
- Conductor cross section: 1.5 mm²
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DSI: No
- With movement sensor: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: Yes
- Colour of light: Multi-coloured
- Luminaire efficacy: 94 lm/W
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 0.9 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 0.8 %
- Operation by Bluetooth: No
- Total harmonic distortion (THD): 30 %
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming DMX: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming mains voltage modulation: No
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Beam angle: > 80° - Extreme wide beam
- Light outlet: Direct
- Suitable for number of light sources: 1
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for light line configuration: Yes
- Suitable for ceiling mounting: No
- Suitable for surface mounting: Yes
- Material cover: Plastic, opal
- With air slots: No
- Nominal voltage: 220-240
- Type of grid: None
- Voltage type: AC
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Luminous intensity: 250 cd
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 120
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 120
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Surface protection housing: Lacquered
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Suitable for wall mounting: No
- Connection type: Push-in clamp
- REACH Date: 2022-06-01
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- REACH Information obligation: No
- Dimming depending on control gear: No
