SG Armaturen

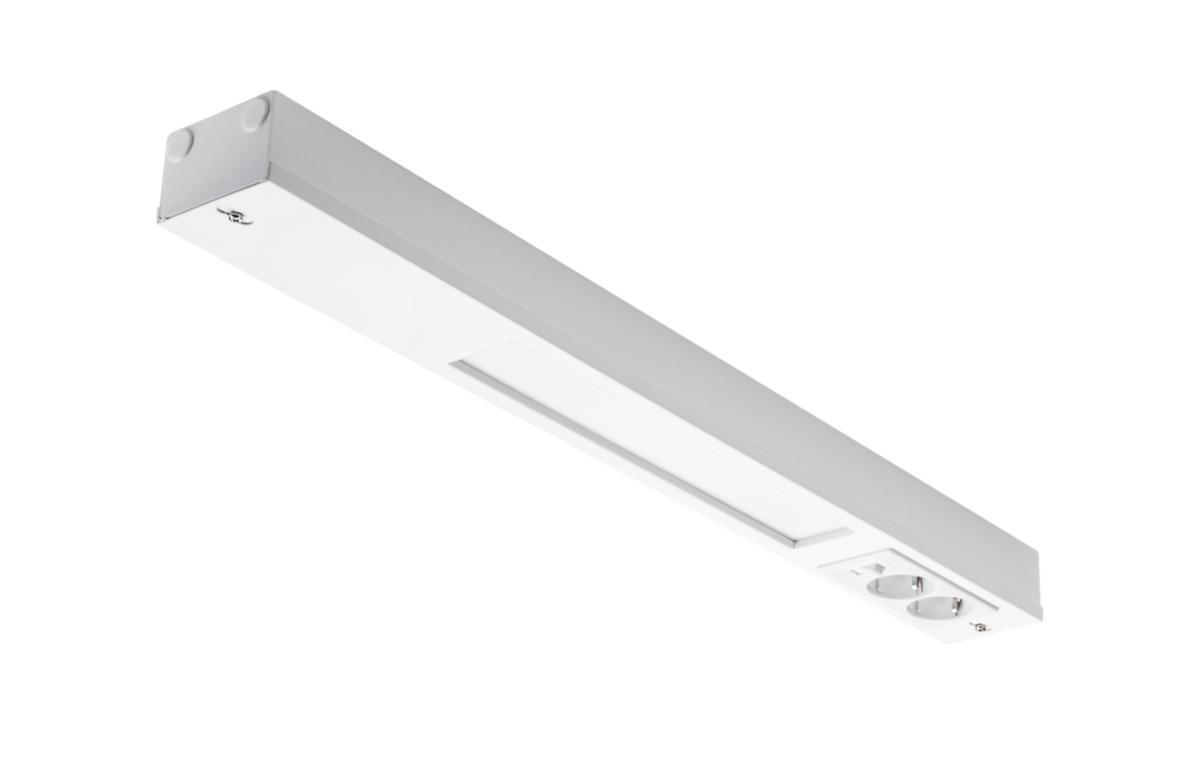

Bench luminaire Namsen
NAMSEN 600 27K W/OUTLET NAMSEN
Article number: Suppl. article no:
7017848
112022
to see price and stock
The name is a cost-effective luminaire with dimmable, integrated LED. Easy assembly and transfer. The versions with switches and double outlets (16A) are suitable as under cabinet lighting in the kitchen. Separate connection of the outlets. The model without switches and outlets can also function as general lighting in ceilings. Namsen 1200 is equipped with Dip switch for adjustable amount of light in 3 positions (500mA 19W, 600mA 23W and factory setting 700mA 26W)
- Article number: 7017848
- Suppl. article no: 112022
- Ean no: 7021981120221
- Material class QT030A
Technical data
- Packagin Size: 1 ST/10 ST
- Type: 600
- Design: With switch, outlet
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 910 lm
- Colour temperature: 2700 K
- Housing colour: White
- Housing material: Steel
- Dimming DALI: No
- Dimming with push-button: No
- Length: 635 mm
- Width: 69 mm
- Height/depth: 46 mm
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: I
- Impact strength: IK00
- Colour rendering index CRI: 80-89
- Colour consistency (McAdam ellipse): SDCM3
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Dimming phase cut-off (trailing edge): Yes
- With light source: Yes
- With light sensor: No
- Number of poles: 3
- Conductor cross section: 2.5 mm²
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DSI: No
- With movement sensor: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Dimmable: Yes
- Colour of light: White
- Luminaire efficacy: 76 lm/W
- Suitable for lamp power: 12 W
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Outer diameter: 0 mm
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Operation by Bluetooth: No
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 50 %
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming DMX: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming mains voltage modulation: No
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Built-in width: 0 mm
- Light outlet: Direct
- Suitable for number of light sources: 1
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for light line configuration: No
- Suitable for ceiling mounting: Yes
- Suitable for surface mounting: Yes
- Material cover: Other
- With air slots: No
- Nominal voltage: 220-230 V
- Type of grid: None
- Voltage type: AC
- Covering of the luminaire with thermally insulating material possible: No
- Photobiological safety according to EN 62471: Other
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 71
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 71
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Surface protection housing: Lacquered
- Light distribution: Symmetric
- Light distributor: Other
- Built-in diameter: 0 mm
- Suitable for wall mounting: Yes
- Built-in height/depth: 0 mm
- Connection type: Push-in clamp
- Rated life time L90/B10 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- REACH Date: 2022-08-24
- REACH contains candidate substances: Bly
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- REACH Information obligation: Yes
- Dimming depending on control gear: No
