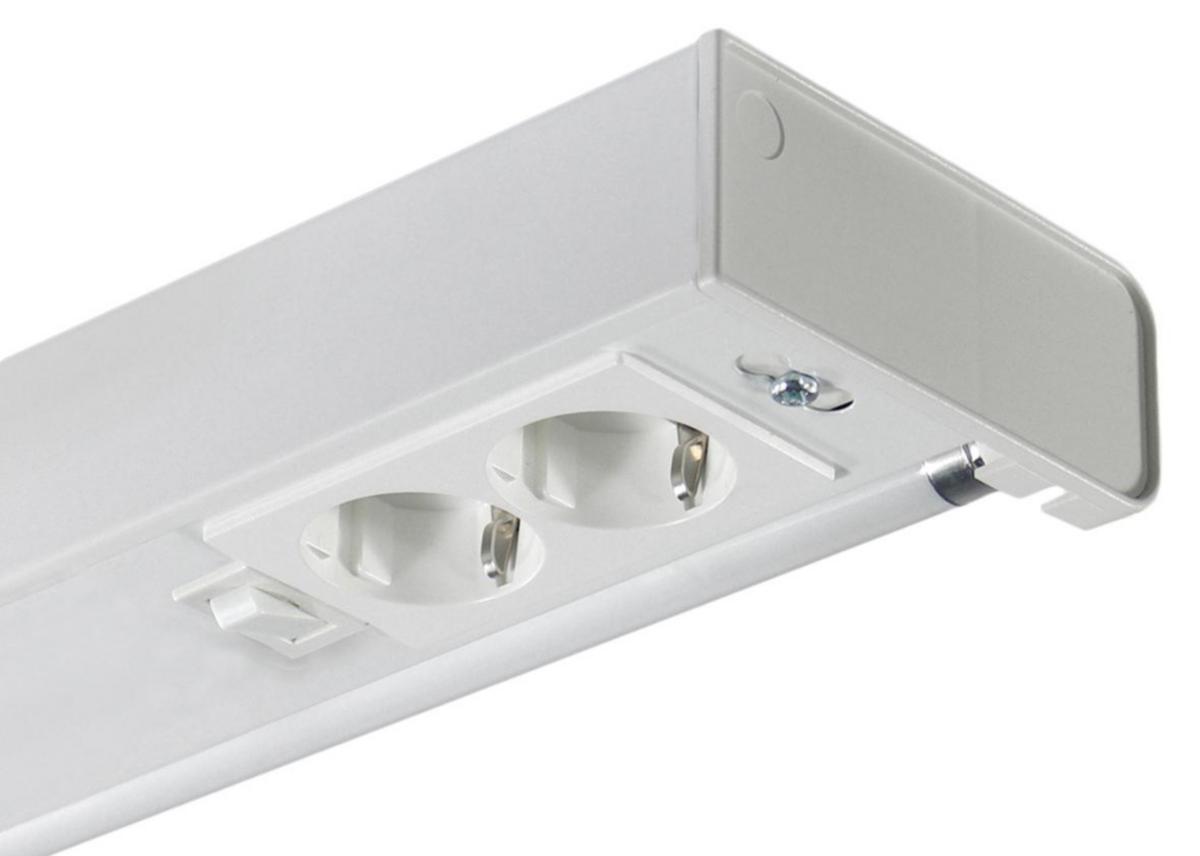

Bench luminaire aMigo LED tube, a-collection
UC LUM 9W 1170LM 3000K M UTT AMIGO LED TUBE
Article number: Suppl. article no:
7017784
7017784
to see price and stock
Field of use
Over workbenches, in kitchens, washrooms, kitchenette
Performance
Frame of white powder coated steel sheet. Fittings in white ASA plastic. 10 / 16A double grounded pet-proof socket and flip switch on the underside of the luminaire. Low build height and easy assembly. Supplied with pre-assembled LED fluorescent lamp 3000K with 35'000 hours. The light source is interchangeable.
Mounting
Mounted on the underside of cabinet or shelf. Reversible cover for positioning the sockets optionally to the right or left.
Connection
Conduction through 13 mm knockout in each end and long sides. Connection via quick connection terminal max. 2.5 mm². "
Over workbenches, in kitchens, washrooms, kitchenette
Performance
Frame of white powder coated steel sheet. Fittings in white ASA plastic. 10 / 16A double grounded pet-proof socket and flip switch on the underside of the luminaire. Low build height and easy assembly. Supplied with pre-assembled LED fluorescent lamp 3000K with 35'000 hours. The light source is interchangeable.
Mounting
Mounted on the underside of cabinet or shelf. Reversible cover for positioning the sockets optionally to the right or left.
Connection
Conduction through 13 mm knockout in each end and long sides. Connection via quick connection terminal max. 2.5 mm². "
- Article number: 7017784
- Suppl. article no: 7017784
- Ean no: 7333123033505
- Material class QT0211
- This is an alternative to item 7010965
Technical data
- Packagin Size: 1 ST/150 ST/150 ST
- Type: aMigo LED tube
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2- 1: 1000 lm
- Colour temperature: 3000 K
- Housing colour: White
- Length: 616 mm
- Width: 87 mm
- Height/depth: 44 mm
- Colour rendering index CRI: 80-89
- Colour consistency (McAdam ellipse): SDCM3
- With light source: Yes
- Dimmable: No
