Hide-a-lite

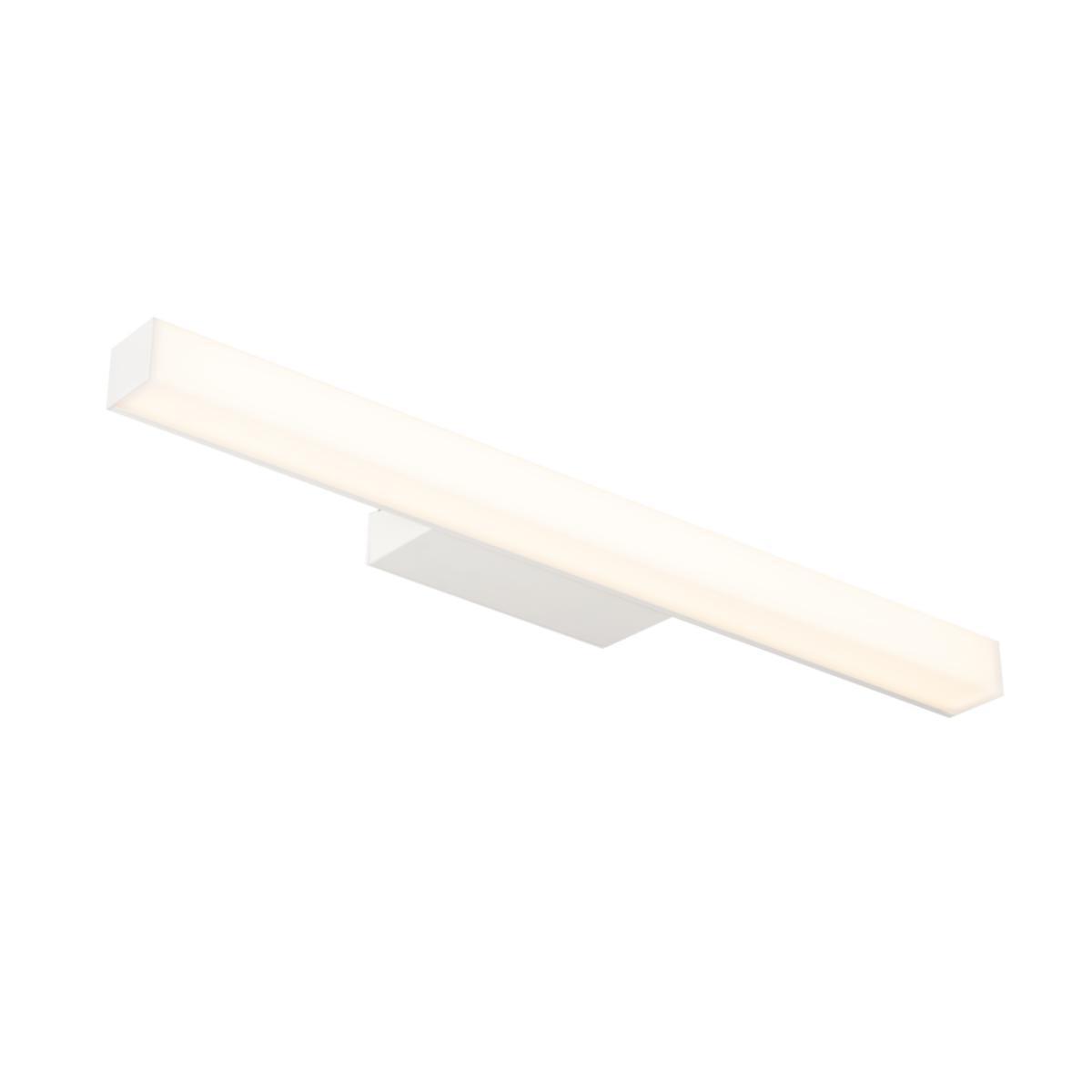

Mirror fitting Mirro IP44, Hide-a-lite
CABINET LIGHT MIRRO IP44 2700K
Article number: Suppl. article no:
7502857
7502857
to see price and stock
Timeless mirror luminaire in white lacquered aluminum (RAL 9016) with opal cup for an even and wide beam of light. Very good color reproduction, RA90. IP44-rated and adapted to meet the requirements for smaller bathrooms in public and private environments. Mounted on a wall with concealed or surface-mounted wiring and on top of bathroom cabinets with included brackets. Integrated phase-dimmable drive device, double bushings of which a centered and quick terminal for forwarding provides quick and easy installation.
- Article number: 7502857
- Suppl. article no: 7502857
- Ean no: 7392971129785
- Material class QT702A
Technical data
- Packagin Size: 1 ST/10 ST/10 ST
- Max. system power: 12.5 W
- Rated luminous flux according to IEC 62722-2- 1: 1200 lm
- Colour temperature: 2700 K
- Housing colour: White
- Type of control gear: LED operating device current-controlled
- Length: 600 mm
- Width: 40 mm
- Height/depth: 38 mm
- Degree of protection (IP): IP44
- Protection class according to IEC 61140: I
- Colour consistency (McAdam ellipse): SDCM3
- Housing material: Aluminium
- Nominal voltage: 220-240 V
- Voltage type: AC
- With control gear: Yes
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Colour rendering index CRI: 90-100
- Colour of light adjustable: No
- Constant light output (CLO): No
- Material cover: Plastic, opal
- Luminous intensity: 215 cd
- Lamp type: LED not exchangeable
- Suitable for built-in mounting: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Suitable for ceiling mounting: No
- Type of grid: None
- Beam angle: > 80° - Extreme wide beam
- Suitable for workplace according to EN 12464-1: No
- Covering of the luminaire with thermally insulating material possible: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light: White
- Luminaire efficacy: 96 lm/W
- Type of wiring: Suitable for loop-through wiring
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 91 %
- Beam angle adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 50
- Exchangeable control gear: No
- Surface protection housing: Powder coating
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Light outlet: Direct
- Suitable for number of light sources: 1
- With air slots: No
- REACH Date: 2022-06-01
- REACH Information obligation: No
