Wall fixture LED Prelude, SG-Armaturen
PRELUDE WHITE W/OUTLET 2700K
Article number: Suppl. article no:
7501595
111341
to see price and stock

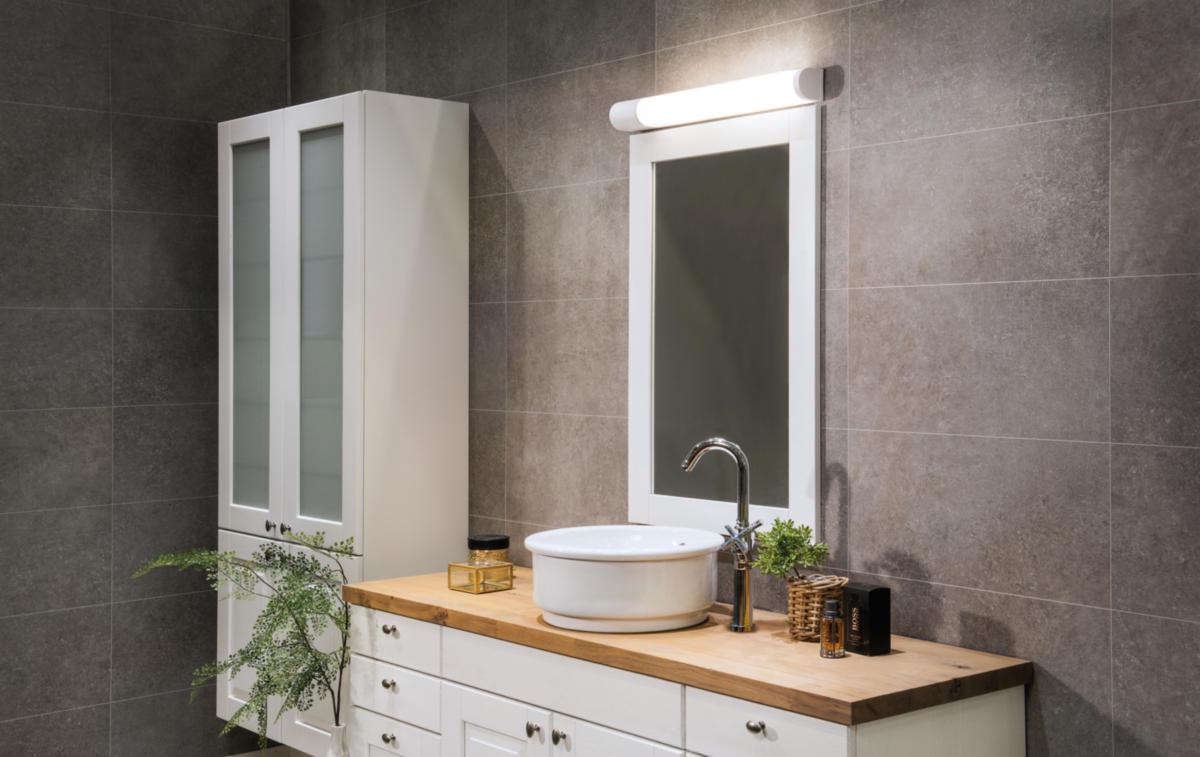

Bathroom fixture for mounting over mirror, with outlet.
IP44 for horizontal mounting and IP20 for vertical mounting.
Supplied with LED. Not dimmable.
IP44 for horizontal mounting and IP20 for vertical mounting.
Supplied with LED. Not dimmable.
- Article number: 7501595
- Suppl. article no: 111341
- Ean no: 7021981113414
- Material class QT687A
Technical data
- Packagin Size: 1 ST/8 ST/128 ST/128 ST
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2-1: 1000 lm
- Colour temperature: 2700 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Colour rendering index CRI: 90-100
- Length: 560 mm
- Width: 70 mm
- Height/depth: 80 mm
- Degree of protection (IP): IP44
- Impact strength: IK05
- Dimming phase cut-off (trailing edge): Yes
- Lamp type: LED not exchangeable
- Type of control gear: Not required
- With control gear: No
- Material cover: Plastic, opal
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 0 h
- Number of poles: 3
- Degree of protection (NEMA): Other
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimmable: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Touch and Dim: No
- Dimming Zigbee: No
- Dimming phase cut-on (leading edge): No
- Dimming manufacturer's proprietary system: No
- Dimming potentiometer (integrated): No
- Dimming mains voltage modulation: No
- Dimming programmable: No
- Dimming Sine Wave Reduction: No
- Dimming with push-button: No
- Suitable for number of light sources: 1
- Suitable for built-in mounting: No
- Suitable for lamp power: 16 W
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Suitable for workplace according to EN 12464-1: No
- Filament test according to IEC 60695-2-11: None
- Covering of the luminaire with thermally insulating material possible: No
- Built-in length: 0 mm
- Built-in width: 0 mm
- Protection class according to IEC 61140: I
- Housing material: Aluminium
- Lamp holder: Other
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distribution: Symmetric
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 63 lm/W
- With movement sensor: No
- With air slots: No
- With light source: Yes
- With light sensor: No
- Nominal voltage: 220-240 V
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Type of wiring: Suitable for loop-through wiring
- Type of grid: None
- Beam angle: 41-80° - Wide beam
- Outer diameter: 0 mm
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Colour consistency (McAdam ellipse): SDCM3
- Emergency power supply integrated: No
- Surface protection housing: Lacquered
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 0 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 70 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 0 %
- Failure rate at median useful life of 75,000 h at 25 °C ambient (tq): 0 %
- Failure rate at median useful life of 35,000 h at 25 °C ambient (tq): 0 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 37
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 46
- IFTTT support available: No
- Exchangeable control gear: No
- Built-in diameter: 0 mm
- Suitable for wall mounting: Yes
- Built-in height/depth: 0 mm
- Connection type: Push-in clamp
- Rated life time L90/B10 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- Lowest energy efficiency class of the exchangeable lamp: A+
- Highest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Dimming depending on control gear: No
