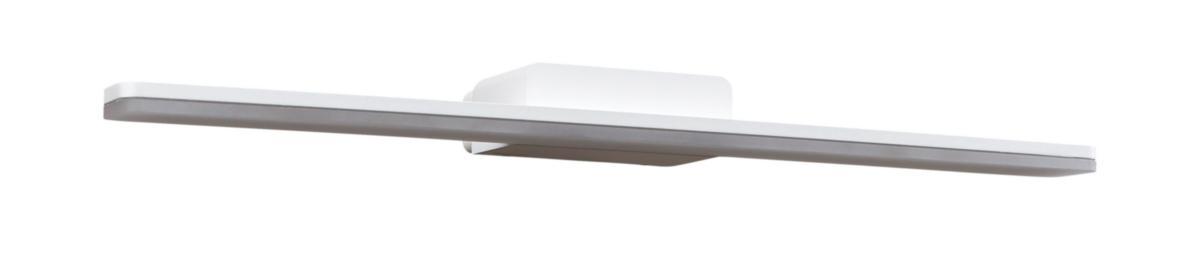

Bathroom luminaire Aqua LED Mirror, Westal
LUM AQUA LED SPEGEL II WHT
Artikelnummer: Lev. artikelnr:
7500760
2661-30
för att se saldo och pris
Stylish dimmable mirror luminaire in modern design. The luminaire is made of cast aluminum, well adapted for both mirror lighting in bathrooms and as picture lighting. Complete with driver for 230V. The back piece has two inputs and outputs and a quick-connect terminal block.
- Article number: 7500760
- Suppl. article no: 2661-30
- Ean no: 7393047661307
- Material class QT700A
Teknisk data
- Packagin Size: 1 ST/6 ST/6 ST
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2-1: 1620 lm
- Colour temperature: 3000 K
- Housing colour: White
- Colour rendering index CRI: 80-89
- Width: 600 mm
- Height/depth: 115 mm
- Degree of protection (IP): IP54
- Lamp type: LED not exchangeable
- With control gear: Yes
- Material cover: Structured glass
- Voltage type: AC/DC
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): Yes
- Suitable for surface mounting: Yes
- Protection class according to IEC 61140: I
- Housing material: Aluminium
- Light distribution: Symmetric
- Light outlet: Direct
- Luminaire efficacy: 101 lm/W
- With light source: Yes
- Nominal voltage: 220-240 V
- Type of wiring: Suitable for loop-through wiring
- Beam angle: 41-80° - Wide beam
- Suitable for wall mounting: Yes
- REACH Date: 2021-12-08
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
