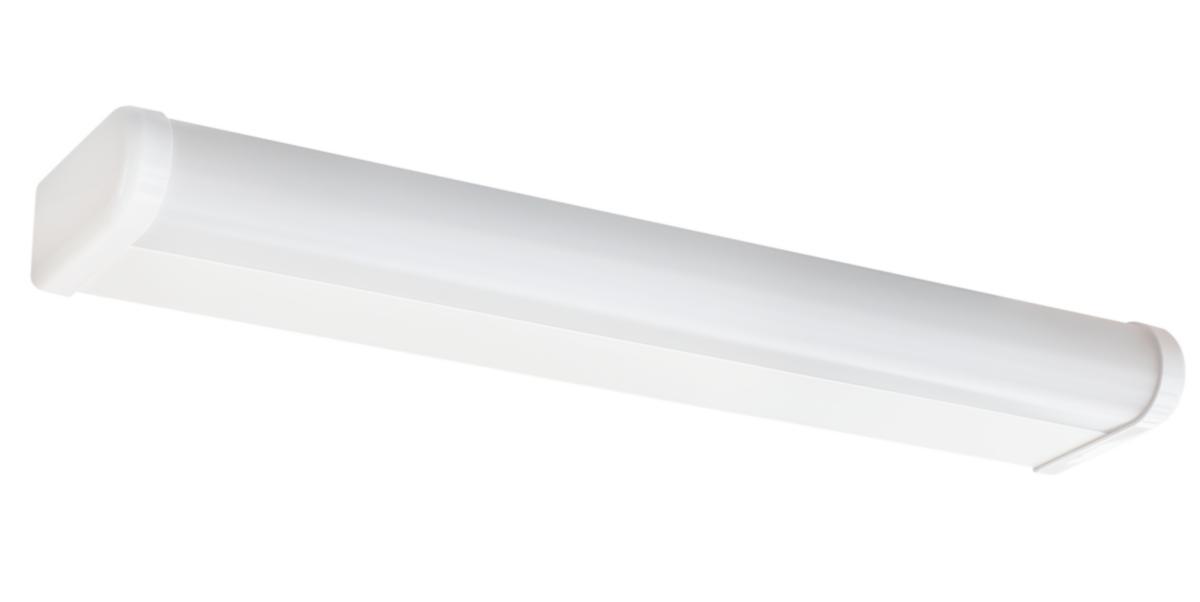

Bathroom luminaire Tvage, Bergdahls
TVAGE-15W-830-WHITE TVAGE-15W-830-VIT
Article number: Suppl. article no:
7013590
B5192
to see price and stock
Easy fitted bathroom luminaire with on / off function or PIR sensor and with or without 230V outlet. Cable entry on both back and top.
- Article number: 7013590
- Suppl. article no: B5192
- Material class QT0290
Technical data
- Design: On/Off
- Max. system power: 15 W
- Rated luminous flux according to IEC 62722-2-1: 1430 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Colour rendering index CRI: 80-89
- Length: 610 mm
- Width: 70 mm
- Height/depth: 115 mm
- Degree of protection (IP): IP44
- Dimming phase cut-off (trailing edge): No
- Lamp type: LED not exchangeable
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Material cover: Plastic, opal
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimmable: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Touch and Dim: No
- Dimming Zigbee: No
- Dimming phase cut-on (leading edge): No
- Dimming manufacturer's proprietary system: No
- Dimming potentiometer (integrated): No
- Dimming mains voltage modulation: No
- Dimming programmable: No
- Dimming Sine Wave Reduction: No
- Dimming with push-button: No
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Suitable for workplace according to EN 12464-1: No
- Covering of the luminaire with thermally insulating material possible: No
- Protection class according to IEC 61140: I
- Housing material: Aluminium
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 95 lm/W
- With movement sensor: No
- With air slots: No
- With light source: Yes
- With light sensor: No
- Nominal voltage: 220-240 V
- Type of wiring: Suitable for loop-through wiring
- Type of grid: None
- Beam angle: Extreme wide beam >80°
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2021-10-25
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
- Dimming GPRS: No
