Shelly

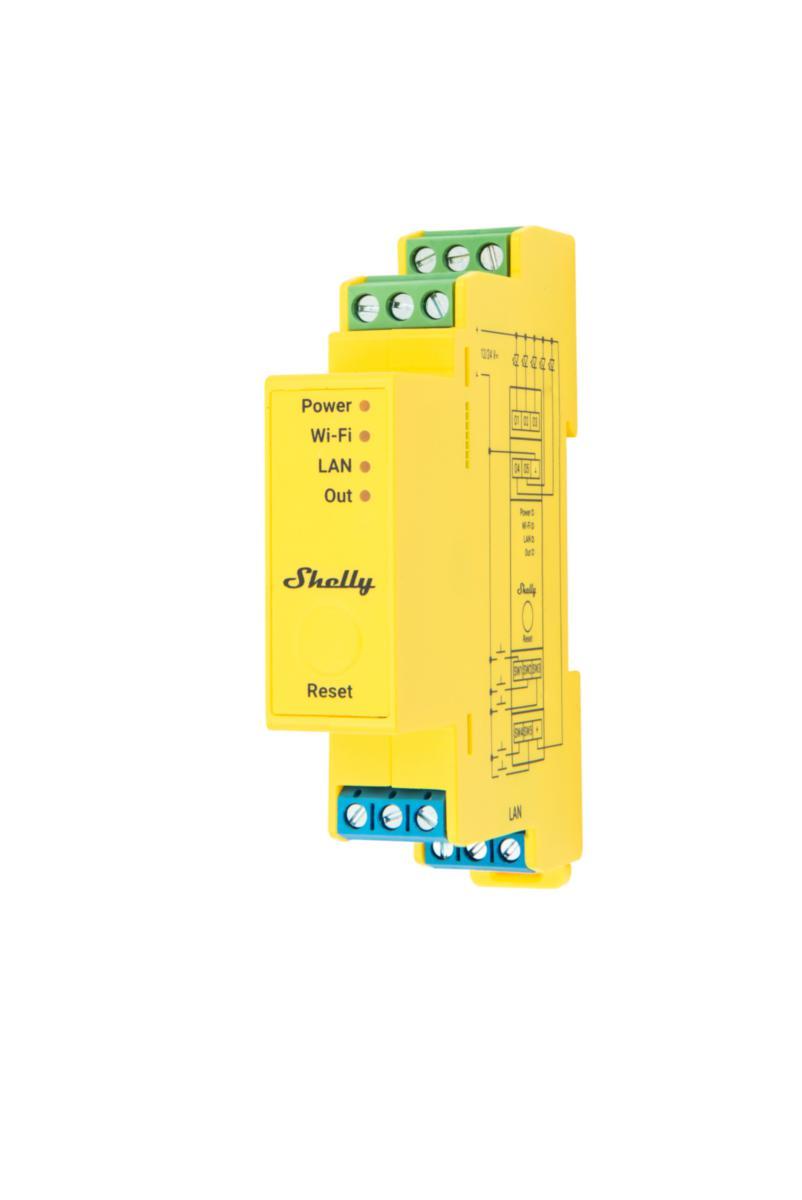

Relay Wifi Pro Shelly Gen3 with potential-free contact set

1 Gen3
Article number:
1302003
Suppl. article no:
3800235261767





 to see price and stock
Shelly 1 Gen3 is a WiFi-controlled 1-channel 16A relay with potential-free contact, intended for mounting behind switches, wall sockets or lamp sockets. It enables easy control and automation of lighting, garage doors, irrigation systems, bathroom fans and basically all existing electrical appliances Thanks to the compact design, it fits in most wall and ceiling boxes.

Shelly 1 Gen3 is easily configured and controlled via the Shelly Smart Control app or your preferred smart home or smart building system. Shelly devices work 100% locally and only require a local network to operate. Shelly can be used alone in the Shelly Smart Control app or with over 200 partner systems such as Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, Athom Homey and many more.

Shelly 1 Gen3 has many uses. It can be powered by 12V DC, 24-48V DC or 110-230V AC. With the potential-free contact, it is possible to operate the device with low voltage while connecting a 230V device to the relay or vice versa. The device has a simple switch input which is optional to use and which is fully programmable. This makes Shelly 1 Gen3 useful for many purposes, such as:
•Light control
•Control of bathroom fans
•Underfloor heating control
•Garage door control
•Management of irrigation systems
•SG-Ready heat pump control

All Shelly WiFi devices have a built-in web server, which means you get a wealth of features that always work. The built-in web server means that Shelly has built-in memory and therefore remembers sunrise, sunset, schedules and more, even when the network goes down. Relays and dimmers work like normal rocker relays and can therefore be used with your usual switches - even without internet. All inputs and outputs are fully programmable and only require local wifi to communicate between devices. However, we recommend having an active internet connection as it opens up even more features.
  • Article number:
    1302003
  • Suppl. article no:
    3800235261767
  • Ean no:
    3800235261767
  • Material class
    QH8921
Technical data
  • Number of outputs: 1
  • With bus connection: Yes
  • Bus system KNX: No
  • Bus system KNX Secure: No
  • Bus system KNX Secure-RF (Radio Frequency): No
  • Bus system KNX-RF (Radio Frequency): No
  • Bus system LON: No
  • Bus system Powernet: No
  • Bus system radio frequency: Yes
  • With LED indication: Yes
  • Model: Base module
  • Mounting method: Flush-mounted
  • Output voltage: 110-240 V
  • Other bus systems: Other
  • Operating voltage AC 50 Hz: 110-240 V
  • Width: 42 mm
  • Number of contacts as normally closed contact: 1
  • Height: 37 mm
  • Max. starting current: 16 A
  • Depth: 16 mm
  • Operating voltage DC: 12-24 V
  • REACH Date: 2024-09-24
  • Nominal current: 16 A
  • Operating voltage AC 60 Hz: 110-240 V
  • Rated control supply voltage AC 50 Hz: 110-240 V
  • Number of contacts as normally open contact: 0
  • Rated control supply voltage AC 60 Hz: 110-240 V
  • Rated control supply voltage DC: 12-24 V
  • Number of contacts as change-over contact: 0
  • Material contact: Other
  • Type of switch contact: Single contact
  • Complete with socket: Yes
  • REACH Information obligation: No
  • With forced-guided contacts: No
  • Type of electric connection: Screw connection
  • Material of contact surface: Other
  • With detachable clamps: No
  • Material of contact insert: Other
  • Voltage type for actuating: AC/DC
  • Voltage type (operating voltage): AC/DC
