Tillex

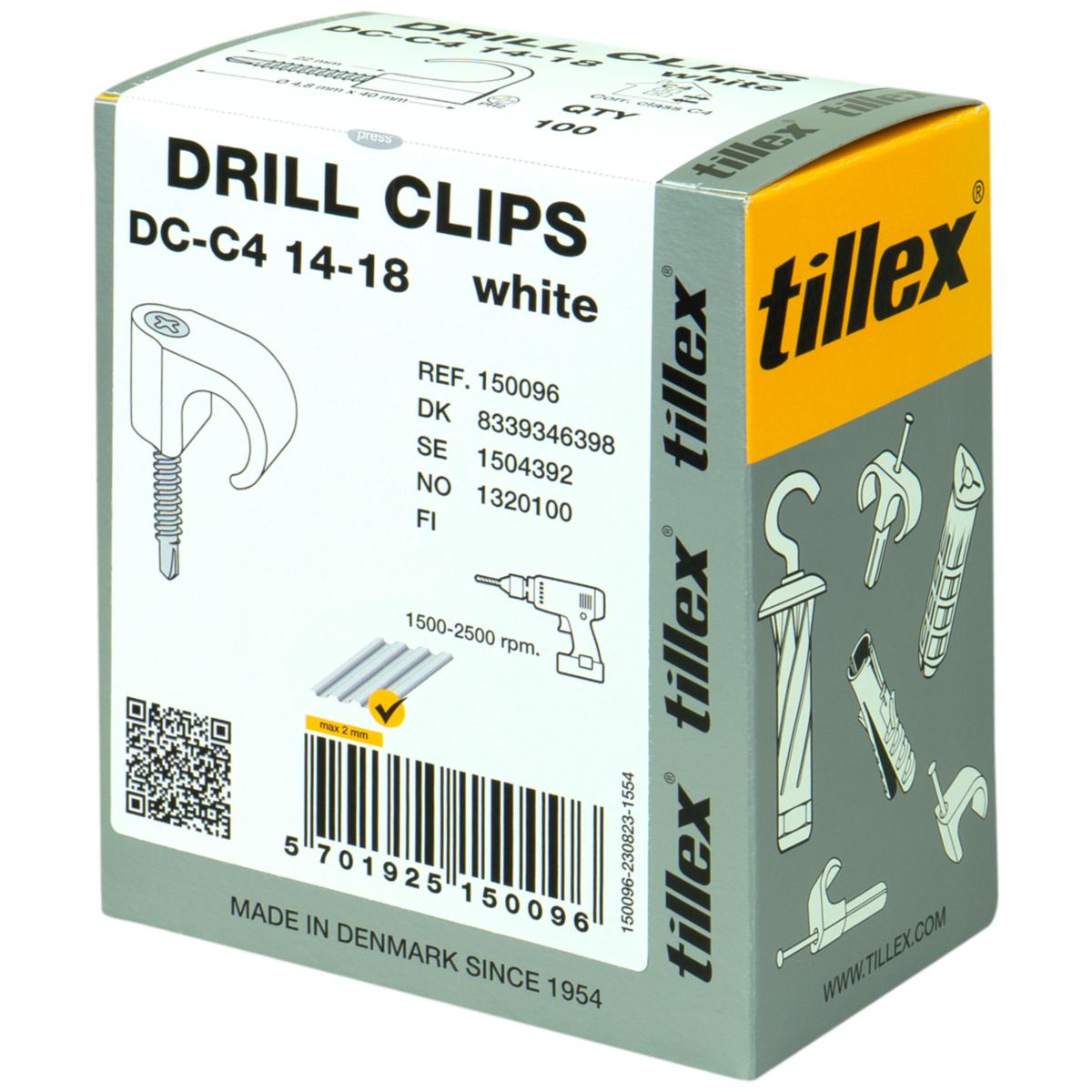

Screw clamp DC with plate screw PH2 C4
DRILLCLIPS DC 14-18 WHITE PH2
Article number: Suppl. article no:
1504392
150096
to see price and stock
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shb.jpg)
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)

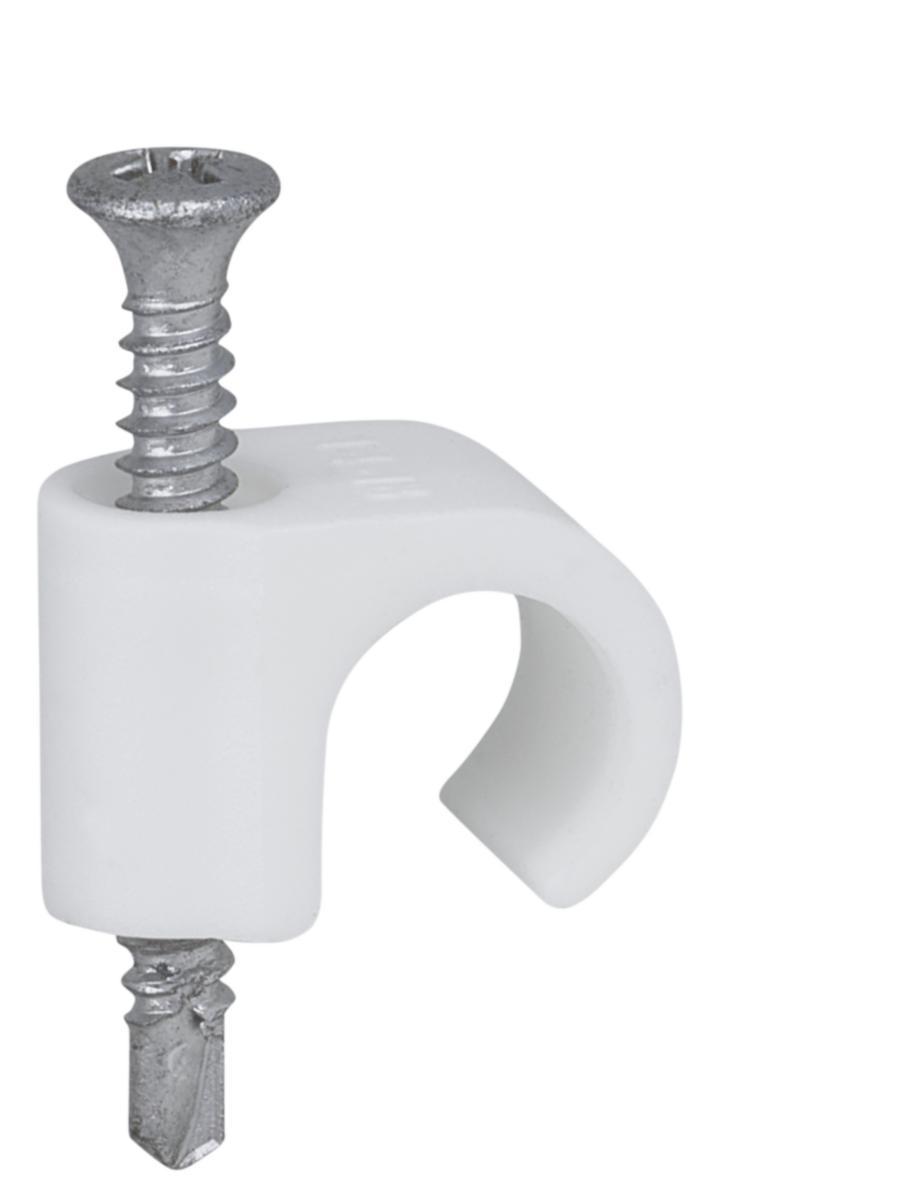

Tillex PlatClips (Drillclips) are impact-resistant elastic Polypropylene that is halogen-free and UV-resistant in high quality from the factory in Denmark. For round cables. Strong screw 4.8x40mm with drill tip, which makes it suitable for assembly directly in sheet metal max 2.0mm, recommended speed: 1500-2500/min. Equipped with Philips cross groove PH2. (Also available with Torx T20). Corrosivity class C4, which provides high protection outdoors.
- Article number: 1504392
- Suppl. article no: 150096
- Ean no: 5701925150096
- Material class QE8350
Technical data
- Packagin Size: 1 Pack/10 Pack
- Suitable for diameter: 14-18 mm
- Type of fastening: Screw
- Fastening depth: 22.3 mm
- With nail: No
- With screw: Yes
- Screw length: 40 mm
- Screw diameter: 4.8 mm
- Screwing system: Phillips PH
- Surface protection: Other
- Width opening: 9 mm
- Height opening: 12 mm
- Shape: Round
- Colour: White
- Material: Other
- Double model: No
- Material quality: Other
- Pipe locking: No
- Transparent: No
- REACH Date: 2019-09-01
- REACH Information obligation: No
