Schneider Electric

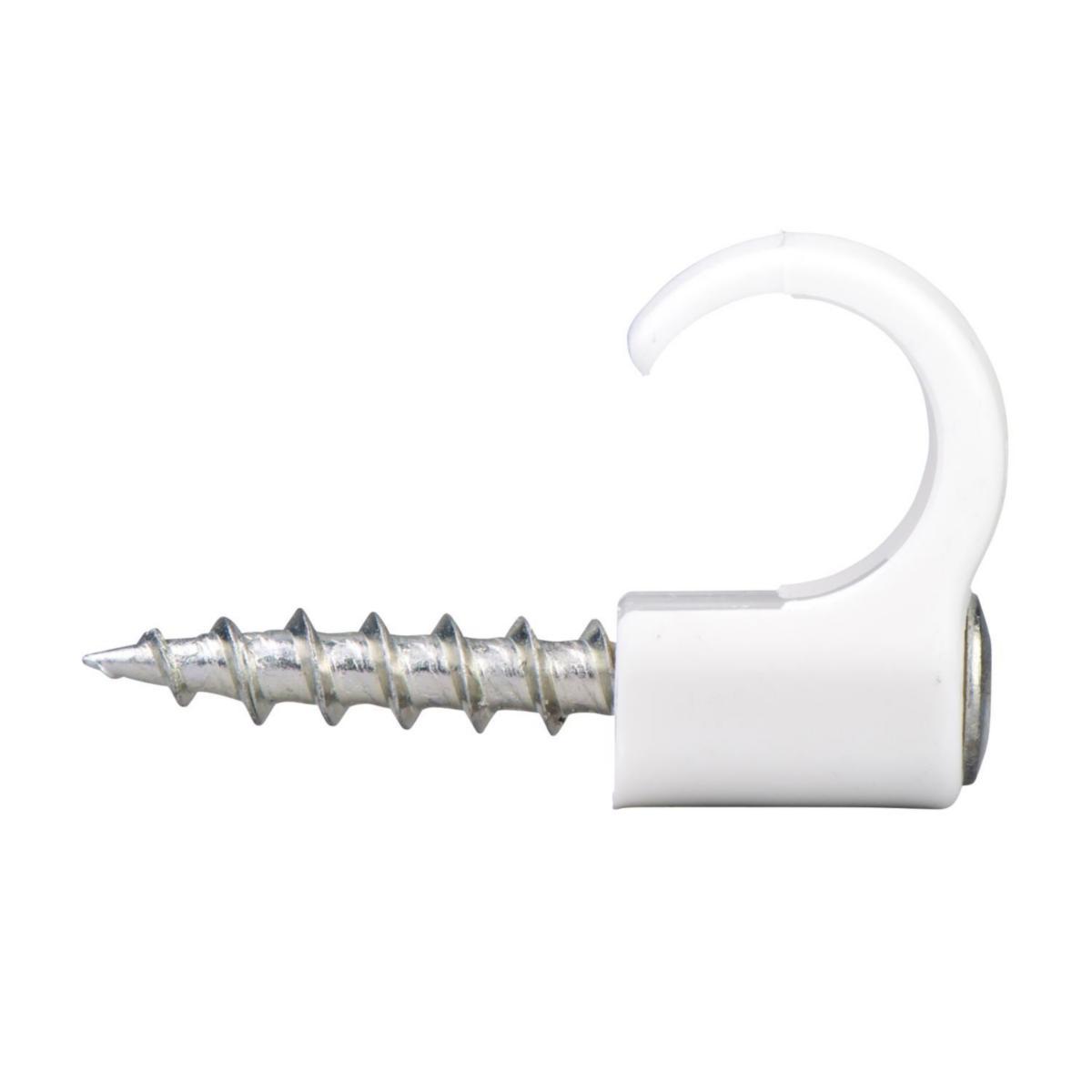

Screw clamp TCS-X-C3 SECOR with Torx T20-slot

SCREW CLIPS TCS-X-C3 14-18 WH 100 PCS
Article number:
1504185
Suppl. article no:
2191040





 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Clips for round cables with pre-assembled screws made of tempered steel with a surface coating of iron/zinc to cope with corrosion Class C3. Strong screw with a sharp point and a T20 track. Suitable for mounting directly on double plaster, wood and composite plywood and light concrete with a screw plug. The product is used for clamping of PVC pipe 16 and 20 mm inside the drywall with two layers of 13 mm plasterboard. TCS-X-C3 SECOR with T20-screw is suitable for use in hard material such as hardwoods and can be installed directly into the concrete using an pre-drilled 4.0 mm hole, without plug. Can cope with an environmental type C3 (outdoor).
  • Article number:
    1504185
  • Suppl. article no:
    2191040
  • Ean no:
    7332418019422
  • Material class
    QE810A
Technical data
  • Packagin Size: 1 FRP/10 FRP/10 FRP/630 FRP
  • Suitable for diameter: 14-18 mm
  • With nail: Yes
  • Nail length: 38 mm
  • Nail diameter: 5 mm
  • Surface protection: Untreated
  • Shape: Round
  • Colour: White
  • Hardened steel nail: No
  • Material: Plastic
  • Double model: No
  • Corrosiveness class: C3
  • Product series: Thorsman
  • REACH Date: 2022-07-20
  • REACH Information obligation: No
