Pipelife
Armoured pipe OMG, threaded FZV
16X3 GALV PIPES THREADED
Article number: Suppl. article no:
1405011
70002806
to see price and stock

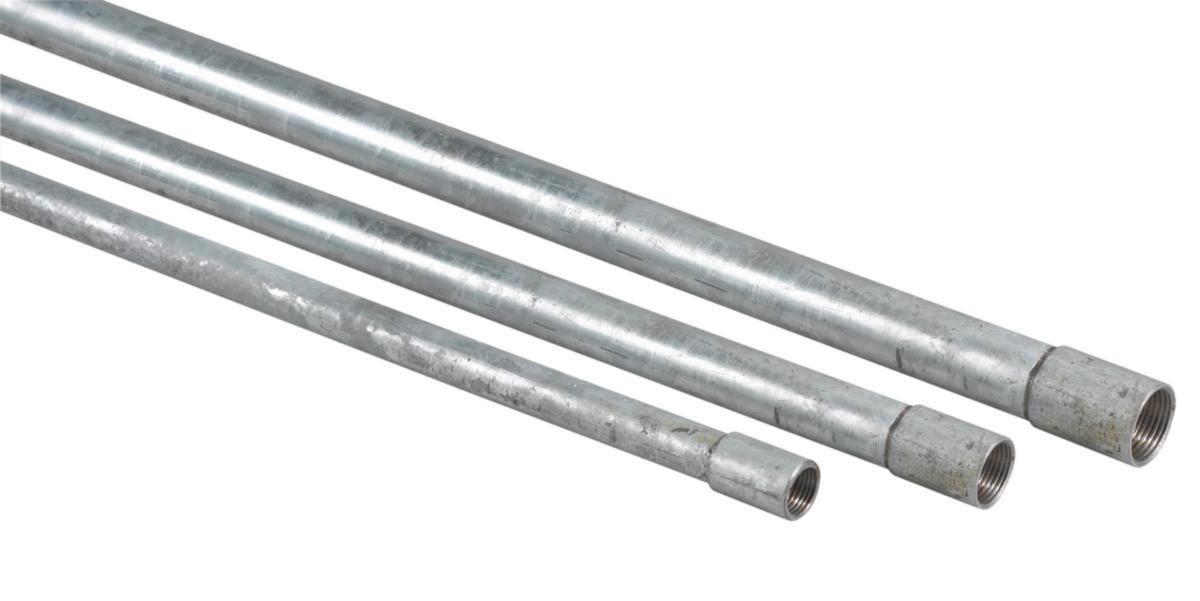

Product description: Hot-dip galvanised threaded armoured conduit for very high durability requirements,
threaded ends, with sleeve screwed on, limited cold bending
Can be cast in.
Rigidity class: 4000 N
Colour: Zinc plated, grey
Thread: Metric fine thread, pitch 1.5 mm
Temperature range: -45 to +400°C
threaded ends, with sleeve screwed on, limited cold bending
Can be cast in.
Rigidity class: 4000 N
Colour: Zinc plated, grey
Thread: Metric fine thread, pitch 1.5 mm
Temperature range: -45 to +400°C
- Article number: 1405011
- Suppl. article no: 70002806
- Ean no: 9010459112262
- Material class QE2800
Technical data
- Packagin Size: 3 M
- Surface brushed: No
- Suitable for underfloor installation (bitumen, hot asphalt): Yes
- Outer diameter: 16 mm
- Inner diameter: 13 mm
- Length: 3000 mm
- Material: Steel
- Material quality: Other
- Operating temperature: -45-400 °C
- Surface protection: Hot-dip galvanised
- Suitable for installation on wood: Yes
- Quality of surface coating: Galvanic zinc coated
- Surface polished: No
- Suitable for underfloor installation (screed): Yes
- Machine and systems installation: Yes
- Surface mounting: Yes
- Suitable for outdoor installation: Yes
- Suitable for concrete installation: Yes
- REACH Date: 2021-06-15
- Compressive strength class: Extra heavy (class 5)
- REACH Information obligation: No
