Junction box white IP66, with terminal block - Damp area distr.box w.terminal
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/28/24/ProductImage77732824.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/28/25/ProductImage77732825.jpg
Eldon Installation

Junction box white IP66, with terminal block

Damp area distr.box w.terminal
Article number:
1438685
Suppl. article no:
KPLB425V





 to see price and stock

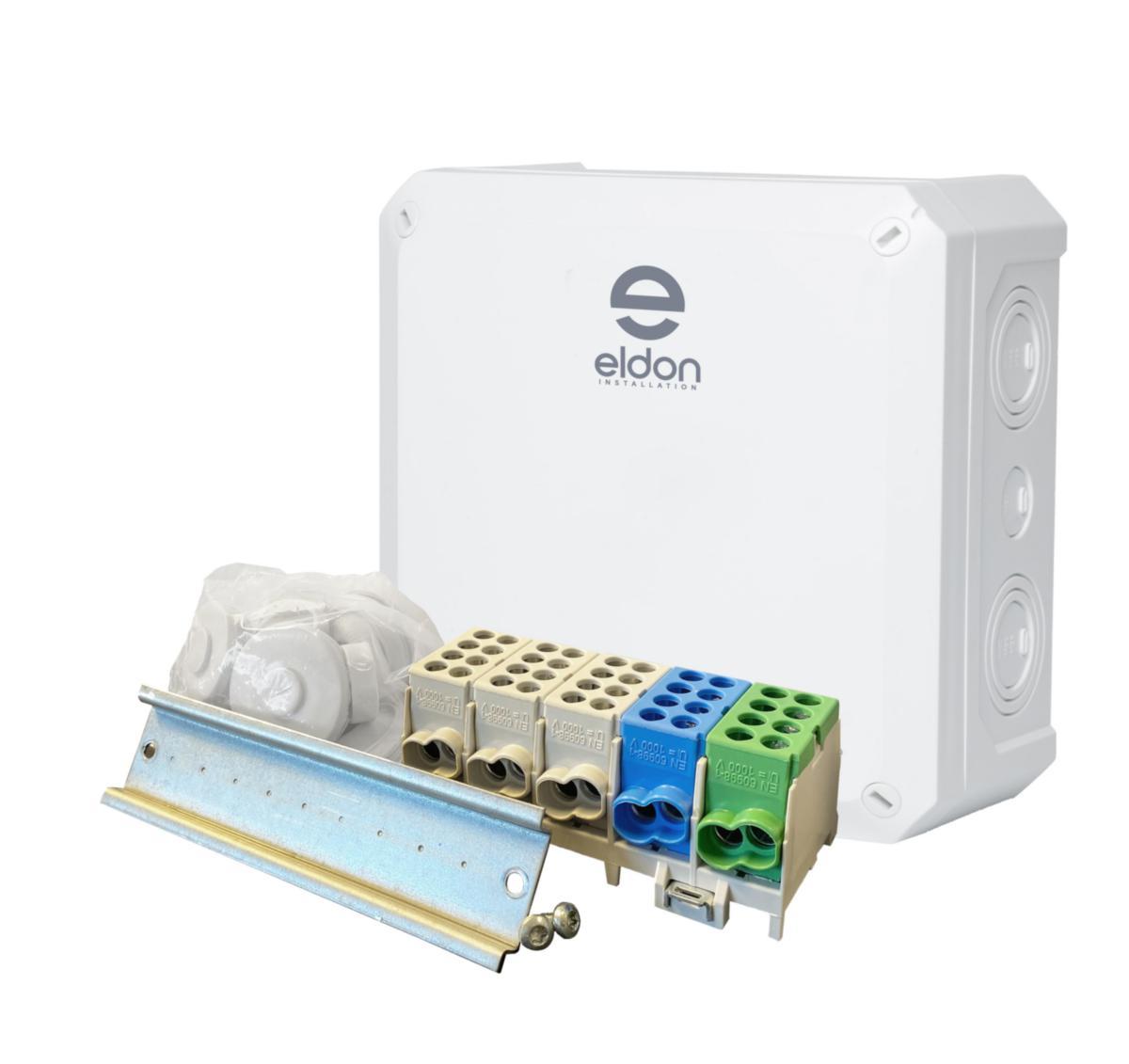

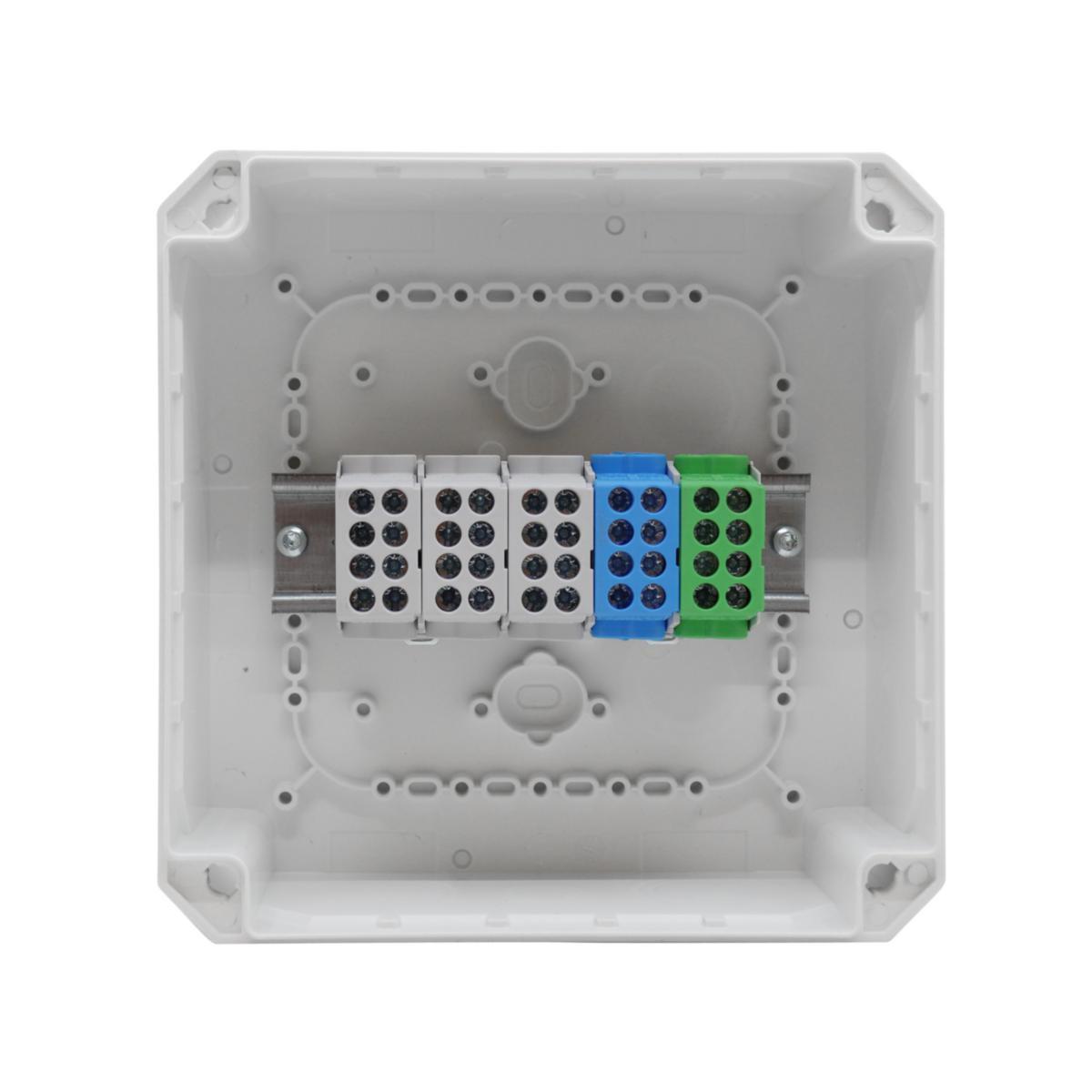

Robust and waterproof, IP66, junction box/box. Supplied with a 5-pole terminal block with 4 connections/pole for 1.5-25mm² Cu or Al and a DIN rail. Can be used as a riser box for easy and safe distribution of riser cables both indoors and outdoors. White color on the housing and sealable lid that has a quarter-turn plastic screw. Knock-outs on the sides for 5xM40/32/25, 5xM32/25, 2xM25/20 and 2xM20. The bottom part has knock-outs for 2XM32/25. Includes double membrane grommets, 2x M20, 2x M25 and 3x M32. The housing can be attached to the wall via oval internal mounting holes or with the included external brackets. Certified according to VDE, CE marked.
  • Article number:
    1438685
  • Suppl. article no:
    KPLB425V
  • Ean no:
    7333189024264
  • Material class
    QE590B
Technical data
  • Type: KPLB425V
  • Number of inlets: 14
  • Max. conductor cross section: 25 mm²
  • Width: 180 mm
  • Length: 180 mm
  • Depth: 93 mm
  • Equipped with: Screwed terminal
  • Colour: White
  • Casting compound included: No
  • Castable: No
  • Material: Plastic
  • Mounting under water: No
  • Mounting in the soil: No
  • For tube diameter: 40 mm
  • With screening: No
  • Shape: Square
  • Inlet from the rear: Yes
  • Type of housing feed-through: Preembossing
  • Mounting method: Wall-/ceiling mounting
  • Degree of protection (IP): IP66
  • Halogen free: Yes
  • Weatherproof: Yes
  • Cover model: Other
  • Cover attachment: Bayonet latch
  • Operating temperature: -20-70 °C
  • Sealable: Yes
  • Surface protection: Other
  • Explosion-tested version: No
  • Rated insulation voltage Ui: 690 V
  • Transparent cover: No
  • Circuit integrity: None
  • With strain relief: No
  • Model: Junction box
  • REACH Date: 2024-08-08
  • REACH Information obligation: No
