ABB
Junction box AP 45 IP65
Junction box AP45 IP65 Grey
Article number: Suppl. article no:
1438514
2TKA00005253
to see price and stock
To shop with us, you need a registered company and a customer number.

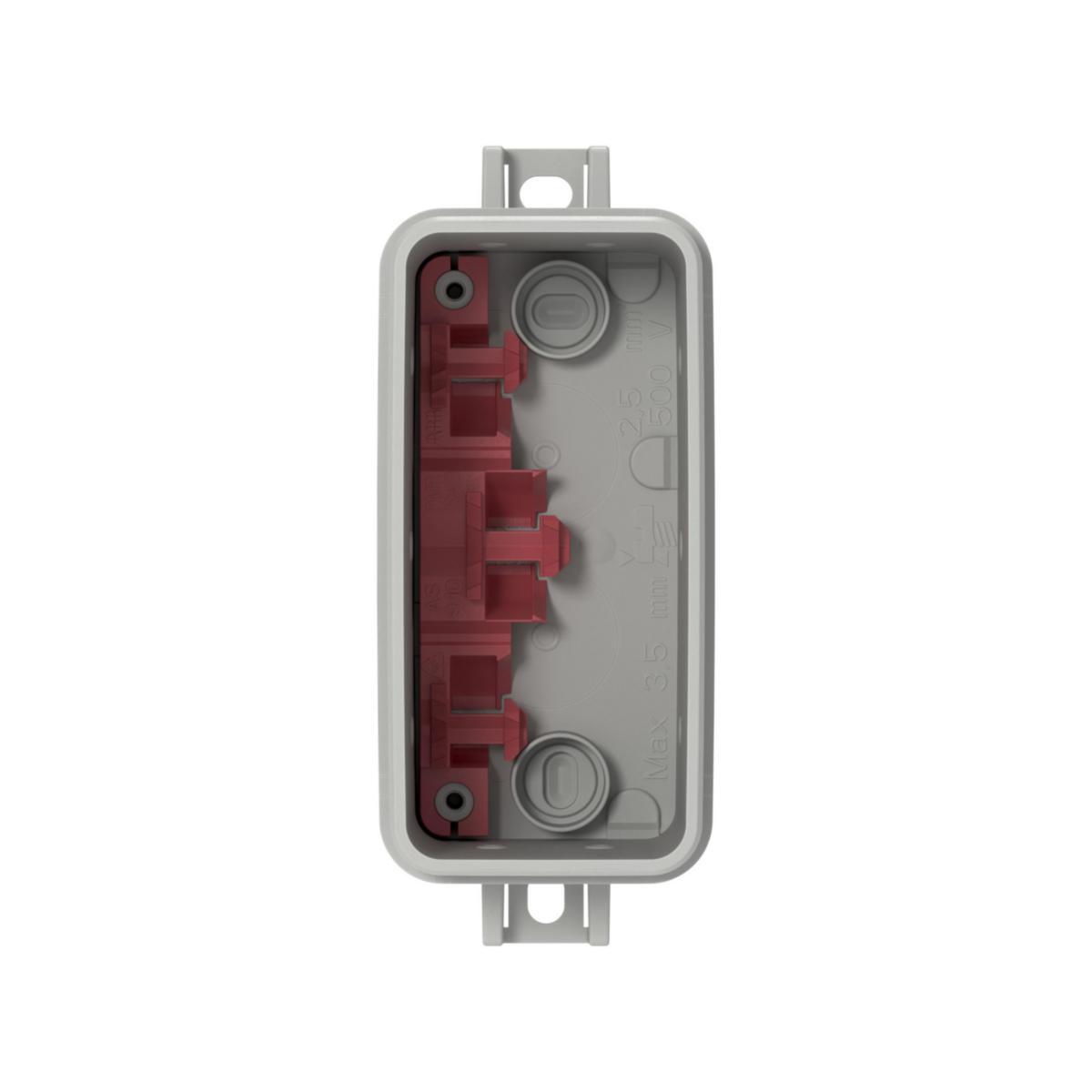

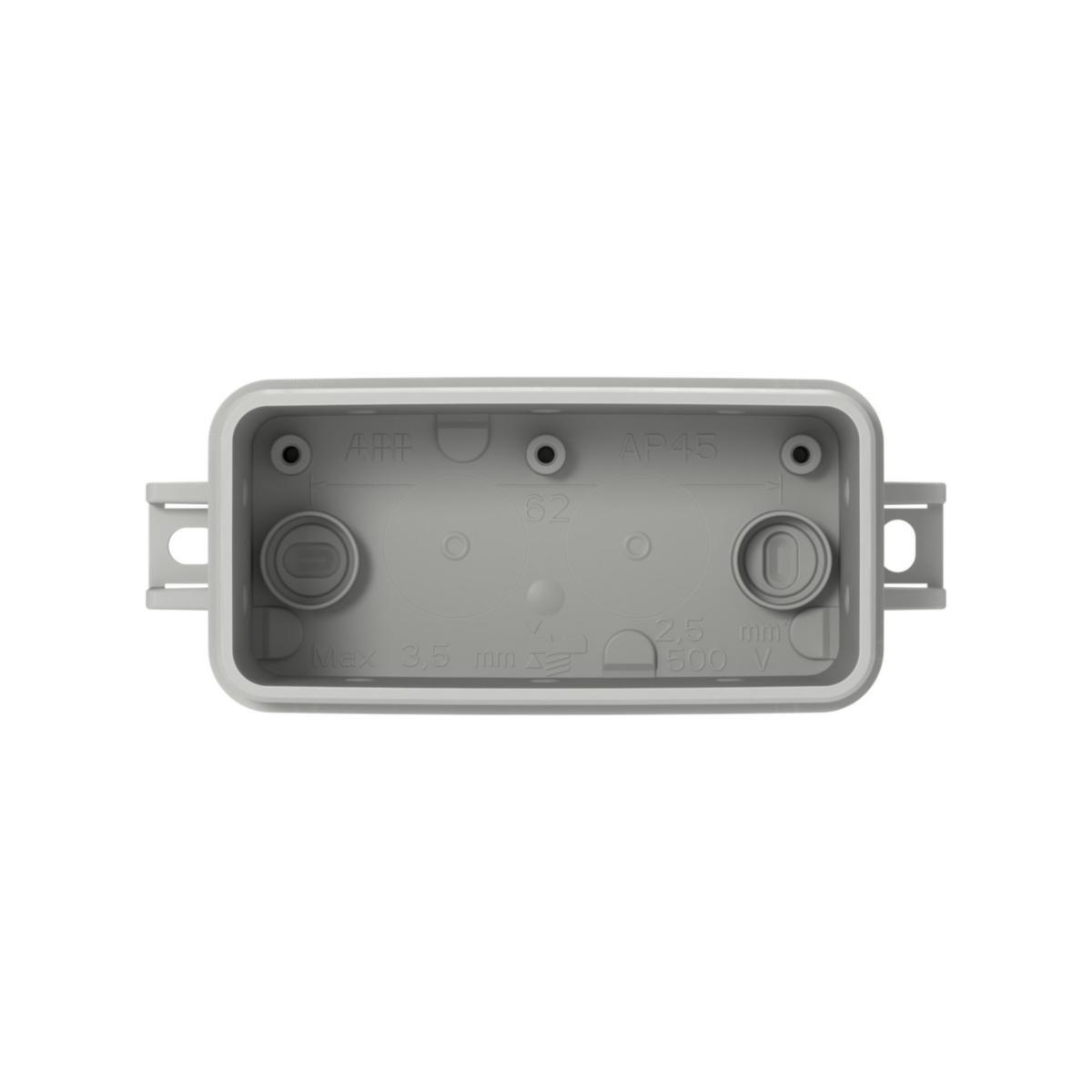

The two-component junction box is equipped with built-in "throttling nipples"; 12 entries in the sides and 2 in the bottom. You insert the cable by pushing the cable ends through the membrane. For cables max. Ø 17 mm. The box closes with a push on each corner of the lid (snap-on). If necessary, the cover can be opened by slightly turning with a screwdriver under the edge. The box can be equipped with strain relief and 5-pole terminal AS9. Made of halogen-free material (IEC/61249-2-21)
- Article number: 1438514
- Suppl. article no: 2TKA00005253
- Ean no: 6438199012575
- Material class QE7010
Technical data
- Packagin Size: 1 PCS/24 PCS/240 PCS/2880 PCS
- Type: AP45G
- Number of inlets: 12
- Max. conductor cross section: 2.5 mm²
- Width: 43 mm
- Length: 105 mm
- Depth: 40 mm
- Equipped with: None
- Colour: Grey
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- With screening: No
- Shape: Rectangular
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Universal
- Degree of protection (IP): IP65
- Halogen free: Yes
- Weatherproof: Yes
- Cover attachment: Snapped on
- Operating temperature: -25-60 °C
- Sealable: Yes
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 500 V
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2023-03-20
- REACH Information obligation: No
