ABB

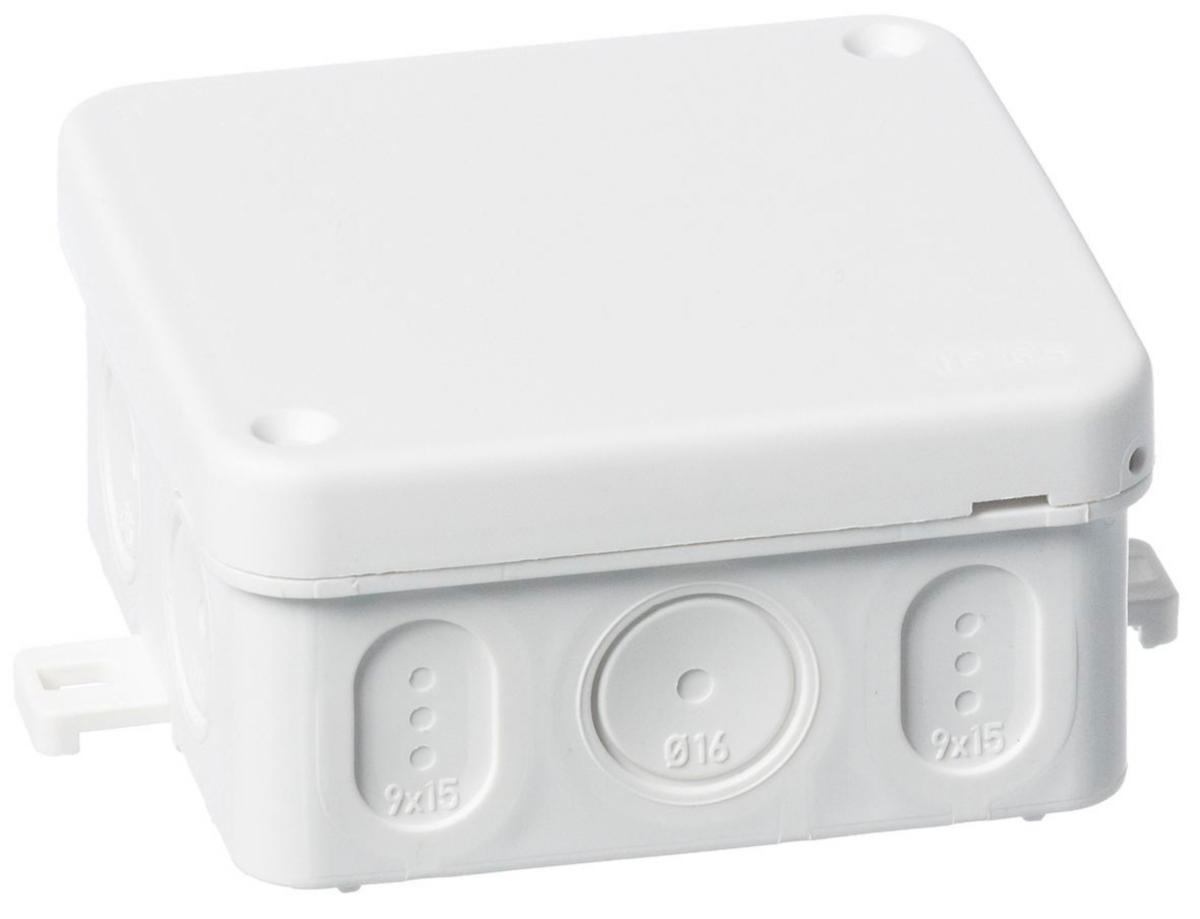

Junction box AP75, IP65 ABB
JUNCTION BOX AP75 IP65 AP75
Article number: Suppl. article no:
1438410E
2TKA140010G1
to see price and stock
Junction box AP7 (6 mm², 400 V), enclosure class IP 44 is equipped with fixed cable glands of the soft membrane type, 10 in the sides and two in the bottom. For cables max. Ø 17. Insert the cable by pushing through the diaphragm with the peeled cable ends. the lid is fastened with two screws, distance 78 mm. The box can be equipped with strain reliefs AS9, AS9.1 and AS9.3. Made of halogen-free material (IEC / 61249-2-21).
- Article number: 1438410E
- Suppl. article no: 2TKA140010G1
- Ean no: 6410016125200
- Material class QE701A
Technical data
- Packagin Size: 1 ST/5 ST
- Number of inlets: 13
- Max. conductor cross section: 2.5 mm²
- Width: 75 mm
- Length: 75 mm
- Depth: 38 mm
- Equipped with: None
- Colour: White
- Casting compound included: No
- Castable: No
- Material: Plastic
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Universal
- Degree of protection (IP): IP65
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Blind cover
- Cover attachment: Snapped on
- Operating temperature: -15-60 °C
- Sealable: Yes
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 400 V
- Transparent cover: No
- Circuit integrity: None
- REACH Date: 2021-04-30
- REACH Information obligation: No
