Spelsberg

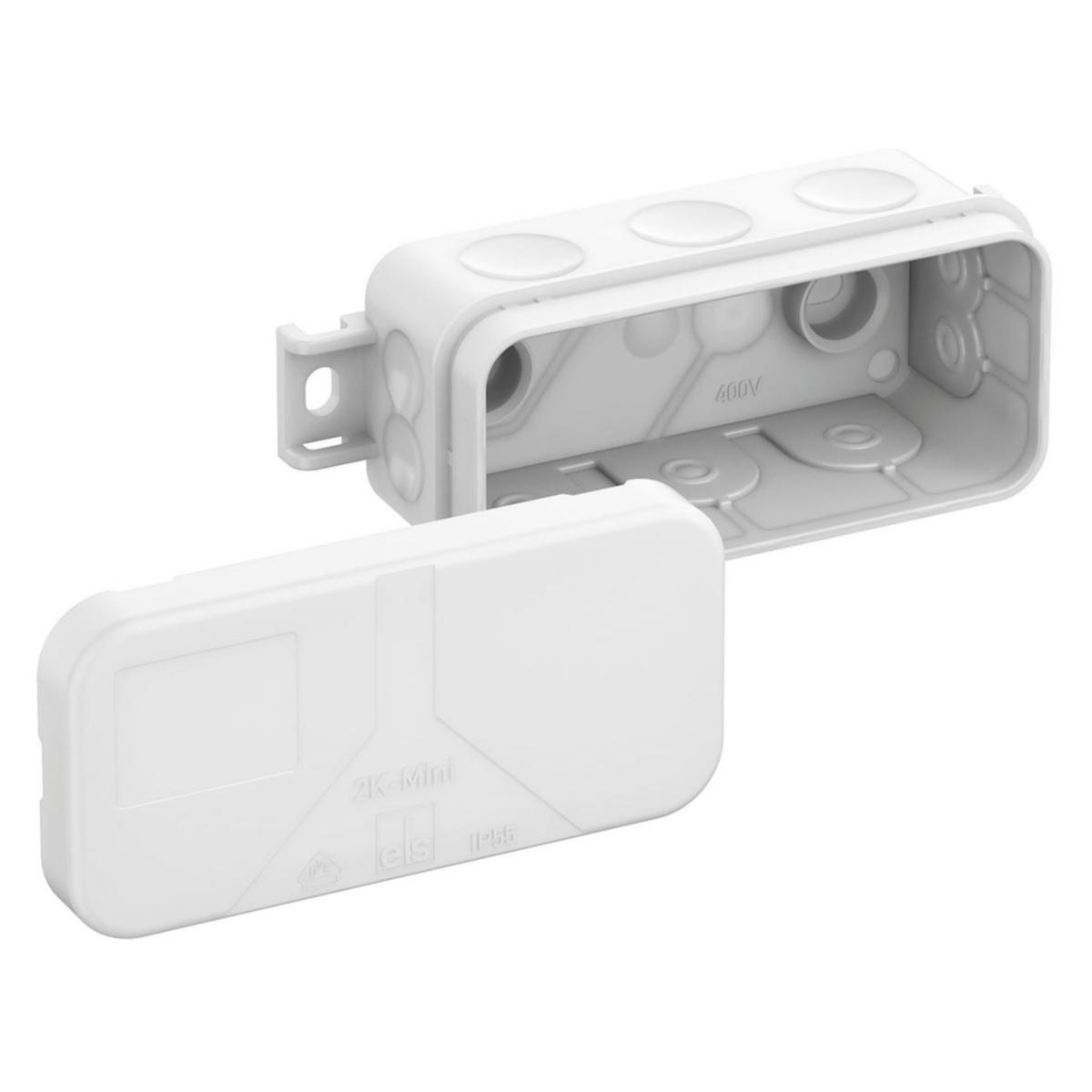

Junction box 2K-Mini
2K-MINI AB-L/W 2K-MINI AB-L/W
Article number: Suppl. article no:
1438356
34560801
to see price and stock
Junction box IP 55 according to DIN EN 60670 (VDE 0606), 10 inserts, a bottom penetration, self-sealing soft lead-through membranes, toolless lead-through, cable diameter 2 - 10 mm, with outer mounting ears
- Article number: 1438356
- Suppl. article no: 34560801
- Ean no: 4013902642519
- Material class QE703A
Technical data
- Packagin Size: 1 ST/60 ST
- Number of inlets: 12
- Max. conductor cross section: 2.5 mm²
- Width: 43 mm
- Length: 89 mm
- Depth: 38 mm
- Equipped with: None
- Colour: White
- Casting compound included: No
- Castable: Yes
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- With screening: No
- Shape: Rectangular
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP55
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Mounting cover
- Cover attachment: Snapped on
- Operating temperature: -25-40 °C
- Sealable: No
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 400 V
- Transparent cover: No
- Circuit integrity: None
- REACH Date: 2021-10-13
- REACH Information obligation: No
