Schneider Electric

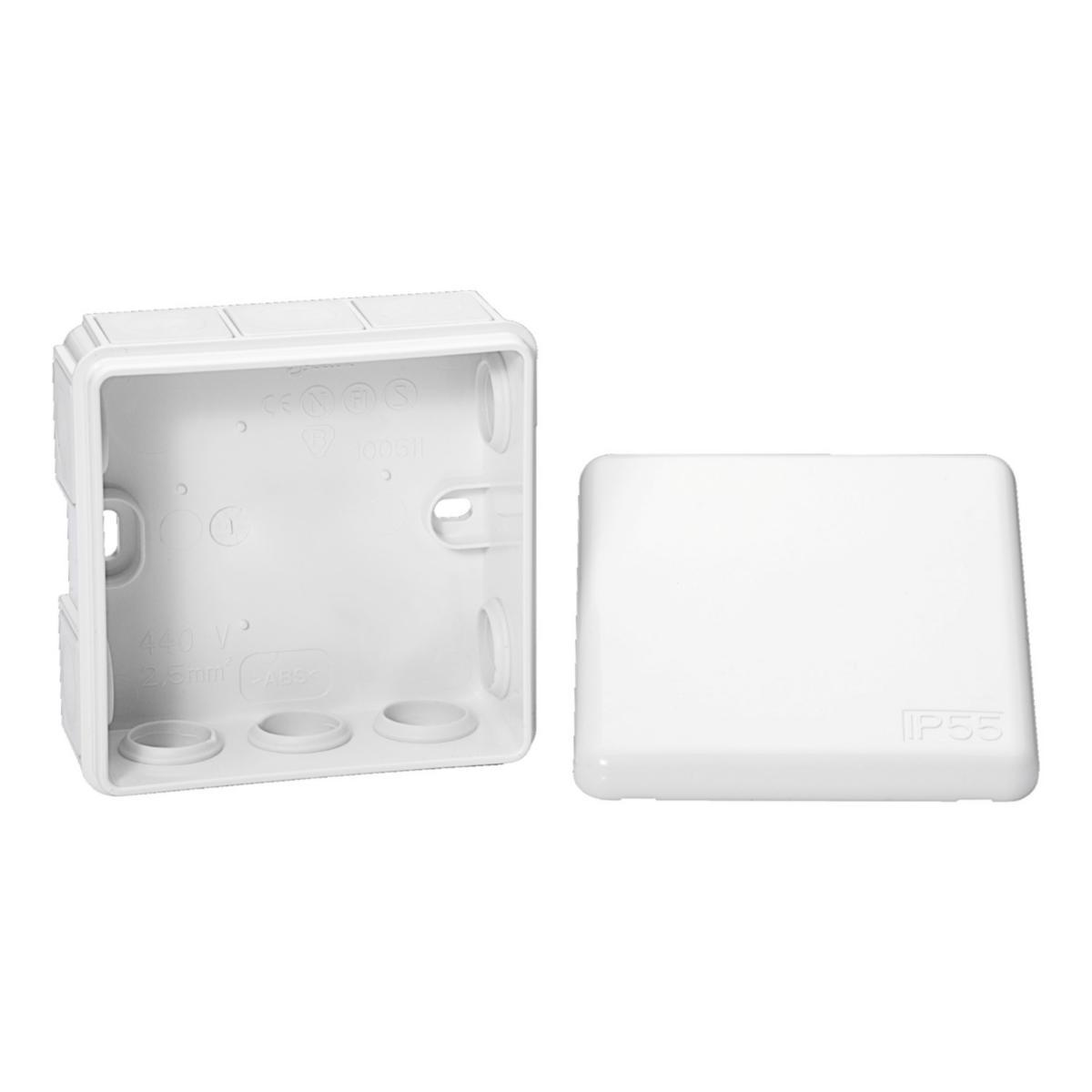

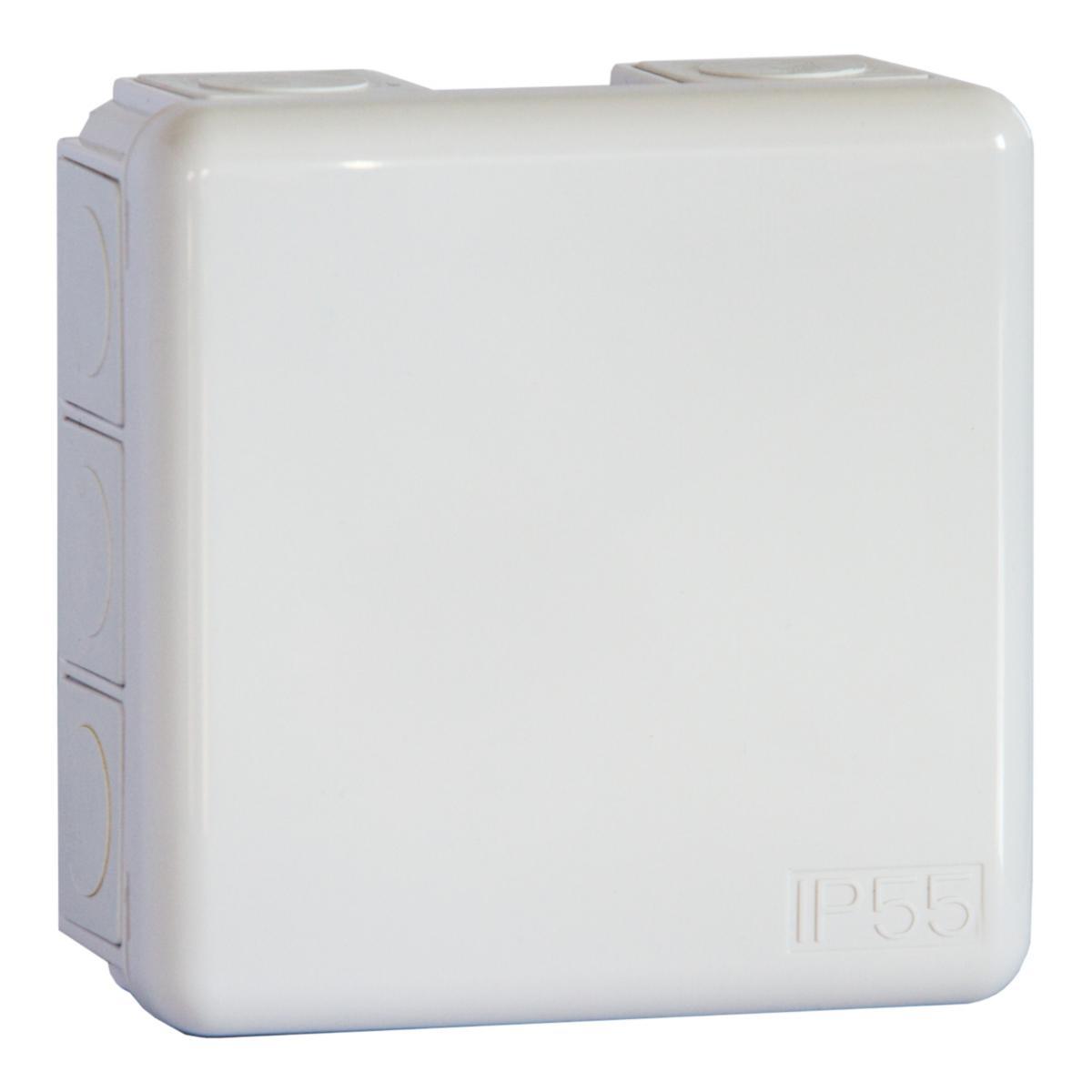

Junction box U-56 with snap cover Schneider
U56 JUNCTBOX WHITE CLICK-LID IMT34128
Article number: Suppl. article no:
1438248
IMT34128
to see price and stock
Enclosed junction box U-56 for surface mounting
with quick attachment of “click-lock" type 440V.
Has a total of ten nipples for cable entries and two break-outs in the bottom for cable entries from the rear.
with quick attachment of “click-lock" type 440V.
Has a total of ten nipples for cable entries and two break-outs in the bottom for cable entries from the rear.
- Article number: 1438248
- Suppl. article no: IMT34128
- Ean no: 3606481158178
- Material class QE6702
Technical data
- Packagin Size: 1 PCS/5 PCS/150 PCS/2400 PCS
- Number of inlets: 10
- Max. conductor cross section: 0 mm²
- Width: 87 mm
- Length: 87 mm
- Depth: 39 mm
- Equipped with: Other
- Colour: White
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- Diameter: 14 mm
- For tube diameter: Other
- With screening: No
- Shape: Square
- Inlet from the rear: No
- Type of housing feed-through: Trimmable step membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP55
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: Yes
- Cover model: Blind cover
- Cover attachment: Screwed
- Operating temperature: -25-40 °C
- Sealable: No
- Surface protection: Other
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 440 V
- Transparent cover: No
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2022-07-20
- REACH Information obligation: No
