Schneider Electric

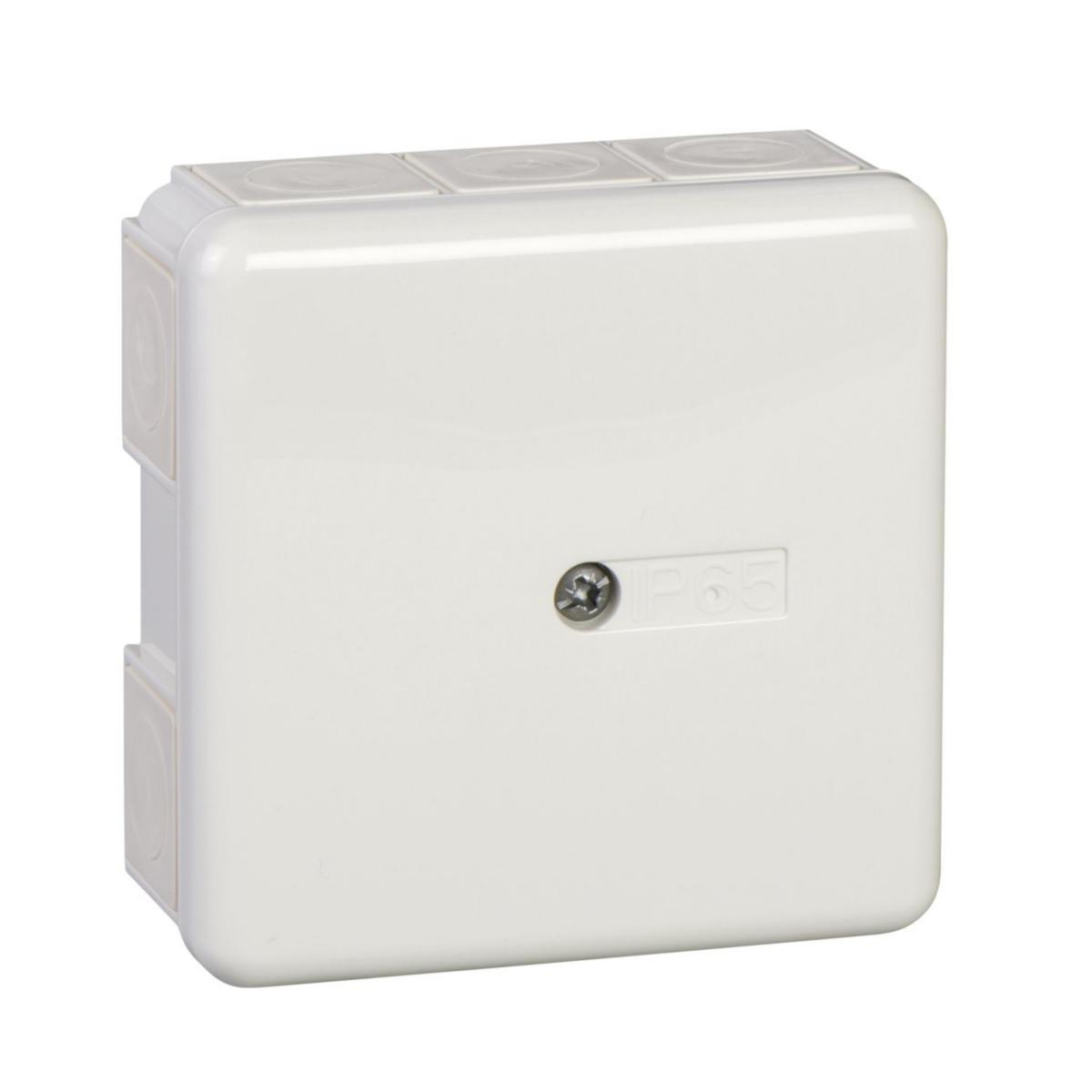

Junction box, U56 fire-classified UL94, Schneider Electric
U56 JUNCTBOX WHITE FIRE-RES 5P IMT34127
Article number: Suppl. article no:
1438239
IMT34127
Normally in stock
to view the store status of the store
to see price and stock

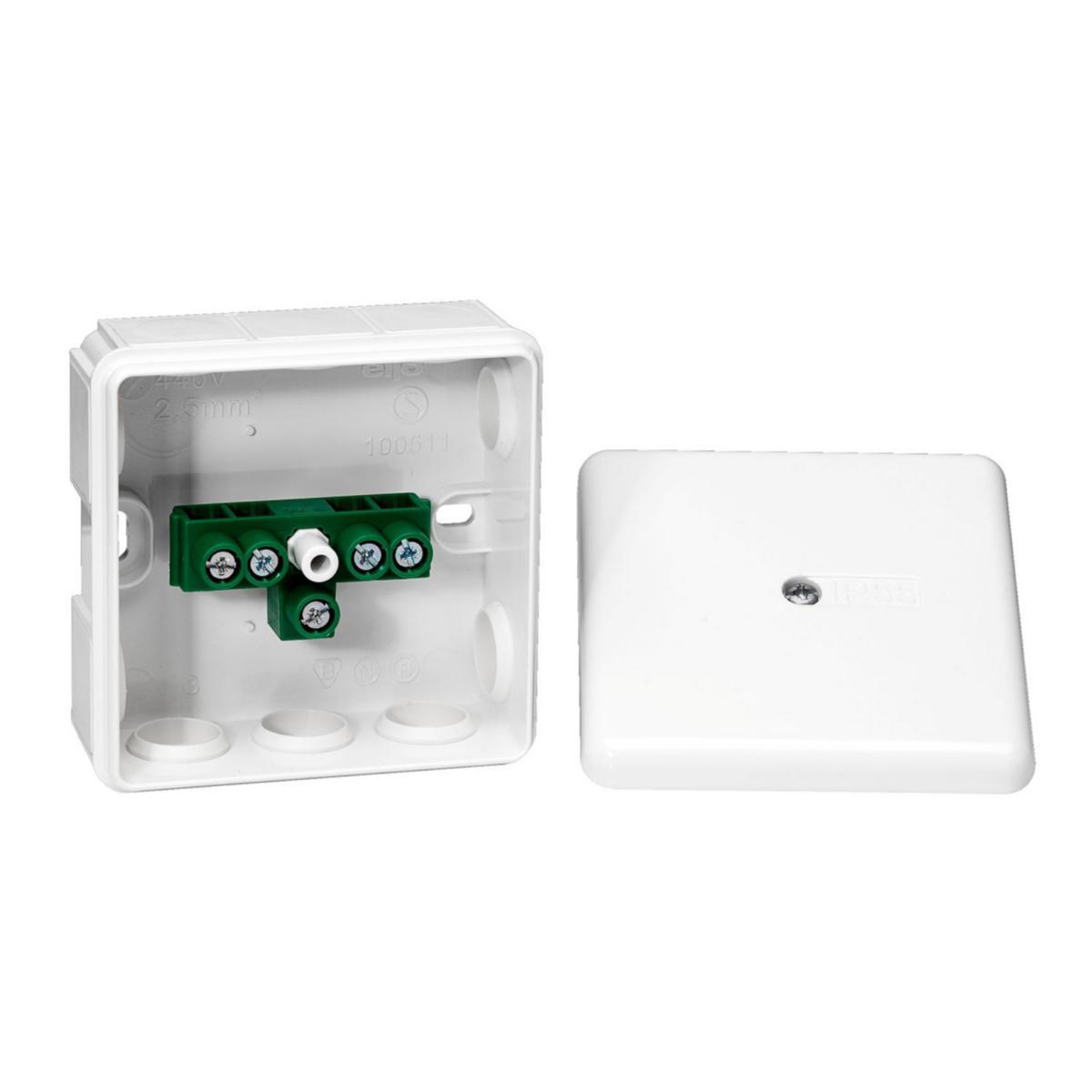

Surface mounted coupling box with screwed lid and 5-pole connection block of screw type. Fire classed in accordance with UL 94 V0.. with 10 bushings for cables up to Ø 14 mm.
- Article number: 1438239
- Suppl. article no: IMT34127
- Ean no: 3606481158161
- Material class QE6700
Technical data
- Packagin Size: 1 ST/5 ST/5 ST
- Number of inlets: 10
- Width: 87 mm
- Length: 87 mm
- Depth: 39 mm
- Equipped with: Other
- Colour: White
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- Diameter: 14 mm
- For tube diameter: Other
- With screening: No
- Shape: Square
- Inlet from the rear: No
- Type of housing feed-through: Trimmable step membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP55
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: Yes
- Cover model: Blind cover
- Cover attachment: Screwed
- Operating temperature: -25-40 °C
- Sealable: No
- Surface protection: Other
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 440 V
- Transparent cover: No
- Circuit integrity: None
- REACH Date: 2022-07-20
- GWP-tot (A1-A3): 4,2588 kgCO2e/ST
- REACH Information obligation: No
