Spelsberg
Junction box A-Box IP-65 with 5-pole terminal 5x32 mm², Spelsberg

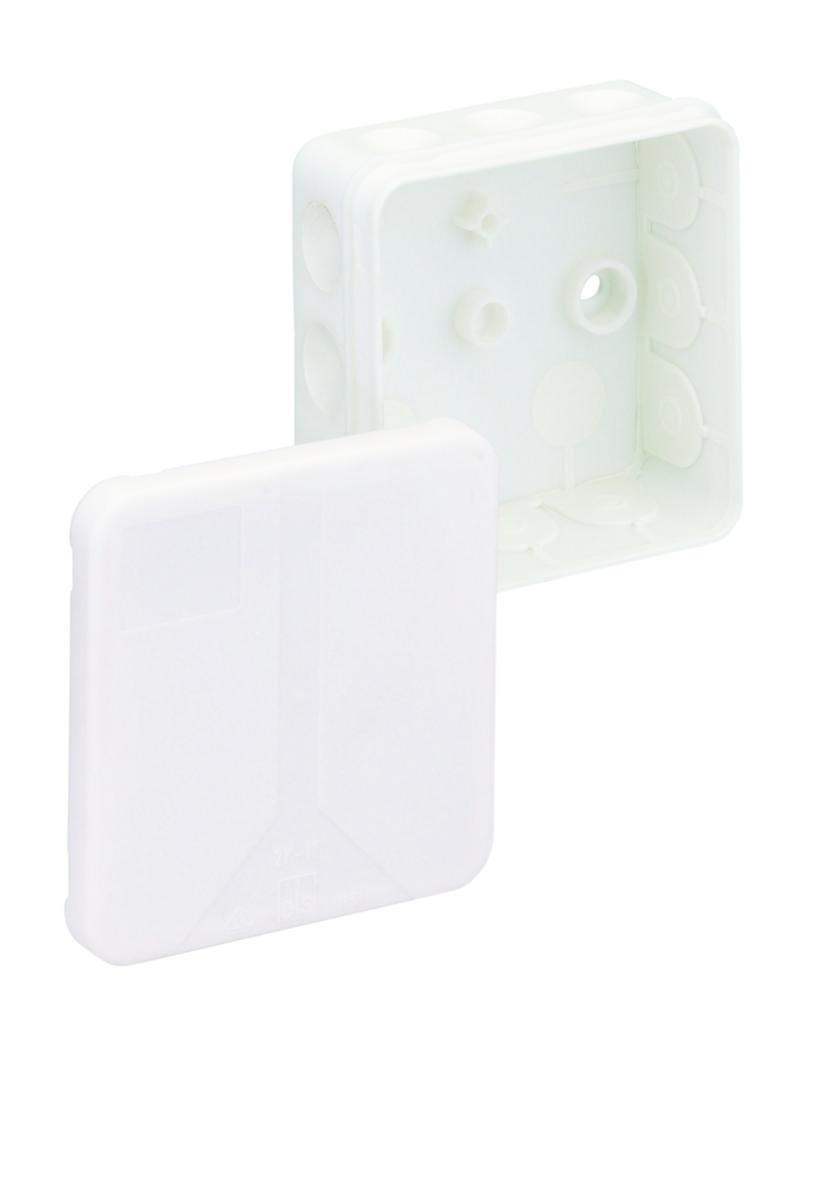

JUNCTION BOX 2K-12-L/W 2K-12-L/W
Article number: Suppl. article no:
1438110
34461201
to see price and stock
To shop with us, you need a registered company and a customer number.
Junction box 2K Junction box according to DIN EN 60670 (VDE 0606) with self-sealing, soft insertion diaphragm, Tools not required to open the pipe insertion, Sealing diameter 2 - 14 mm, with internal attachment points, with protection class IP55, up to 2.5², with degree of protection IK07, Protection class II, VDE-approved, Halogen-free without terminal block, for VDE approval
- Article number: 1438110
- Suppl. article no: 34461201
- Ean no: 4013902020997
- Material class QE7030
Technical data
- Packagin Size: 1 ST/10 ST/60 ST
- Number of inlets: 12
- Max. conductor cross section: 2.5 mm²
- Width: 85 mm
- Length: 85 mm
- Depth: 37 mm
- Equipped with: Clamp
- Colour: White
- Casting compound included: No
- Castable: Yes
- Material: Plastic
- With screening: No
- Shape: Rectangular
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP55
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Mounting cover
- Cover attachment: Snapped on
- Operating temperature: -25-40 °C
- Sealable: No
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 400 V
- Circuit integrity: None
- REACH Date: 2021-10-13
- REACH Information obligation: No
