Hensel

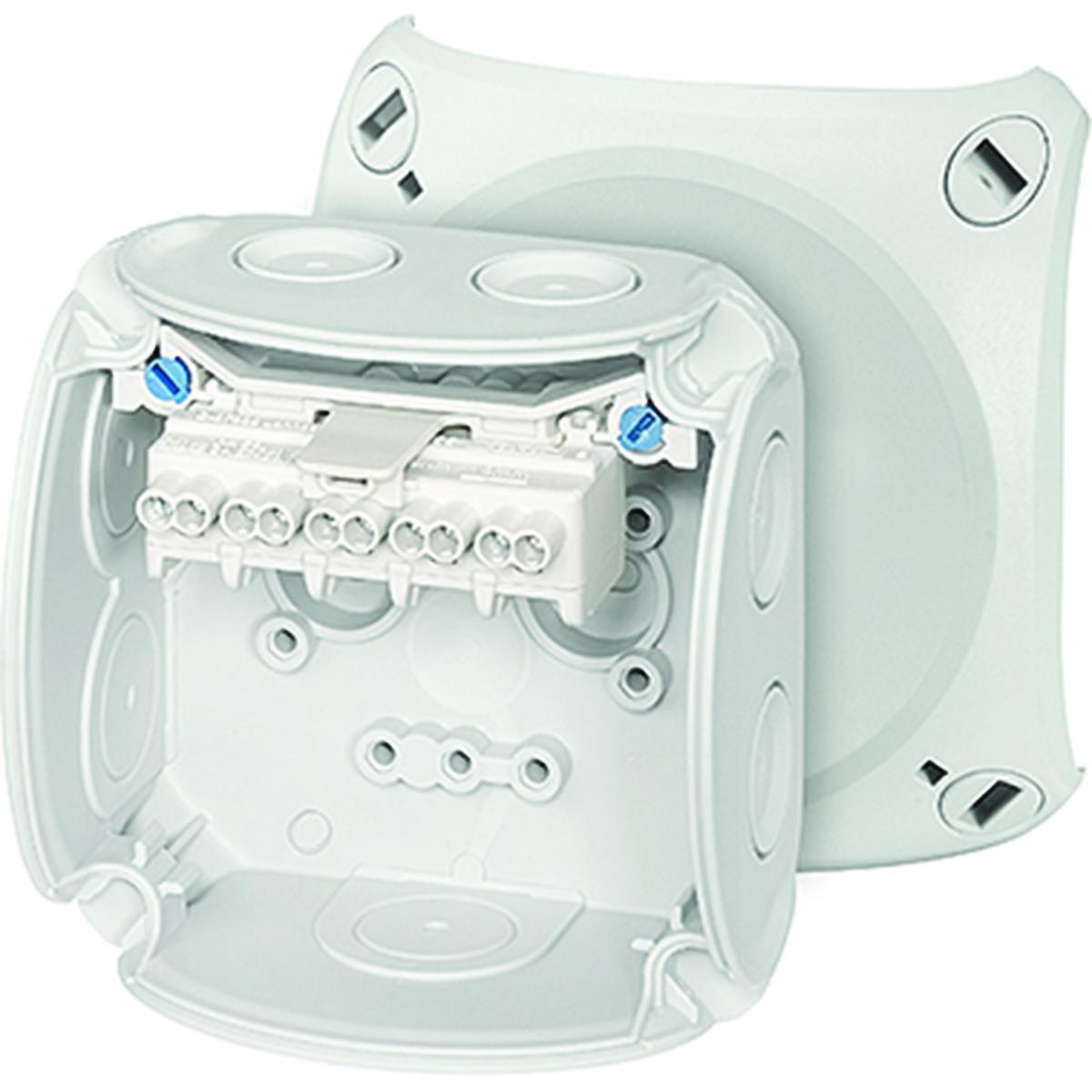

Junction boxes Enycase DK pair leads with terminal grey, Hensel
JUNCT BOX W T 2,5MM 93X93 DK 0202G
Article number: Suppl. article no:
1437872
DK 0202 G
to see price and stock
Junction box with terminal block with integrated elastic membranes that can be easily removed pre-cable insertion via cable glands With a cable insertion on the bottom, the cover screws can be sealed without accessories. Fastening straps and external brackets for wall mounting included
- Article number: 1437872
- Suppl. article no: DK 0202 G
- Ean no: 4012591124931
- Material class QE7020
Technical data
- Packagin Size: 1 ST/5 ST
- Number of poles: 5
- Number of inlets: 8
- Max. conductor cross section: 4 mm²
- Width: 93 mm
- Length: 93 mm
- Depth: 62 mm
- Equipped with: Clamp
- Colour: Grey
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: Other
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP66
- Halogen free: Yes
- Weatherproof: No
- Connectable: No
- Cover model: Other
- Cover attachment: Screwed
- Operating temperature: -25-40 °C
- Sealable: Yes
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 690 V
- Transparent cover: No
- Circuit integrity: None
- REACH Date: 2021-01-19
- REACH Information obligation: No
