Elko
Junction boxes UL94/IP44 Elko

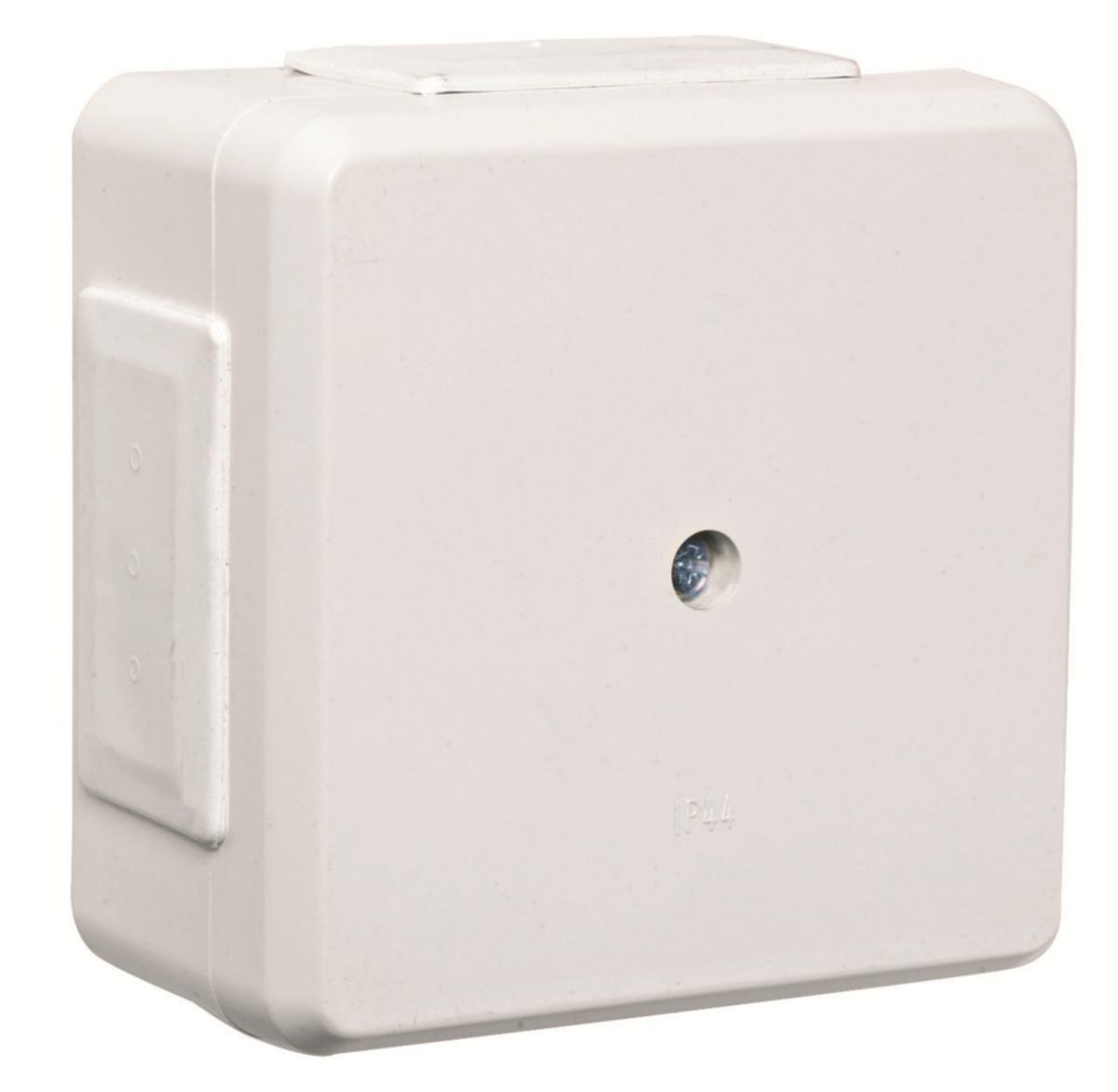

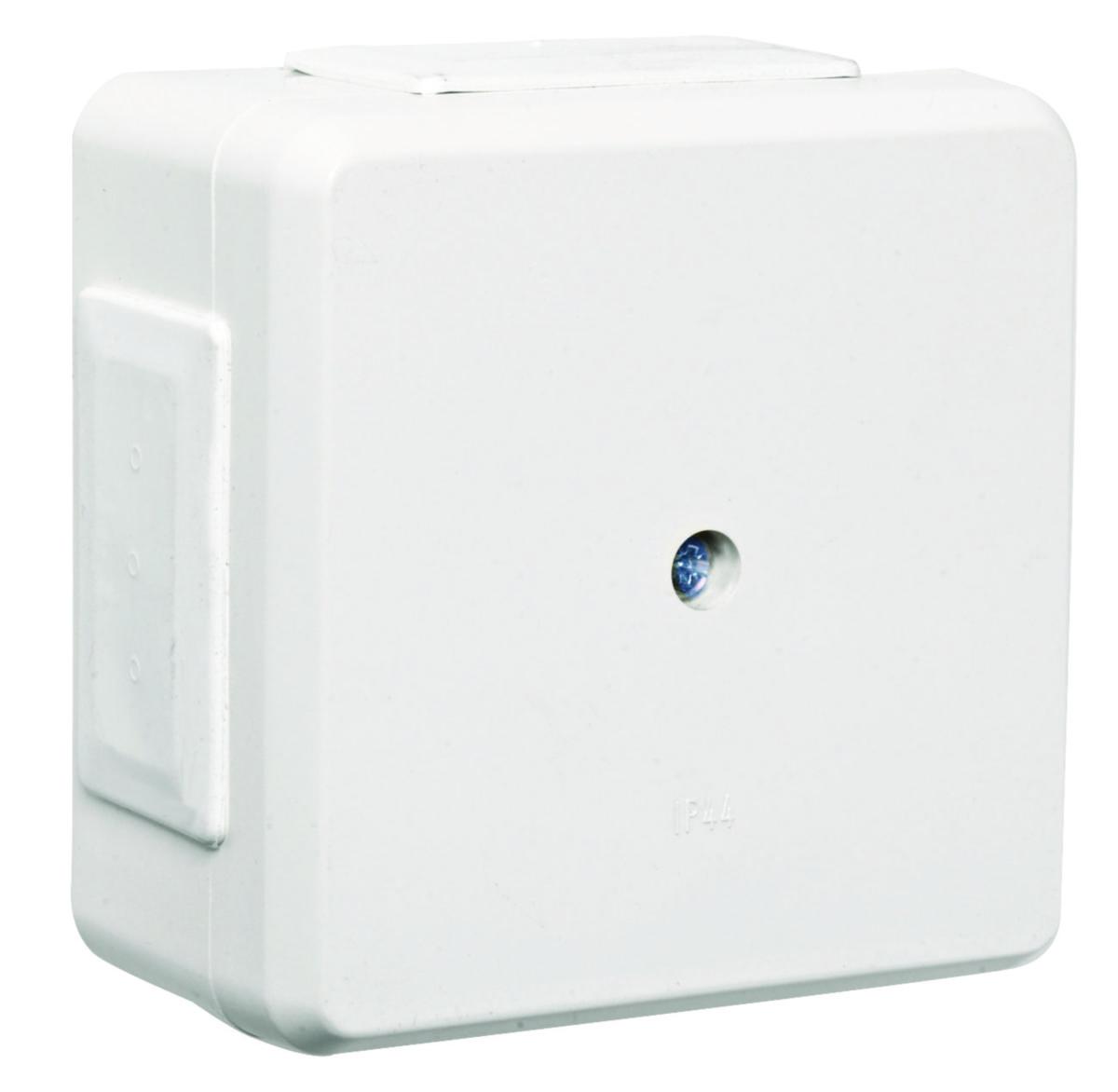

JUNCTION BOX 80 IP44 WITHOUT T EKO04832
Article number: Suppl. article no:
1437760
EKO04832
to see price and stock
Splash-proof design IP44. Made of halogen-free thermoplastic. Meets the requirements for installation in barns, UL94. Space for one connection terminal block 5x2.5mm2. Membrane nipples for two cables on each side. Dimensions 80x80x41mm.
- Article number: 1437760
- Suppl. article no: EKO04832
- Ean no: 7020160483201
- Material class QE7000
Technical data
- Packagin Size: 1 ST/50 ST/50 ST
- Type: EKO04832
- Number of inlets: 6
- Max. conductor cross section: 6 mm²
- Width: 80 mm
- Length: 80 mm
- Depth: 41 mm
- Equipped with: None
- Colour: White
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- For tube diameter: 16/20 mm
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP44
- Halogen free: Yes
- Connectable: No
- Cover attachment: Screwed
- Operating temperature: -25-60 °C
- Sealable: No
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Transparent cover: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
