Hensel

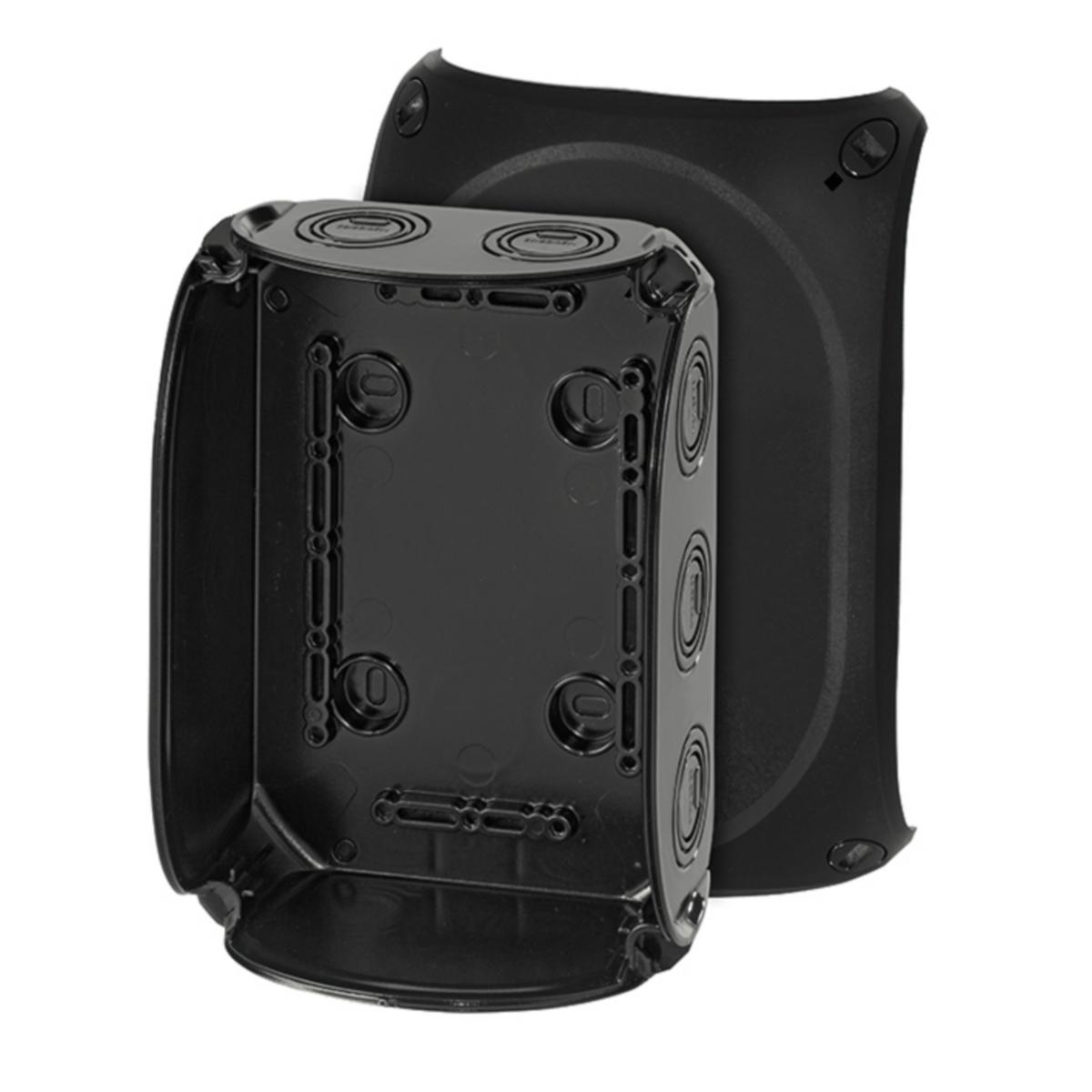

Junction boxes Enycase without terminal black, Hensel

JUNCT. BOX KF1000B NO TERM. BLACK IP66/67
Article number:
1437604
Suppl. article no:
KF 1000 B





to see price and stock
To shop with us, you need a registered company and a customer number.
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Junction box without terminals.
To further improve ENYCASE, we have reviewed every aspect of its function and design.
This is how we, as a manufacturer, can ensure that we are consistently producing top of the line products that not only provide consumers with
proven technology, but also generate excitement and enthusiasm.
The cover is quick-locking with a visible lock position.
Multi-stage break-out openings for cable bushings in assorted sizes, as well as a cable bushing in the bottom
All terminals have two clamps per pole, and can be placed in different terminal positions and with attachment possibilities.
Elevated terminals with plenty of space for connections, plus the ability to connect different conductor areas and cable types.
Outer fittings are always delivered with the box.
  • Article number:
    1437604
  • Suppl. article no:
    KF 1000 B
  • Ean no:
    4012591121862
  • Material class
    QE7020
Technical data
  • Packagin Size: 1 ST/5 ST
  • Type: KF 1000 B
  • Number of inlets: 10
  • Width: 130 mm
  • Length: 180 mm
  • Depth: 77 mm
  • Equipped with: None
  • Colour: Black
  • Casting compound included: No
  • Castable: No
  • Material: Plastic
  • Mounting under water: No
  • Mounting in the soil: No
  • With screening: No
  • Shape: Rectangular
  • Inlet from the rear: Yes
  • Type of housing feed-through: Preembossing
  • Mounting method: Wall-/ceiling mounting
  • Degree of protection (IP): IP67
  • Halogen free: Yes
  • Weatherproof: Yes
  • Connectable: No
  • Cover model: Other
  • Cover attachment: Screwed
  • Operating temperature: -25-70 °C
  • Sealable: Yes
  • Surface protection: Untreated
  • For Ex-zone gas: None
  • For Ex-zone dust: None
  • Explosion-tested version: No
  • Rated insulation voltage Ui: 690 V
  • Transparent cover: No
  • Circuit integrity: None
  • REACH Date: 2021-01-19
  • REACH Information obligation: No
