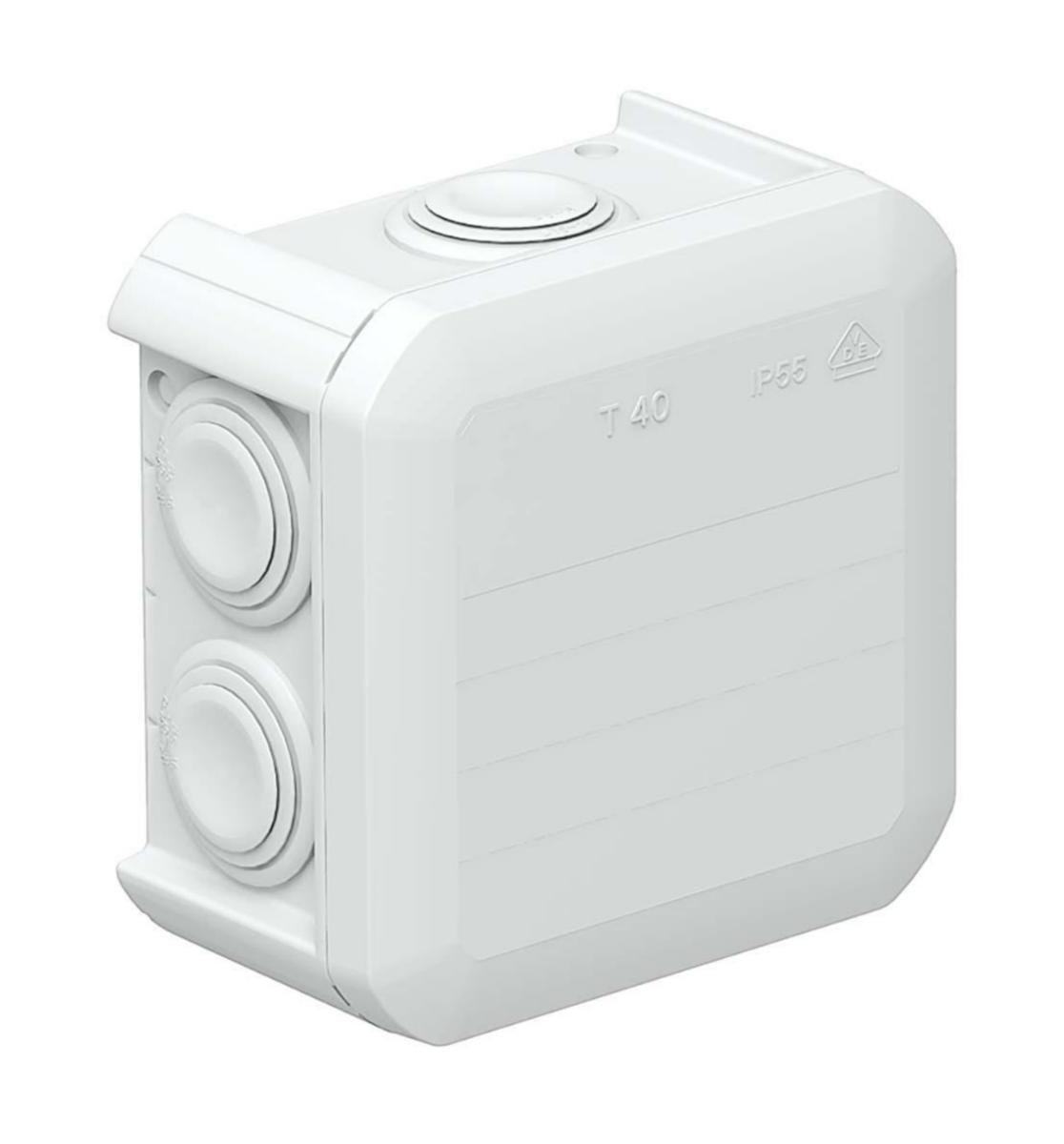

Junction box a-collection IP55
JUNCTION BOX T40 RW IP 55 90X90X52MM WH A-COLLECTION
Article number:
1437539
to see price and stock
To shop with us, you need a registered company and a customer number.
UV-resistant junction box IP55 consisting of a thermoplastic plastic, polypropylene, with cable glands of ethylene vinyl acetate, EVA. The plastic in the cable entries is soft. Therefore, cables can be installed via the cable glands, alternatively they can be cut with a knife at the indicated locations to create openings for cables and or pipes. Cable glands can also be inserted into the openings instead of seals and locked from the inside with a counter nut.The lid is sealable with marking. Impact resistance (IK rating) IK07
- Article number: 1437539
- Ean no: 4012195387008
- Material class QE6200
Technical data
- Packagin Size: 1 ST/5 ST/80 ST/1120 ST
- Type: T40 RW
- Number of inlets: 7
- Width: 90 mm
- Length: 90 mm
- Depth: 50 mm
- Equipped with: None
- Colour: White
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Seal membrane
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP55
- Halogen free: Yes
- Weatherproof: Yes
- Connectable: No
- Cover model: Mounting cover
- Cover attachment: Snapped on
- Sealable: No
- Surface protection: Other
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 550 V
- Transparent cover: No
- Circuit integrity: None
- RAL-number (similar): 9010
