Pmflex

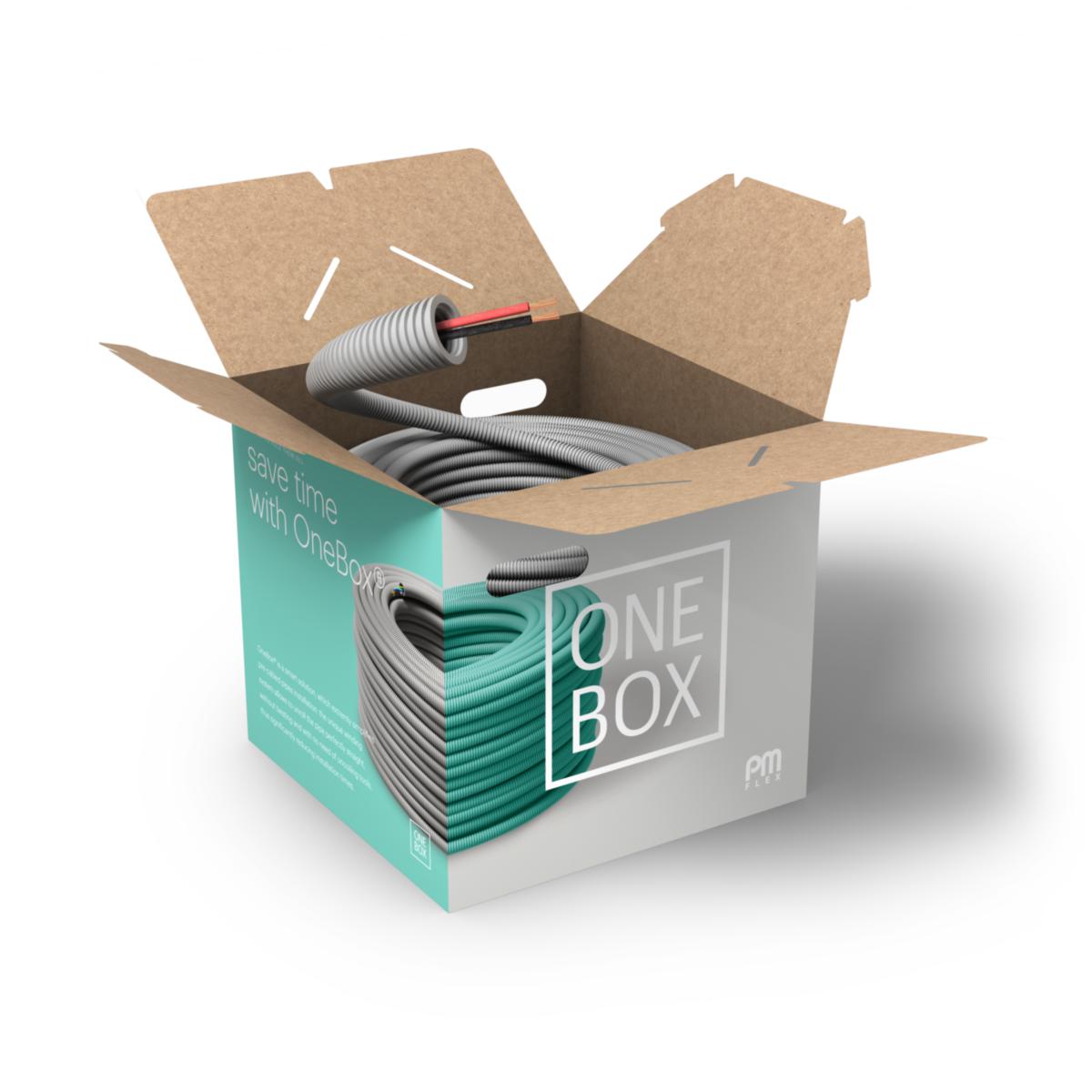

Flex hose RQUB in box pre-wired, PM Flex
CONDUIT 16/RQUB 2X0.75 ZERO
Article number:
1419044
to see price and stock
Halogen-free meter-marked flex pipes, approved for installation within -25 ° C to + 90 ° C and grouting up to 750N. Contracted cable and pipe must be protected from direct UV light. Treaties RQUB has a round multi-wire copper conductor. The cable has parallel conductors in two-color halogen-free insulation to simplify installation and facilitate identification.
- Article number: 1419044
- Ean no: 7332367190449
- Material class QE3541
Technical data
- Packagin Size: 100 M/600 M/1800 M
- Type: RQUB
- Dimension conductor x area: 2x0,75 mm²
- Colour: Grey
- Outer diameter: 16 mm
- Nominal cross section conductor: 0.75 mm²
- Number of cores single core cable: 0
- Number of data cables: 0
- Number of cores signal-/telecommunications cable: 2
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores low voltage power cable: 0
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 0
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- REACH Date: 2022-09-02
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
