AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable
Pmflex
Flex hose ELQYB RnR pre-wired Dca, PM Flex
CONDUIT 16/ELQYB 2X1 NEXT RNO.
Article number: Suppl. article no:
1418470
1418470
to see price and stock
PM FLEX offers a complete range within the contract, both high current and low current. Using the contract is a simple and cost-effective way to carry out installations. All our cables and conductors are routed in halogen-free flex pipes. Area of application is for all types of electrical installations, new constructions, renovations and placement on arches 750N is cast-in and meter-marked.

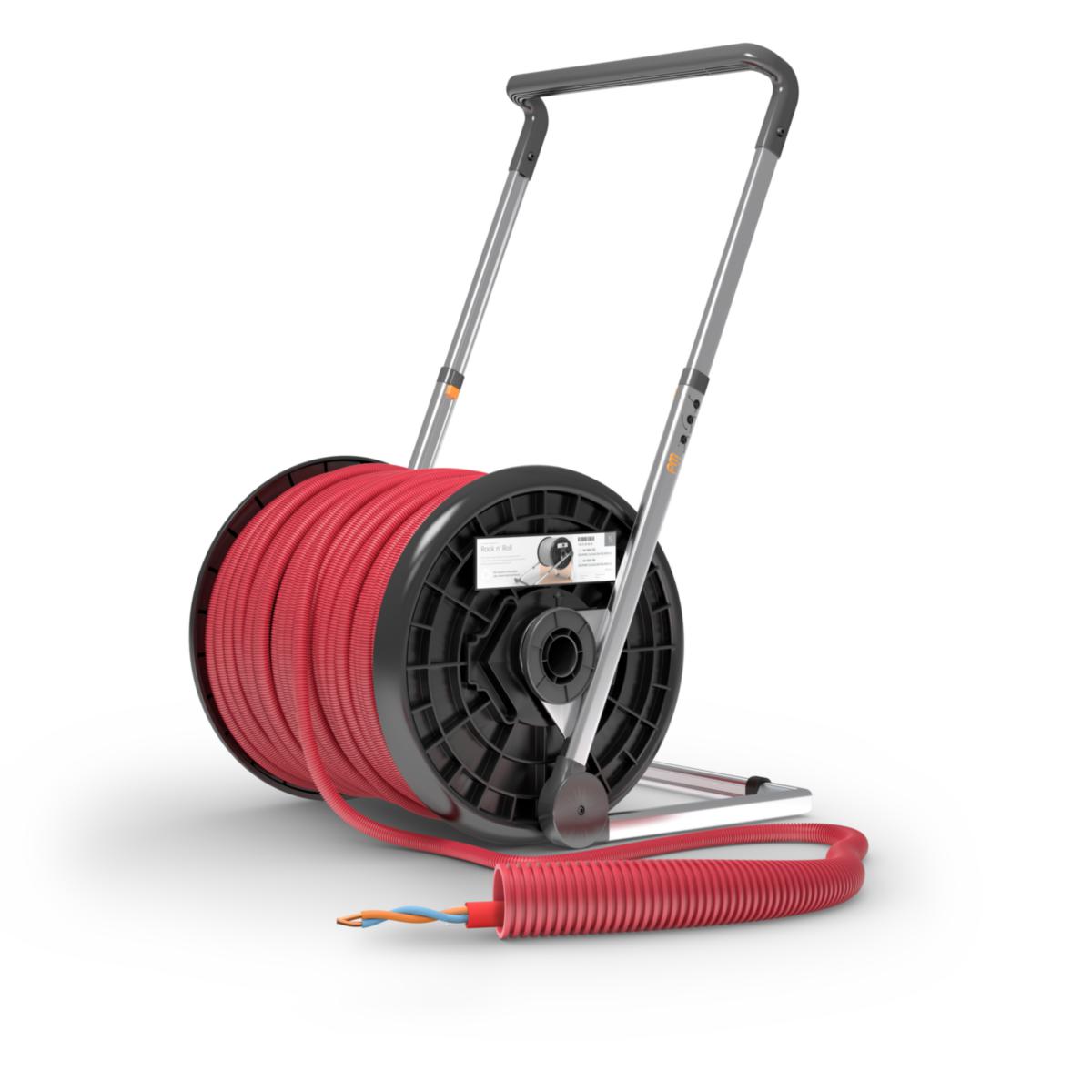

Rock n Roll offers the treaty up to 300 meters in length. With the Rock n Roll caravan, you move the product in an easy way, plus the unrolling works smoothly. The bobbins are of the K6 model and it is easy to change the bobbin. Accessories are available " Rock n Roll " caravan, article number 16 591 00.
ELQYB is a PE-insulated fire alarm cable with halogen-free, flame-retardant red sheath
Rock n Roll offers the treaty up to 300 meters in length. With the Rock n Roll caravan, you move the product in an easy way, plus the unrolling works smoothly. The bobbins are of the K6 model and it is easy to change the bobbin. Accessories are available " Rock n Roll " caravan, article number 16 591 00.
ELQYB is a PE-insulated fire alarm cable with halogen-free, flame-retardant red sheath
- Article number: 1418470
- Suppl. article no: 1418470
- Ean no: 7332367701485
- Material class QE3542
Technical data
- Packagin Size: 300 M/2400 M
- Dimension conductor x area: 2x1 mm²
- Colour: Red
- Outer diameter: 16 mm
- Nominal cross section conductor: 5.9-6.1 mm²
- Number of cores single core cable: 0
- Number of data cables: 0
- Number of cores signal-/telecommunications cable: 2
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores low voltage power cable: 0
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- REACH Date: 2022-09-02
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
