Pmflex
Flex hose Multimedia cable Cat6 RnR pre-wired Dca, PM Flex
CONDUIT 20/2C6 U/UTP NEXT RNO
Article number: Suppl. article no:
1418462
1418462
to see price and stock
PM FLEX offers a complete range within the contract, both high current and low current. Using the contract is a simple and cost-effective way to carry out installations. All our cables and conductors are routed in halogen-free flex pipes. Area of application is for all types of electrical installations, new constructions, renovations and placement on arches 750N is cast-in and meter-marked.

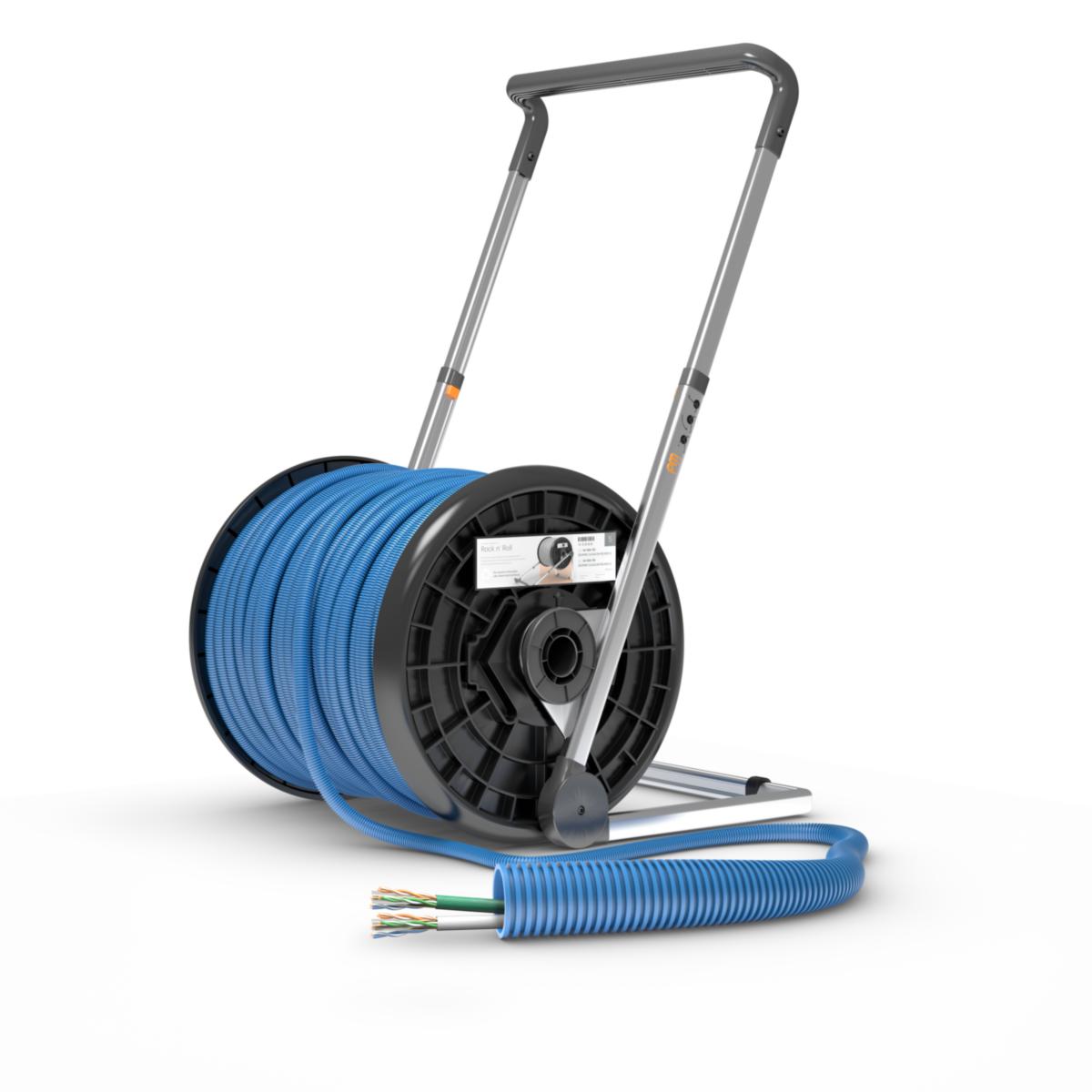

Rock n Roll offers the treaty up to 300 meters in length. With the Rock n Roll caravan, you move the product in an easy way, plus the unrolling works smoothly. The bobbins are of the K6 model and it is easy to change the bobbin. Accessories are available " Rock n Roll " caravan, article number 16 591 00.
Cat 6 U / UTP is an unshielded cable with single-wire polyethylene-insulated copper conductors twisted into pairs. The cable consists of 4 pairs that are separated by a center cross and have a sheath of flame-retardant plastic.
Rock n Roll offers the treaty up to 300 meters in length. With the Rock n Roll caravan, you move the product in an easy way, plus the unrolling works smoothly. The bobbins are of the K6 model and it is easy to change the bobbin. Accessories are available " Rock n Roll " caravan, article number 16 591 00.
Cat 6 U / UTP is an unshielded cable with single-wire polyethylene-insulated copper conductors twisted into pairs. The cable consists of 4 pairs that are separated by a center cross and have a sheath of flame-retardant plastic.
- Article number: 1418462
- Suppl. article no: 1418462
- Ean no: 7332367701478
- Material class QE3542
Technical data
- Packagin Size: 200 M/1600 M
- Dimension conductor x area: 2xU/UTP6
- Colour: Blue
- Outer diameter: 20 mm
- Number of data cables: 2
- Category: 6
- Number of coaxial cables: 0
- Number of cores signal-/telecommunications cable: 0
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 0
- Number of loudspeaker cables: 0
- Nominal cross section conductor: 0.56 mm²
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 16
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 14.1 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- REACH Date: 2022-09-02
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
