PM Flex

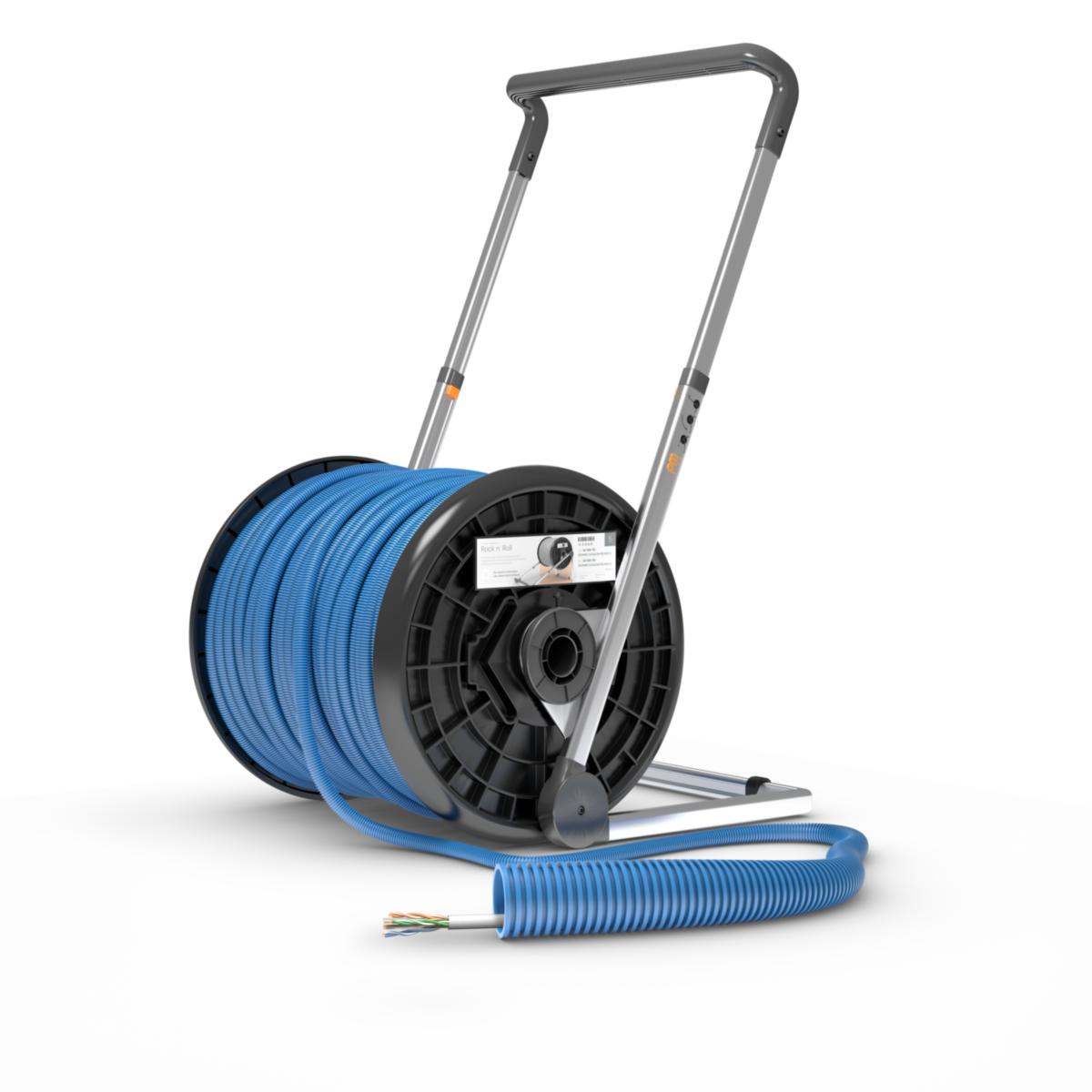

Flex hose RnR Multimedia cable Cat 6 pre-wired Dca, PM Flex
CONDUIT 16/1C6 U/EPT NEXT RNO.
Article number: Suppl. article no:
1418460
1418460
to see price and stock
To shop with us, you need a registered company and a customer number.
Halogen-free retracted flex pipes, meter-marked and approved for installation within -25°C to +90°C and casting up to 750N. Pipes and cabling must be protected against direct UV light. The K6 model bobin and is used for PM FLEX Rock n Roll bobinwagon. 1x unshielded category 6 U/UTP cable treaties in 16mm tubes. The cable consists of 4 individually unshielded pairs that are separated with center crosses. The mantle consists of flame-resistant plastic and meets Dca s2 d2 a1 according to EN50575. Delivery form: PM FLEX Rock n Roll 300m
- Article number: 1418460
- Suppl. article no: 1418460
- Ean no: 7332367701782
- Material class QE3542
Technical data
- Packagin Size: 300 M/2400 M
- Dimension conductor x area: 1xU/UTP6
- Colour: Blue
- Outer diameter: 16 mm
- Number of data cables: 1
- Category: 6
- Number of coaxial cables: 0
- Number of cores signal-/telecommunications cable: 0
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 0
- Number of loudspeaker cables: 0
- Nominal cross section conductor: 0.56 mm²
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 8
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- REACH Date: 2022-09-02
- REACH Information obligation: No
- Compressive strength class: Medium (class 3)
