AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable
Flex hose FQ RnR pre-wired Dca, PM Flex
CONDUIT 16/FQ 3G1.5 NEXT RNO.
Article number: Suppl. article no:
1418400
1418400
to see price and stock
To shop with us, you need a registered company and a customer number.
PM FLEX offers a complete range within the treaty, both strong current and weak current. Using the treaty is a simple and cost-effective way to implement installations. All of our cables and conductors are drawn in halogen-free flex pipes. renovations and installation on arches 750N is castable and meter marked.

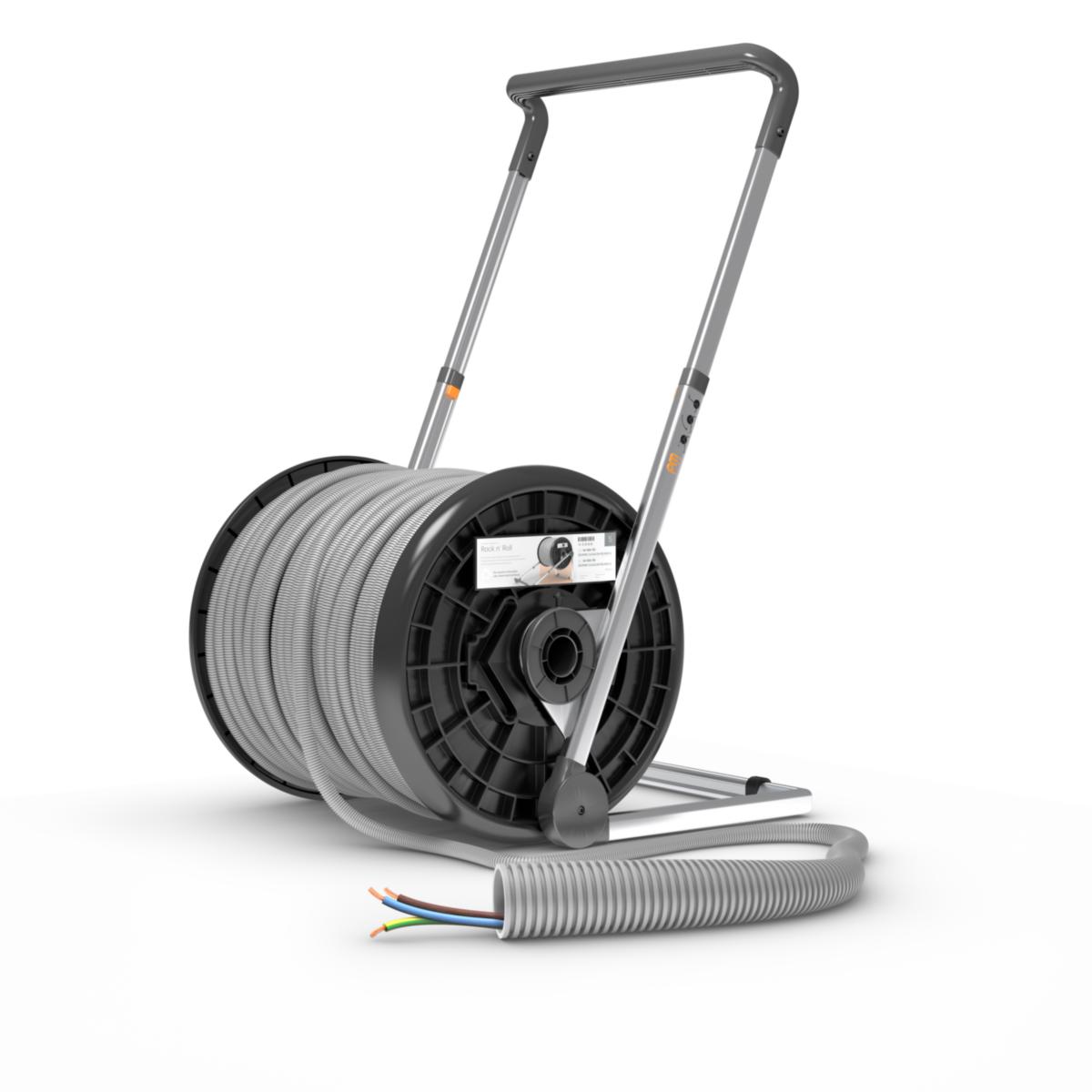

Rock n Roll offers the treaty up to 300 meters in length. With the Rock n Roll van you move the product in an easy way plus the scrolling works smoothly. The bobbins are of the K6 model and it is easy to change the bobbin. As an accessory there is "Rock n Roll" RV, part number 16 591 00.
FQ is a halogen-free and flame-retardant cable with round wired copper conductors with colored insulation.
Rock n Roll offers the treaty up to 300 meters in length. With the Rock n Roll van you move the product in an easy way plus the scrolling works smoothly. The bobbins are of the K6 model and it is easy to change the bobbin. As an accessory there is "Rock n Roll" RV, part number 16 591 00.
FQ is a halogen-free and flame-retardant cable with round wired copper conductors with colored insulation.
- Article number: 1418400
- Suppl. article no: 1418400
- Ean no: 7332367701256
- Replaces art.nbr: 1416300
- Material class QE3521
Technical data
- Packagin Size: 300 M/2400 M
- Dimension conductor x area: 3G1,5 mm²
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 3
- Nominal cross section conductor: 1.5 mm²
- Colour: Grey
- Outer diameter: 16 mm
- Number of stranding elements: 0
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Conductor category: Class 2 = stranded
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- REACH Date: 2022-09-02
- REACH Information obligation: No
- Compressive strength class: Medium (class 3)
