Pmflex

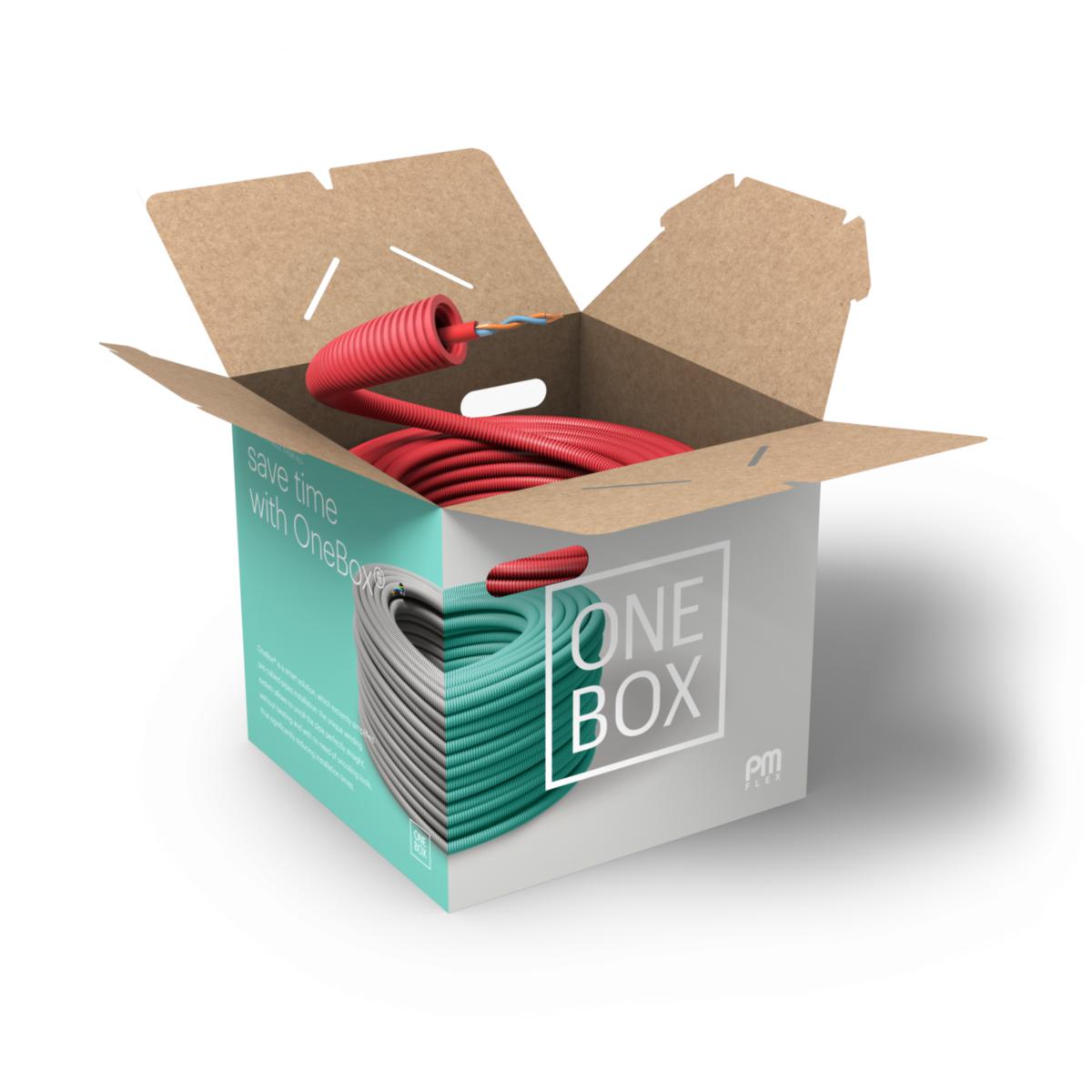

Flex hose ELQYB ZERO Box pre-wired Dca, PM Flex
CONDUIT 16/ELQYB NEXT ZERO
Article number: Suppl. article no:
1418370
1418370
to see price and stock
PM FLEX offers a complete range within the contract, both high current and low current. Using the contract is a simple and cost-effective way to carry out installations. All our cables and conductors are routed in halogen-free flex pipes. Area of application is for all types of electrical installations, new constructions, renovations and placement on arches 750N is cast-in and meter-marked.
ZERO is a smart packaging solution that radically streamlines installation because the flex pipe is in a direction that means that no things are created during extraction. The range consists of treaty tubes and is available in both box and ring.
ELQYB is a PE-insulated fire alarm cable with halogen-free, flame-retardant red sheath
ZERO is a smart packaging solution that radically streamlines installation because the flex pipe is in a direction that means that no things are created during extraction. The range consists of treaty tubes and is available in both box and ring.
ELQYB is a PE-insulated fire alarm cable with halogen-free, flame-retardant red sheath
- Article number: 1418370
- Suppl. article no: 1418370
- Ean no: 7332367701201
- Material class QE3542
Technical data
- Packagin Size: 100 M/1800 M
- Dimension conductor x area: 2x1 mm²
- Colour: Red
- Outer diameter: 16 mm
- Nominal cross section conductor: 0.75 mm²
- Number of cores single core cable: 0
- Number of data cables: 0
- Number of cores signal-/telecommunications cable: 1
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores low voltage power cable: 0
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- REACH Date: 2022-09-02
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
