AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable
Pmflex

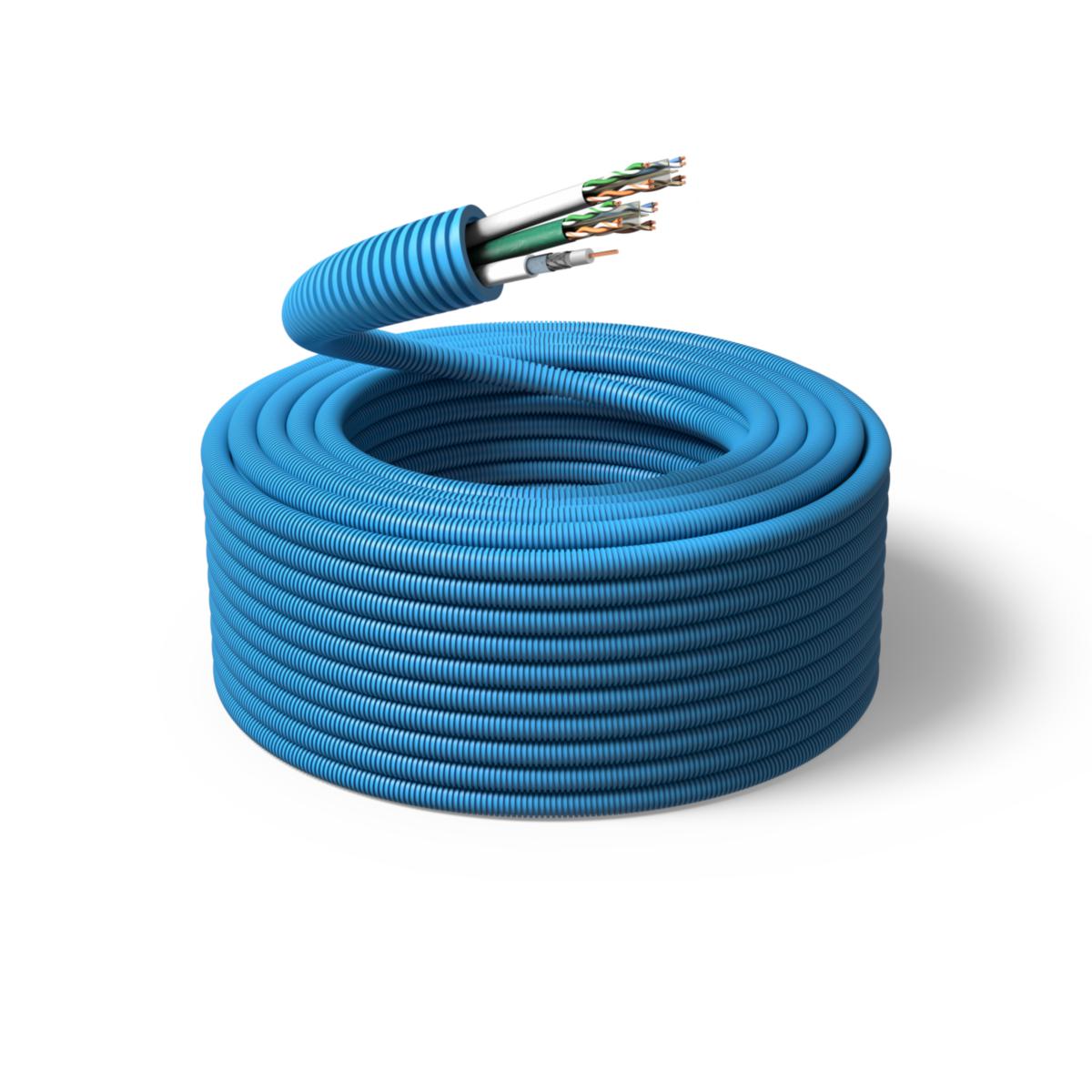

Flex hose Multimedia cable Cat6 pre-wired Dca, PM Flex
CONDUIT 20/2C6 U/UTP+RG6T NEXT
Article number: Suppl. article no:
1418164
1418164
to see price and stock
To shop with us, you need a registered company and a customer number.
Pre-wired cable tube with 2 pcs Cat 6 U / UTP which is an unshielded cable with single-wire polyethylene insulated copper conductors twisted into pairs. Each cable consists of 4 pairs that are separated by a center cross and have a sheath of flame-retardant plastic.
- Article number: 1418164
- Suppl. article no: 1418164
- Ean no: 7332367700822
- Replaces art.nbr: 1416575
- Material class QE3540
Technical data
- Packagin Size: 100 M/2000 M
- Dimension conductor x area: 2xU/UTP6+RG6T
- Colour: Blue
- Outer diameter: 20 mm
- Number of data cables: 2
- Category: 6
- Number of coaxial cables: 0
- Number of cores signal-/telecommunications cable: 1
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 0
- Number of loudspeaker cables: 0
- Nominal cross section conductor: 0.56 mm²
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 16
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 14.1 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- REACH Date: 2022-09-02
- REACH Information obligation: No
- Compressive strength class: Medium (class 3)
