AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable

Pmflex

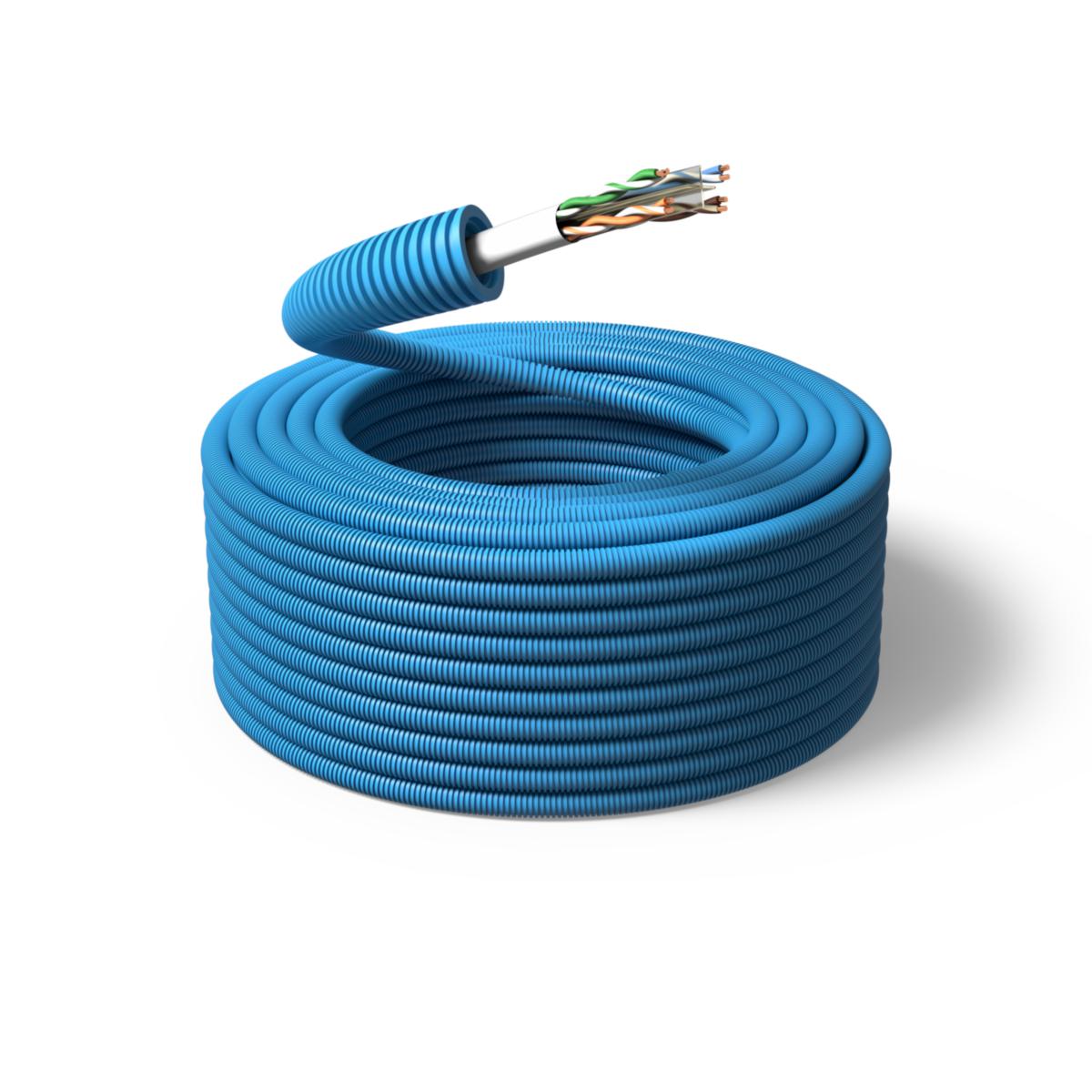

Flex hose Multimedia cable Cat6 pre-wired Dca, PM Flex
CONDUIT 16/C6 U/UTP NEXT LSZH
Article number: Suppl. article no:
1418160
1418160
to see price and stock


PM FLEX offers a complete range within the contract, both high current and low current. Using the contract is a simple and cost-effective way to carry out installations. All our cables and conductors are routed in halogen-free flex pipes. Area of application is for all types of electrical installations, new constructions, renovations and placement on arches 750N is cast-in and meter-marked.
Cat 6 U / UTP is an unshielded cable with single-wire polyethylene-insulated copper conductors twisted into pairs. The cable consists of 4 pairs that are separated by a center cross and have a sheath of flame-retardant plastic.
Cat 6A F / UTP is a foil-shielded category 6A data cable built up of single-wire polythene-insulated copper wires twisted into pairs that are laid in a center cross. The cable consists of 4 pairs and has a sheath of halogen-free, flame-retardant plastic.
Cat 6 U / UTP is an unshielded cable with single-wire polyethylene-insulated copper conductors twisted into pairs. The cable consists of 4 pairs that are separated by a center cross and have a sheath of flame-retardant plastic.
Cat 6A F / UTP is a foil-shielded category 6A data cable built up of single-wire polythene-insulated copper wires twisted into pairs that are laid in a center cross. The cable consists of 4 pairs and has a sheath of halogen-free, flame-retardant plastic.
- Article number: 1418160
- Suppl. article no: 1418160
- Ean no: 7332367700785
- Material class QE3542
Technical data
- Packagin Size: 100 M/2400 M
- Dimension conductor x area: 1xU/UTP6
- Colour: Blue
- Outer diameter: 16 mm
- Number of data cables: 1
- Category: 6
- Number of coaxial cables: 0
- Number of cores signal-/telecommunications cable: 0
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 0
- Number of loudspeaker cables: 0
- Nominal cross section conductor: 0.535 mm²
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 8
- Bending strength: Flexible
- Operating temperature: -20-60 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- REACH Date: 2022-09-02
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
