Pmflex

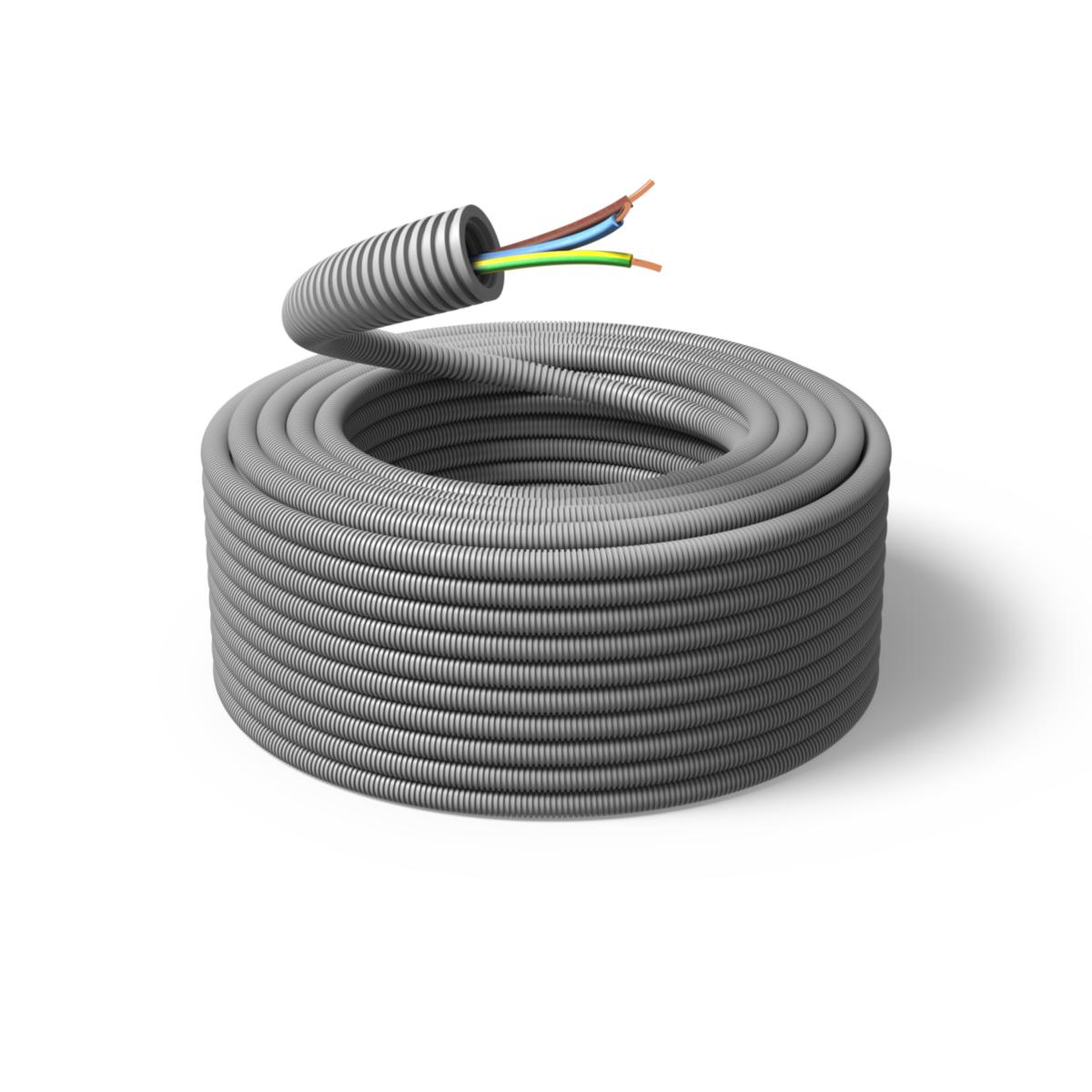

Flex hose EQ pre-wired Dca, PM Flex
CONDUIT 16/EQ 3G1.5 NEXT LSZH
Artikelnummer: Lev. artikelnr:
1418120
1418120
för att se saldo och pris
PM FLEX offers a complete range within the contract, both high current and low current. Using the contract is a simple and cost-effective way to carry out installations. All our cables and conductors are routed in halogen-free flex pipes. Area of application is for all types of electrical installations, new constructions, renovations and placement on arches 750N is cast-in and meter-marked.
EQ is a halogen-free and flame-retardant cable with round solid copper conductors with colored insulation.
EQ Tvinnad has twisted round solid copper conductors with halogen-free insulation without sheath.
EQ is a halogen-free and flame-retardant cable with round solid copper conductors with colored insulation.
EQ Tvinnad has twisted round solid copper conductors with halogen-free insulation without sheath.
- Article number: 1418120
- Suppl. article no: 1418120
- Ean no: 7332367700587
- Replaces art.nbr: 1402450
- Material class QE3521
Teknisk data
- Packagin Size: 100 M/2400 M
- Dimension conductor x area: 3G1,5 mm²
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 3
- Nominal cross section conductor: 1.5 mm²
- Colour: Grey
- Outer diameter: 16 mm
- Number of stranding elements: 0
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Conductor category: Class 1 = solid
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- REACH Date: 2022-09-02
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
