AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable
Pmflex

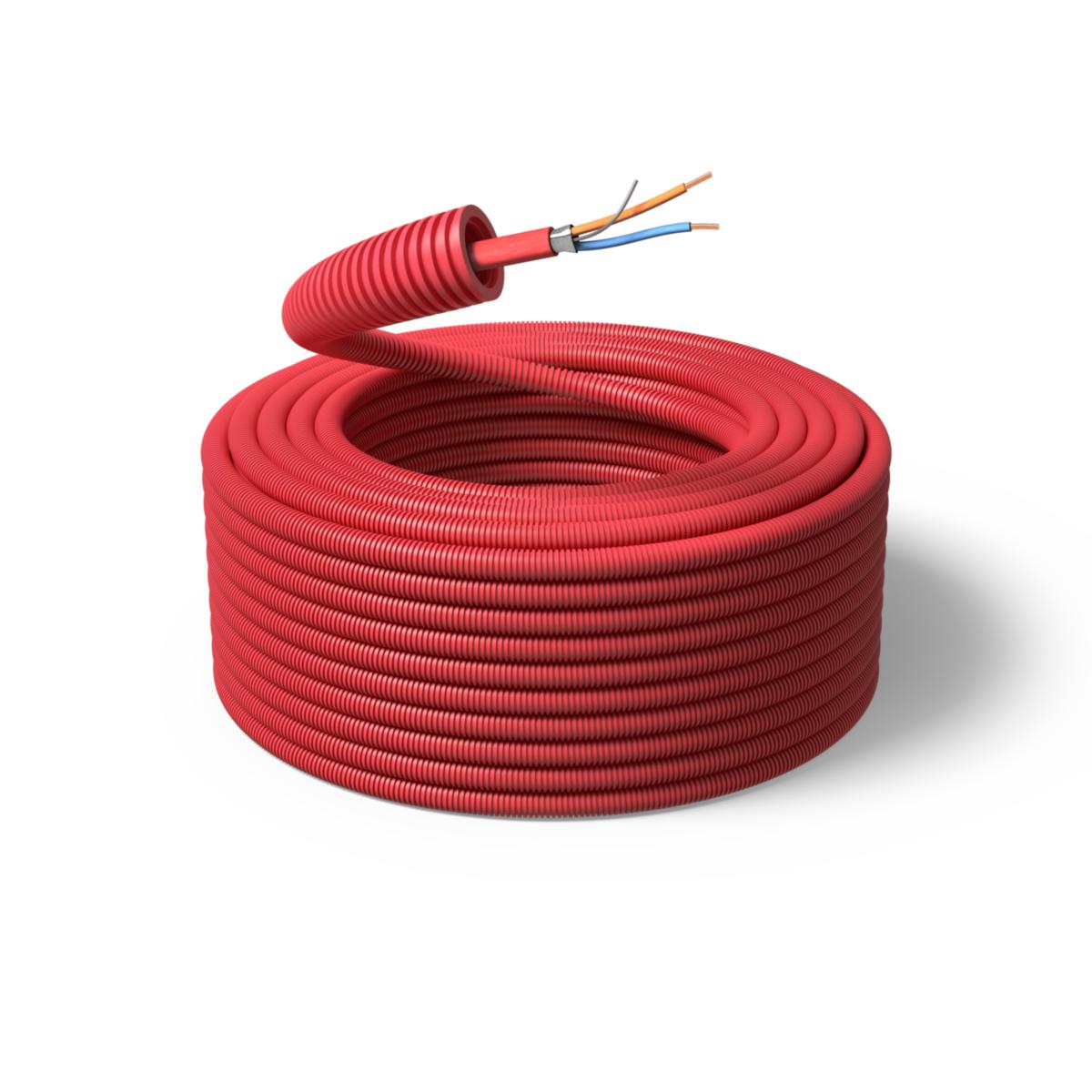

Flex hose on Coil, Fire alarm cable FP200 GOLD, Halogen-free, PM flex

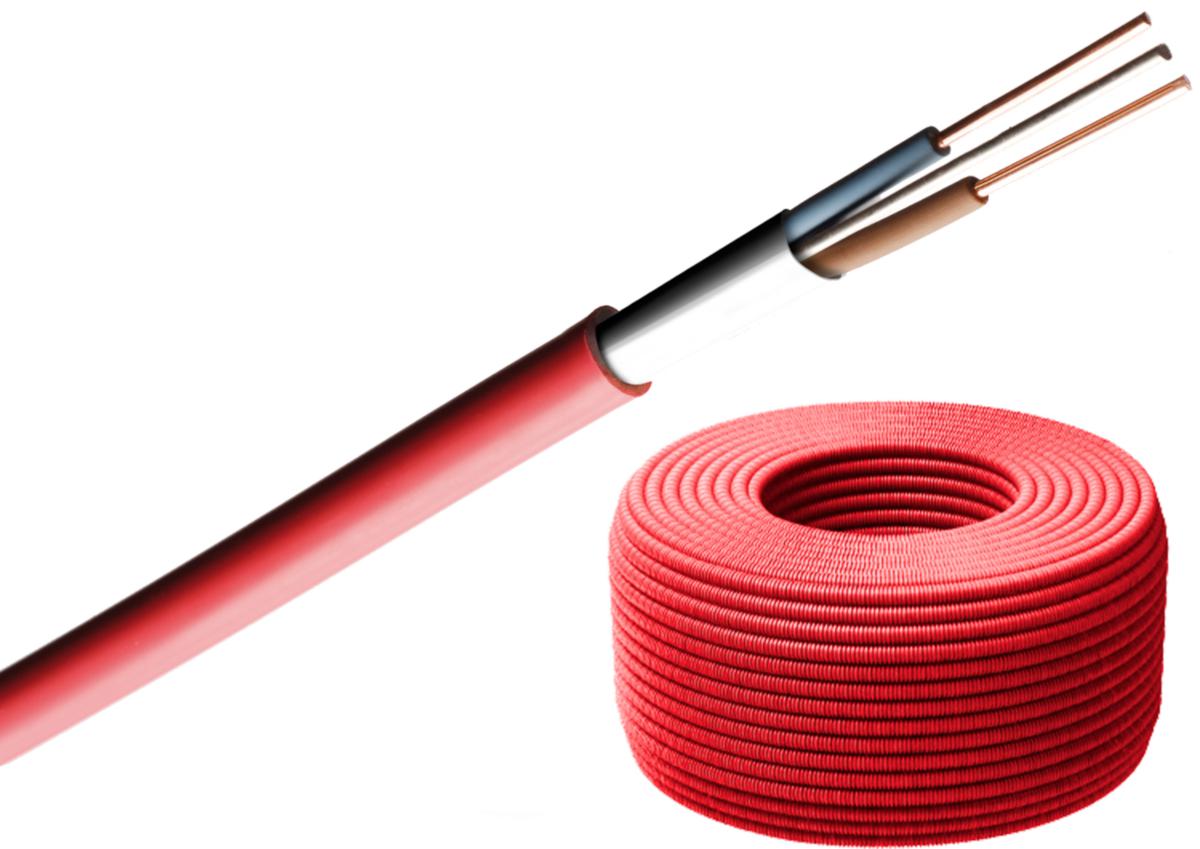

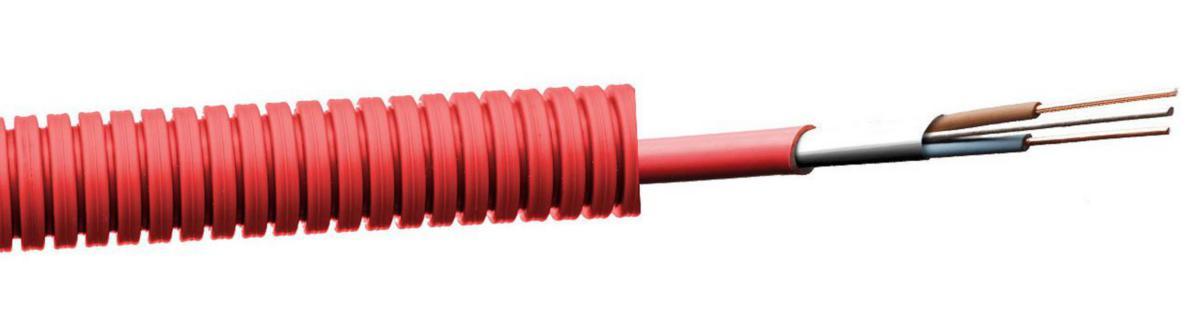

CONDUIT FP200 GOLD 2X1 LSZH
Article number: Suppl. article no:
1416589
1416589
to see price and stock
To shop with us, you need a registered company and a customer number.
Treaty FP200 GOLD - is a fire-resistant, halogen-free cable that has been tested against the highest demands for fire resistance. Used in fire alarm systems, emergency lighting and in other alarm systems. Fire resistance EN 50200/IEC 60331-2 (>90 min 830 °C) BS 6387 CWZ. Fire spreading class F4 in accordance with SS 424 14 75. 750 N is castable.
- Article number: 1416589
- Suppl. article no: 1416589
- Ean no: 7332367800201
- Material class QE3541
Technical data
- Packagin Size: 100 M/2400 M
- Type: FP200 Gold
- Dimension conductor x area: 2x1,0 mm
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 2
- Nominal cross section conductor: 1 mm²
- Colour: Red
- Outer diameter: 16 mm
- Number of stranding elements: 0
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- REACH Date: 2022-09-02
- REACH Information obligation: No
