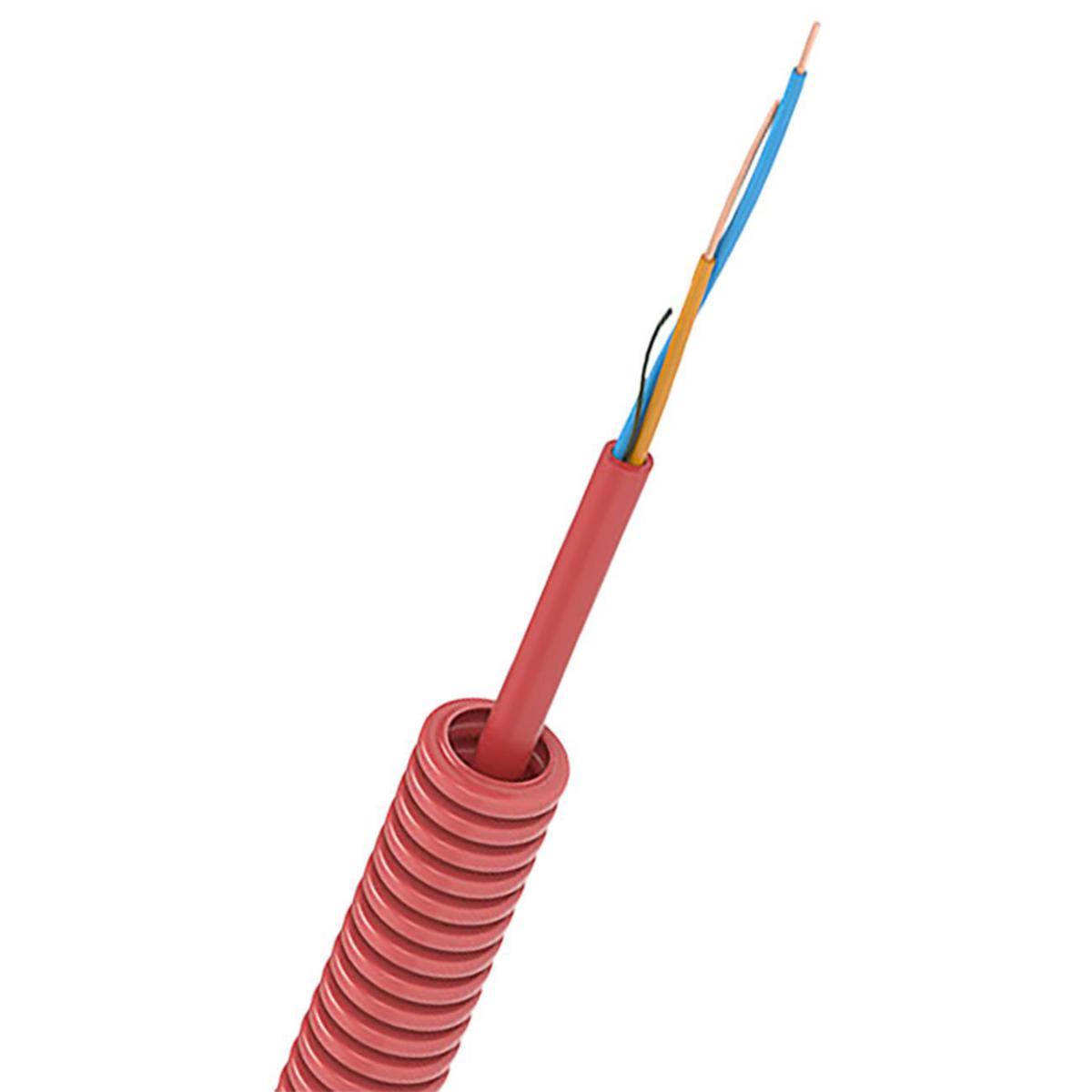

Flex hose pre-wired EQQYB Dca N-LINE, Nexans
PRE WIRED CONDUIT EQQYB1X2X1,0
Article number: Suppl. article no:
1415162
27121184-903-02
to see price and stock
Halogen-free corrugated installation pipe in PP. Twisted pair, halogen-free fire alarm cable, EQQYB EASY.
- Article number: 1415162
- Suppl. article no: 27121184-903-02
- Material class QE3610
Technical data
- Packagin Size: 100 M/1200 M
- Dimension conductor x area: 1x2x1
- Colour: Red
- Outer diameter: 16 mm
- Number of cores signal-/telecommunications cable: 2
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 1
- Bending strength: Flexible
- Operating temperature: -25-70 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 11 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Flush-mounted installation: Yes
- With metre indication: Yes
- REACH Date: 2023-01-01
- REACH Information obligation: No
