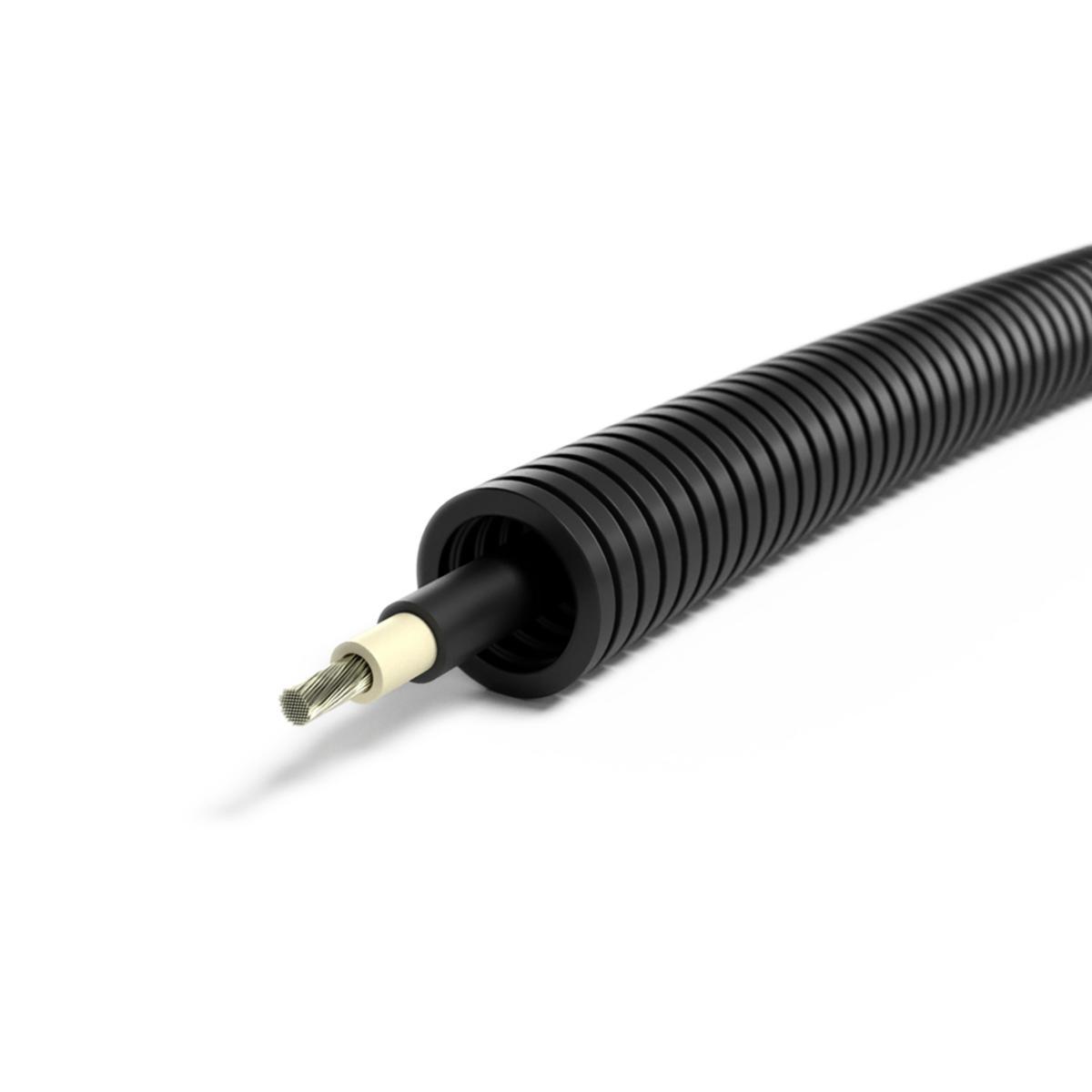

Flex hose UV pre-wired with solar cell cable, Pipelife
ZW16 UV C 1XSOLAR 4 Z R1
Article number: Suppl. article no:
1415047
1234003431
to see price and stock
Halogen-free UV-resistant flexible installation pipe, approved for installation within -25°C to +90°C and Approved for embedding, 750N. The pipes are approved according to EN 61 386-1 &-22. Pre-wired cable lfor installation of solar panels. H1Z2Z2-K is a double-insulated halogen-free copper cable with low smoke generation. Tested and approved according to EN 50618 LSZH, IEC 60322-1-2. CPR class Cca-s1b,d1,a1. Rated voltage 1.2 kV AC or 1.8 kV DC.
- Article number: 1415047
- Suppl. article no: 1234003431
- Ean no: 5420056290906
- Material class QE4120
Technical data
- Packagin Size: 100 M/2400 M
- Design: 1x Black cable
- Dimension conductor x area: 1x4 mm²
- Number of cores low voltage power cable: 1
- Nominal cross section conductor: 4 mm²
- Colour: Black
- Outer diameter: 16 mm
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Pliable
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Reaction-to-fire according to EN 13501-6: Class: Cca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.9 mm
- Machine and systems installation: No
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: Yes
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
- Reaction-to-fire according to EN 13501-6: Smoke production: s1
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Flush-mounted installation: Yes
- With metre indication: No
- Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule)
- Compressive strength class according to EN 61386-1: Medium (class 3, 750 N)
- UV resistant: Yes
- REACH Date: 2023-09-29
- REACH Information obligation: No
