AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable
Pipelife

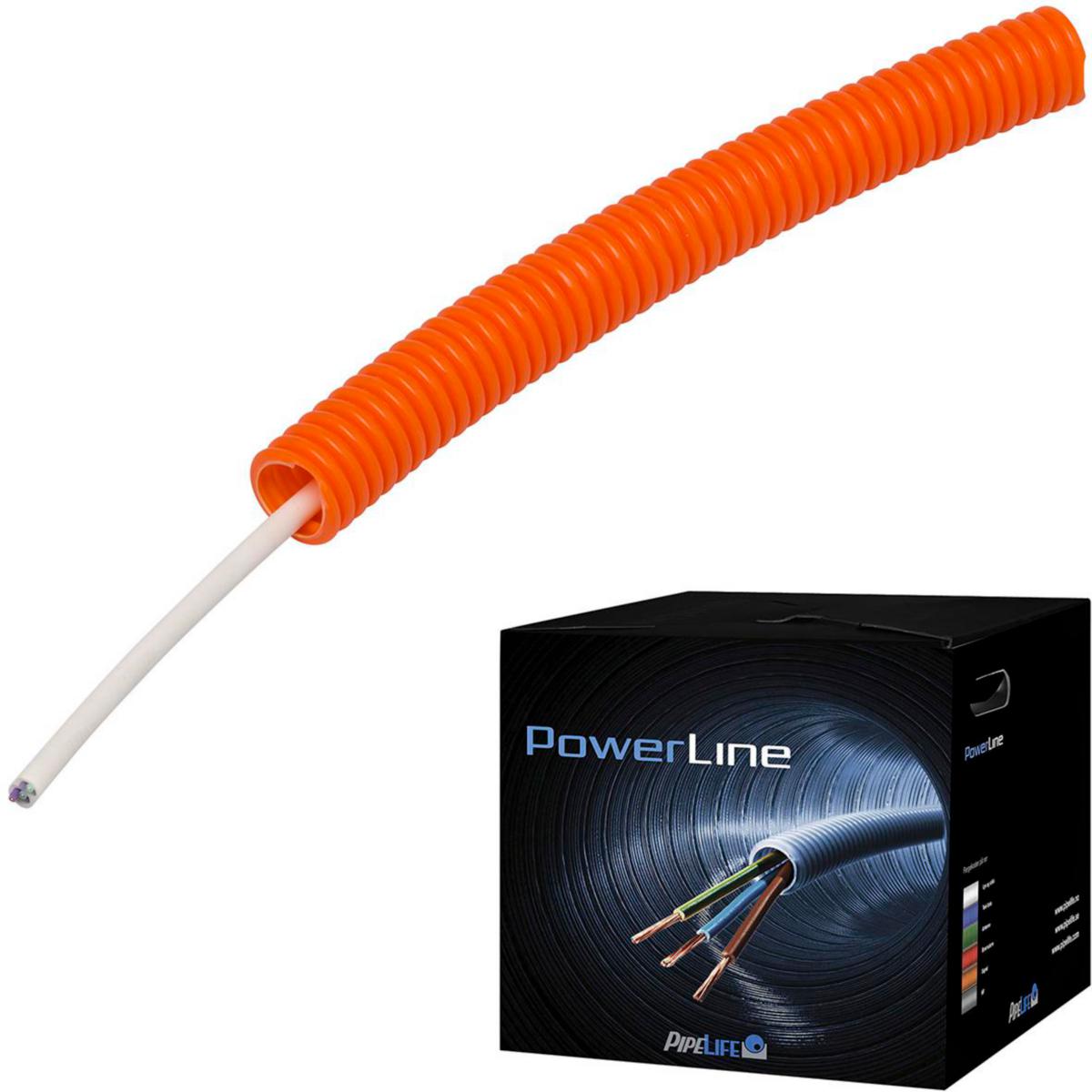

Flex hose in box, PowerLine Eca, Pipelife
CONDUIT 16 ELQXBE 1x4x0.5 100m 100BE 1x4x0.5BE 1x4x0.5BE 1x4x
Article number: Suppl. article no:
1414168
70005436
to see price and stock
Powerline is a cardboard-packed, prewired flexible pipe which significantly reduces installation times (by up to 40%) for electrical, telephone, data, antenna and fire alarm cables. A big advantage with PowerLine is that the pipe can be pulled straight along its whole length - without the help of complex and space-consuming winds and stands. PowerLine is manufactured in PVC and halogen-free material. PowerLine, of course, always works in wooden joists, but it also functions excellently if embedded. PowerLine has been tested to support embedding at 750 N pressure. The pipe and electrical cable has been approved by SEMKO. The temperature range: -25 to + 60 ° C.
- Article number: 1414168
- Suppl. article no: 70005436
- Ean no: 9010459173454
- Material class QE4140
Technical data
- Packagin Size: 100 M
- Type: ELQXBE
- Dimension conductor x area: 1x4x0,5 mm
- Colour: Orange
- Outer diameter: 16 mm
- Number of cores single core cable: 0
- Number of data cables: 0
- Number of cores signal-/telecommunications cable: 4
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores low voltage power cable: 0
- Material: Polyvinyl chloride (PVC)
- Halogen free: No
- Bending strength: Flexible
- Operating temperature: -25-60 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.8 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: No
- Suitable for outdoor installation: No
- REACH Date: 2021-06-15
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
