Roxtec

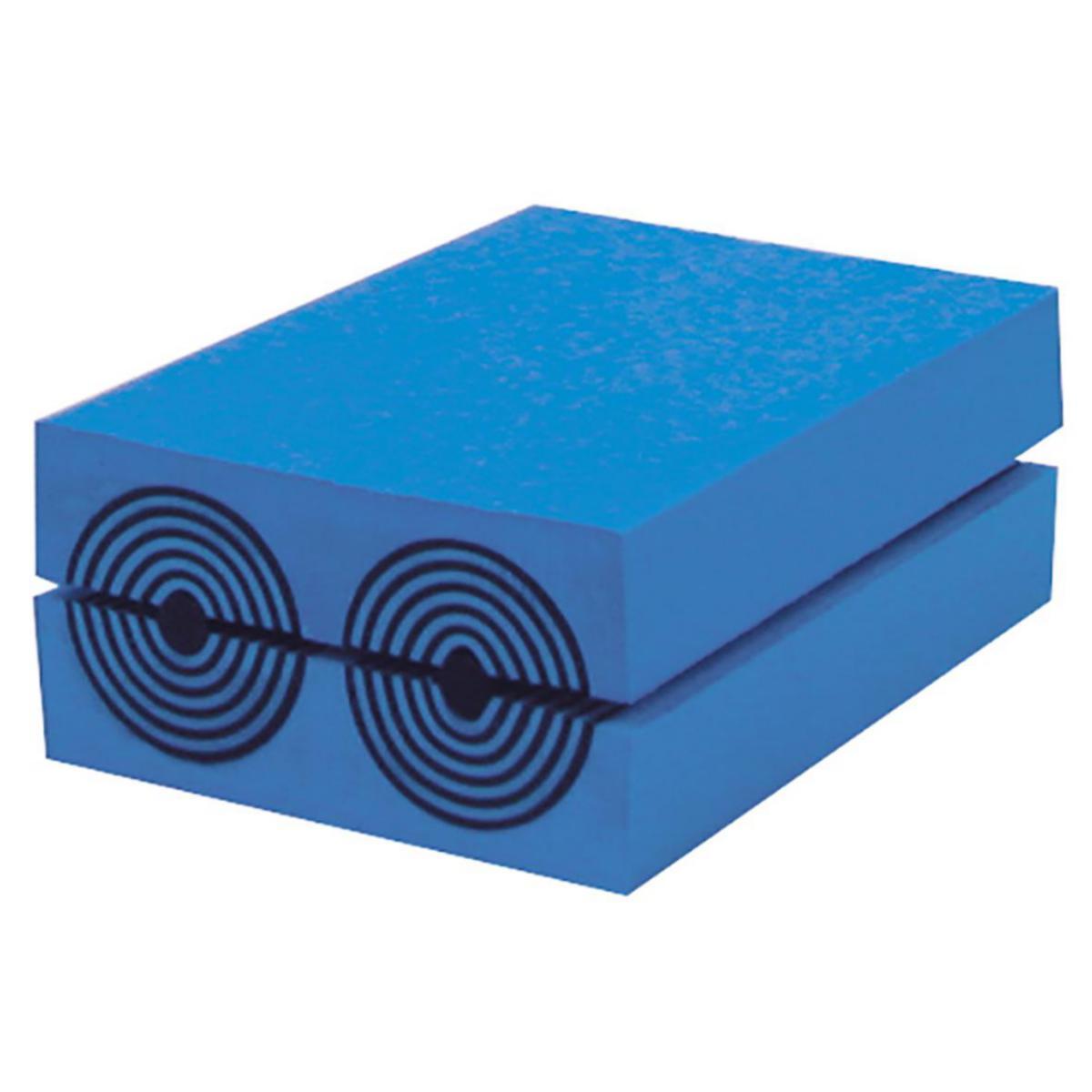

Multidiameter modules RM
MULTIDIAMETERMOD RM20W40 RM00120401000
Article number: Suppl. article no:
1480920
RM00120401000
to see price and stock

Roxtec Multidiameter modules replace earlier traditional module systems for cable and pipe lead-throughs. Thanks to the adaptable layers in the modules, the total number of packing space modules has been reduced to only six (6) pieces compared to more than 80 for traditional systems to date. In all, the six basic modules cover a diameter range of 4-98 mm. Each single Roxtec module (RM 20-120) not only replaces the corresponding single packing piece but whole ranges of traditional packing pieces for different cable and pipe diameters. Also deviating diameters due to manufacturing tolerances of cables are easily handled. The Roxtec modules are adjusted to the cable or pipe diameter which is to be sealed and fitted in S, G, R or B frames. Can also be installed without cable or pipe.
** Roxtec “blank" zero modules
Can be used in those places in a lead-through where no cable is intended to pass or when additional packing is required. If in doubt about future cable routing in the lead-through, the use of Multidiameter modules RM20-RM120. is recommended instead.
** Roxtec “blank" zero modules
Can be used in those places in a lead-through where no cable is intended to pass or when additional packing is required. If in doubt about future cable routing in the lead-through, the use of Multidiameter modules RM20-RM120. is recommended instead.
- Article number: 1480920
- Suppl. article no: RM00120401000
- Ean no: 7340016904095
- Material class QE770B
Technical data
- Packagin Size: 1 PCS/36 PCS/432 PCS
- Type: 20w40
- Suitable for cable diameter: 3.5-16.5 mm
- Number of cables: 2
- Plate thickness/product length: 60 mm
- REACH Date: 2021-08-30
- REACH Information obligation: No
