Roxtec
Mounting frame GH Roxtec galvanized FZV
GH FRAME 6X3 GALV GH 6X3 GALV
Article number: Suppl. article no:
1480218
5GH0000008108
to see price and stock

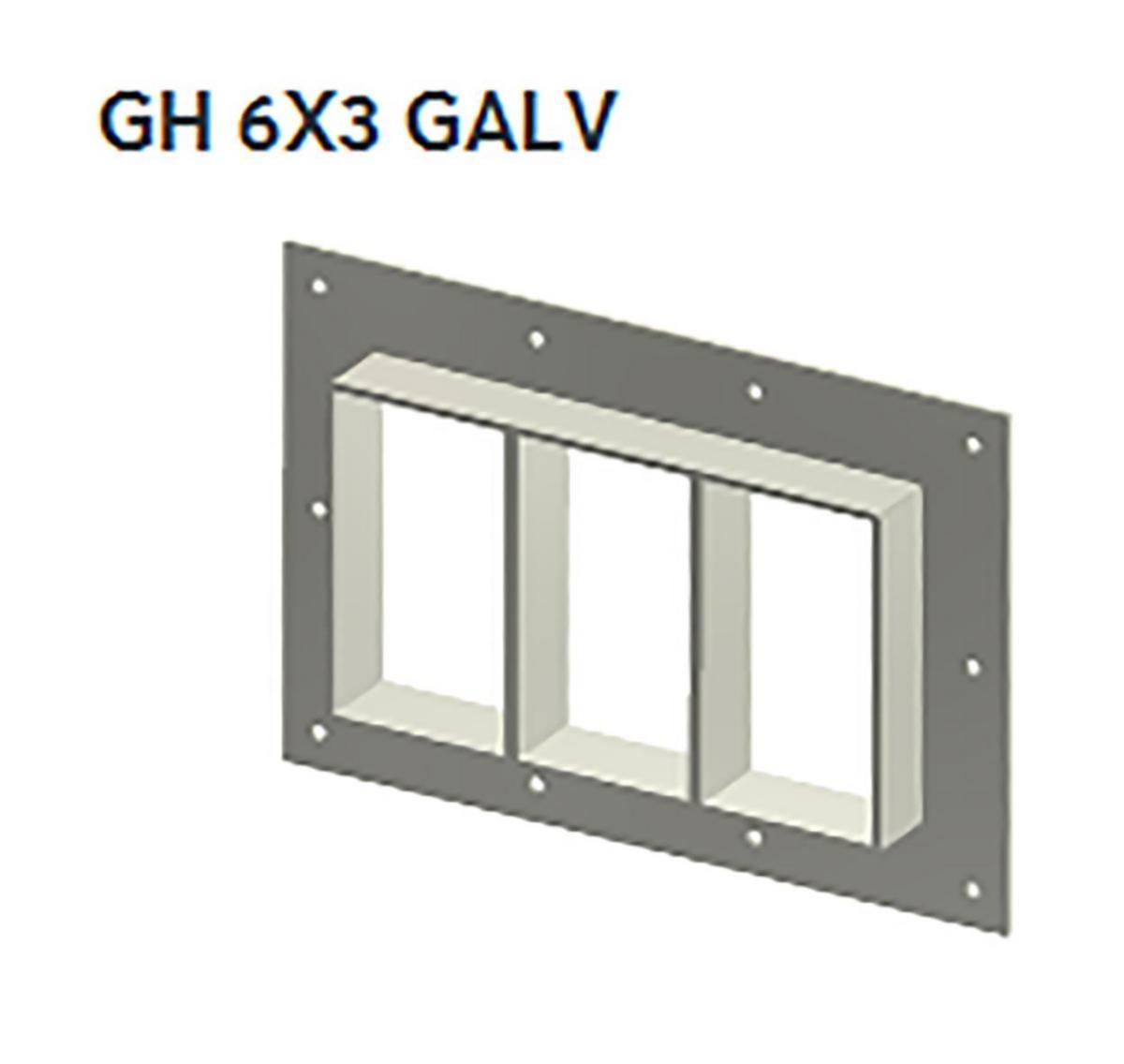

Roxtec GH frame is a metal frame with pre-drilled flange that is available with a single opening and in combinations with several openings in width and / or height. It creates a complete sealing solution when used with custom Roxtec components. Mounted by casting or bolting. Mold is available as an accessory. GE extension frame is available as an accessory. Gasket space in each opening 120 x 180 (mm).
- Article number: 1480218
- Suppl. article no: 5GH0000008108
- Ean no: 7332953140377
- Material class QE770B
Technical data
- Type: GH 6x3 Galv
- Number of inlets: 3
- Width: 513.5 mm
- Length: 350 mm
- Depth: 60 mm
- Equipped with: Other
- Colour: Grey
- Castable: Yes
- Material: Steel
- Mounting under water: No
- Mounting in the soil: No
- Shape: Rectangular
- Type of housing feed-through: Other
- Mounting method: Wall-/ceiling mounting
- Degree of protection (IP): IP66/IP67
- Halogen free: Yes
- Weatherproof: Yes
- Sealable: Yes
- Surface protection: Hot-dip galvanised
- REACH Date: 2021-08-30
- REACH Information obligation: No
