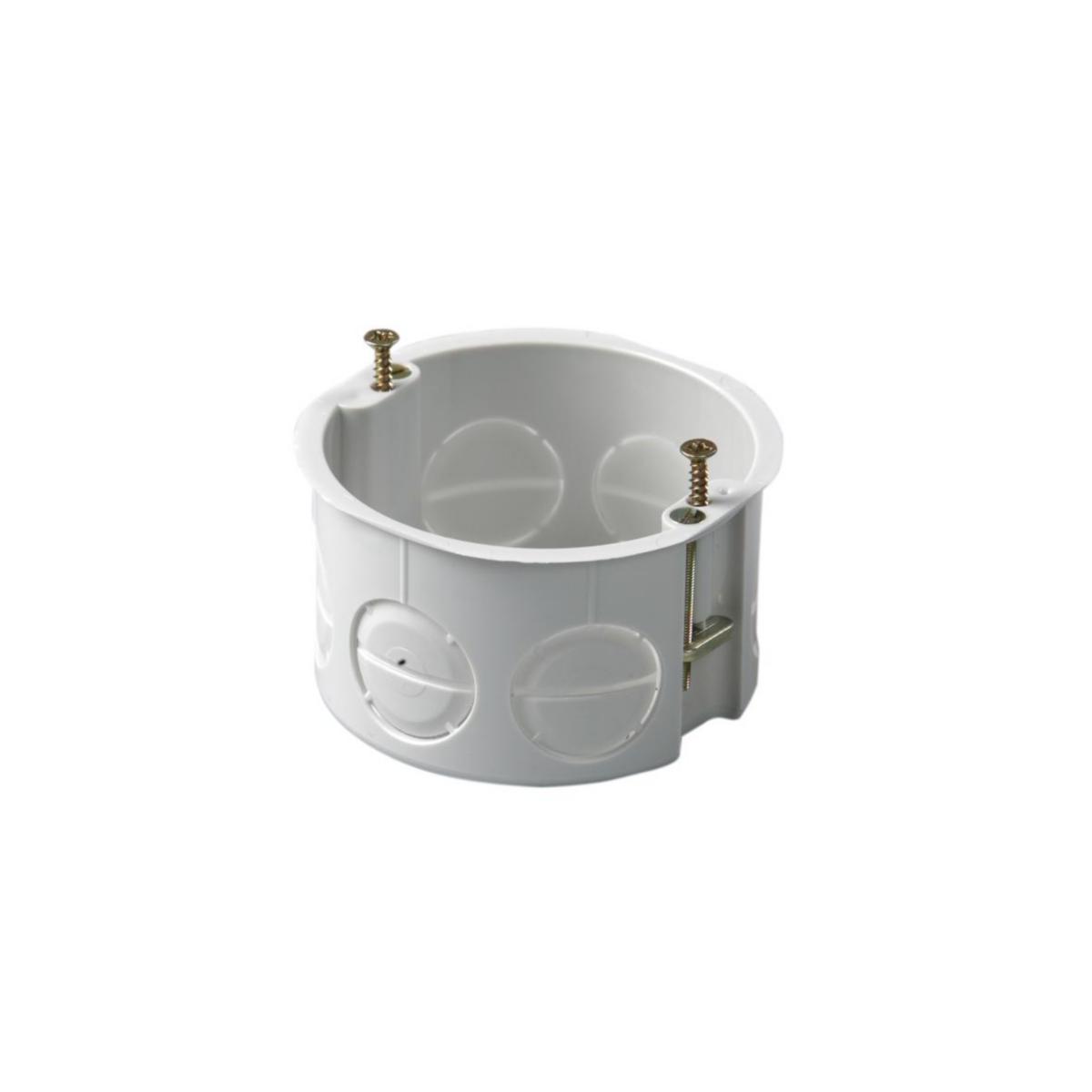

Device box AUS15.2, post-installation, ABB

The AUS15.2 appliance box is used as a post-installation box in walls with panel construction. Box drill for device box 70 mm is used. A breakout for pipe or cable is opened in the box and the box is pressed into the hole. The screws are screwed clockwise, with the mounting lug rising towards the disc and securing the box. The pipe or cable is locked by means of the nozzles that are pressed from the inside. Four bottom breakouts, two for pipe sockets AN9.20 and ANK14.20 and two for strain relief socket AS12. The box is also suitable for log walls. Made of halogen-free material (IEC / 61249-2-21) and meets the requirements of the filament test according to standard IEC / EN60670: 2005 (850 ° C).
