Elko

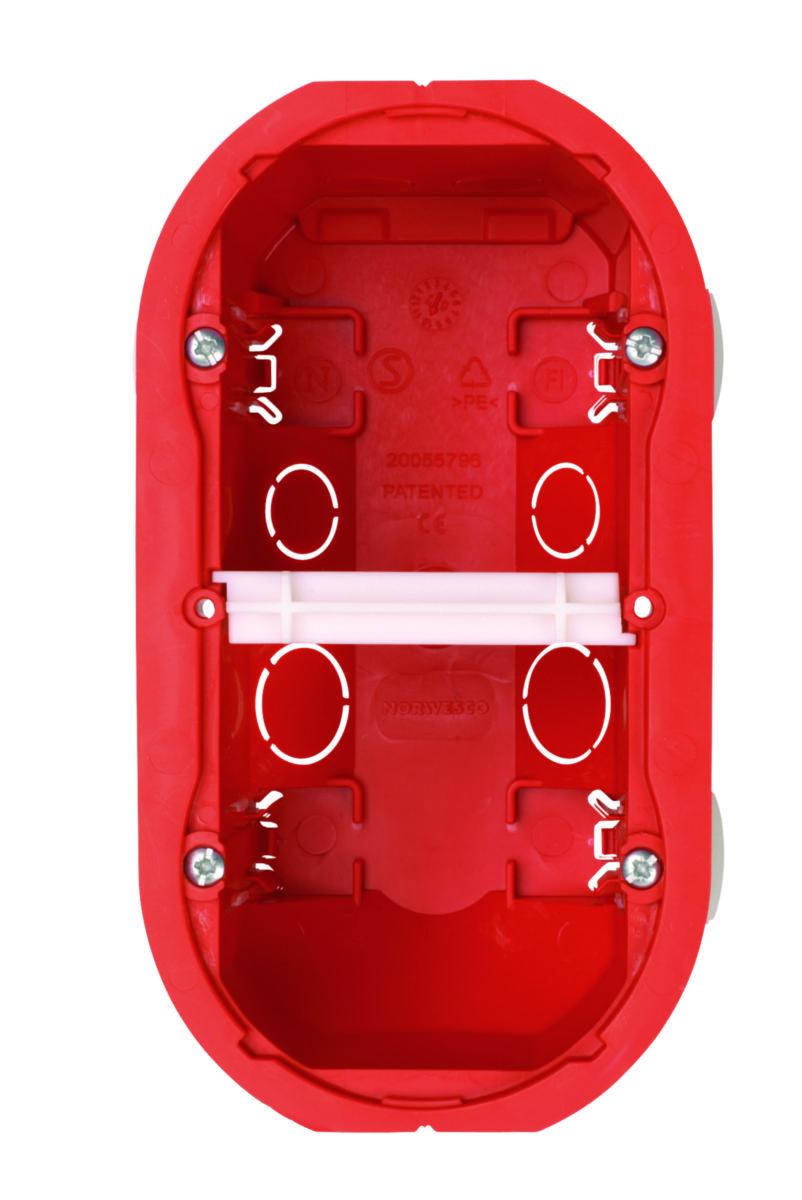

Multibox flush-mounted double Elko
APPARATUS BOX DOUBLE 4545
Article number: Suppl. article no:
1420342
4545
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shb.jpg)
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)
Supplementary box intended for panel walls with single, double or triple plaster. Can be mounted in walls with a minimum of 45mm stud thickness. Intended for use with flexible hose 16 / 20mm but can also be supplemented with double socket E14 203 20 for VP pipes 16 / 20mm. Comes with partition.
- Article number: 1420342
- Suppl. article no: 4545
- Ean no: 7020160454508
- Material class QE540A
Technical data
- Packagin Size: 1 PCS/600 PCS/600 PCS
- Type: 4545
- Model: Double
- Construction type: Built-in installation box (device box)
- Shape: Oval
- Colour: Red
- Diameter: 71 mm
- Equipped with: Clamp
- Depth: 58 mm
- Width: 78 mm
- Length: 143 mm
- Mounting method: Flush-mounted
- Inner depth: 57 mm
- For number of electric fittings: 2
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Pipe locking: No
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Clamp position fixed: No
- With screening: No
- With screws: Yes
- Nozzle: Pipe socket
- Sealable: No
- Air tight: No
- Surface protection: Untreated
- REACH Date: 2022-08-09
- REACH Information obligation: No
- With nail lugs: No
