Schneider Electric

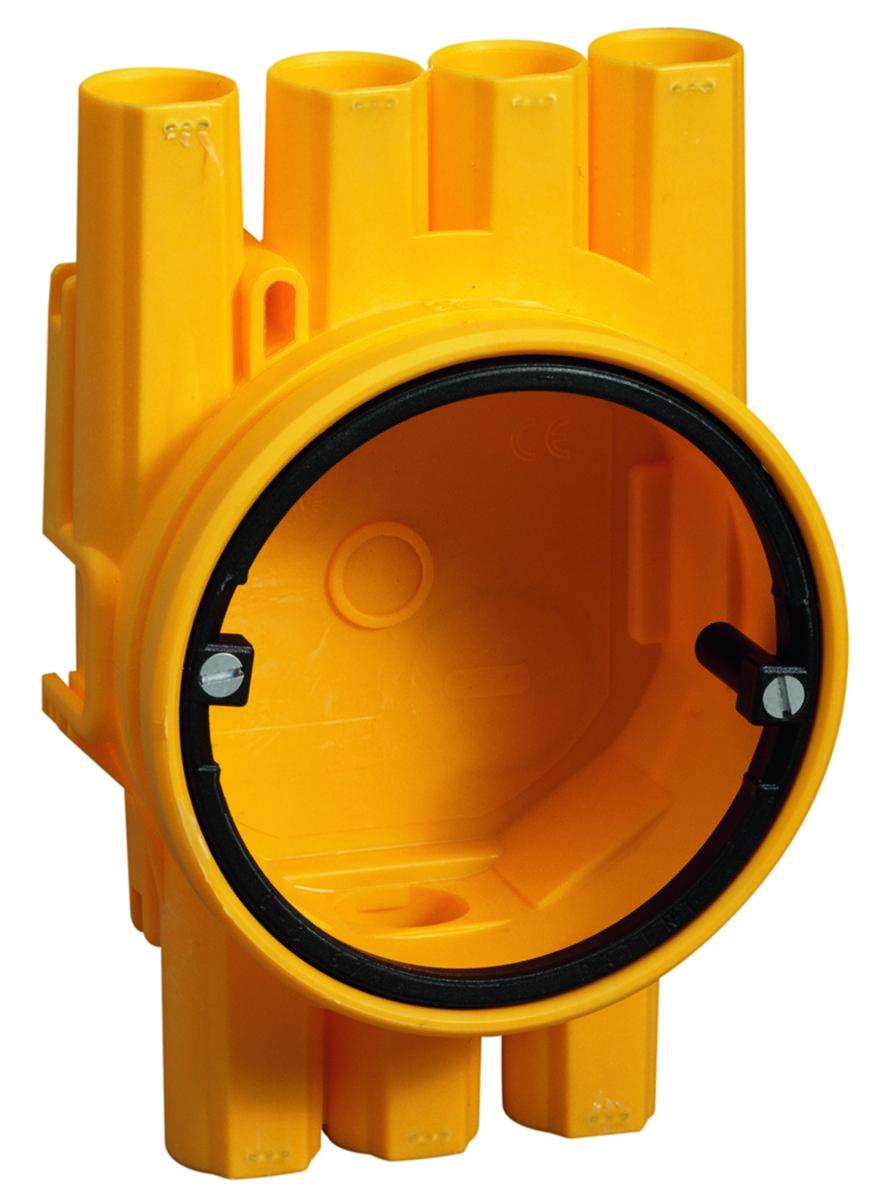

Junction boxes Thorsman
TED-K26 3500711
Article number: Suppl. article no:
1424201
IMT36263
to see price and stock
With rotating bracket ring for screw distance c-c 67. Outlets with locking tabs 26 and 13 mm from the front edge. Nail channels in two directions. Inside diam. 76 mm, depth 46 mm. Colour silver = rigid box.
- Article number: 1424201
- Suppl. article no: IMT36263
- Ean no: 3606480160431
- Material class QE5000
Technical data
- Packagin Size: 1 PCS/5 PCS
- Type: TED K-26
- Suitable for wall/board thickness: 26 mm
- Construction type: Cable junction box
- Shape: Round
- Colour: Yellow
- Diameter: 82 mm
- Number of inlets: 7
- Number of included spouts: 7
- For tube diameter: 16 mm
- Equipped with: Other
- Depth: 48 mm
- Width: 82 mm
- Length: 128 mm
- Model: Single
- Mounting method: Flush-mounted
- Inner depth: 46 mm
- For number of electric fittings: 1
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: No
- Pipe locking: Yes
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Clamp position fixed: No
- Max. conductor cross section: 2.5 mm²
- With screening: No
- With screws: Yes
- Nozzle: Pipe socket
- Sealable: No
- Air tight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: Yes
- Pipe locking optional: No
- Special application: None
- Provided with revolving ring: Yes
- REACH Date: 2022-07-20
- REACH Information obligation: No
- Product series: Multifix TED & BP
- With nail lugs: Yes
- Circuit integrity: None
