Schneider Electric

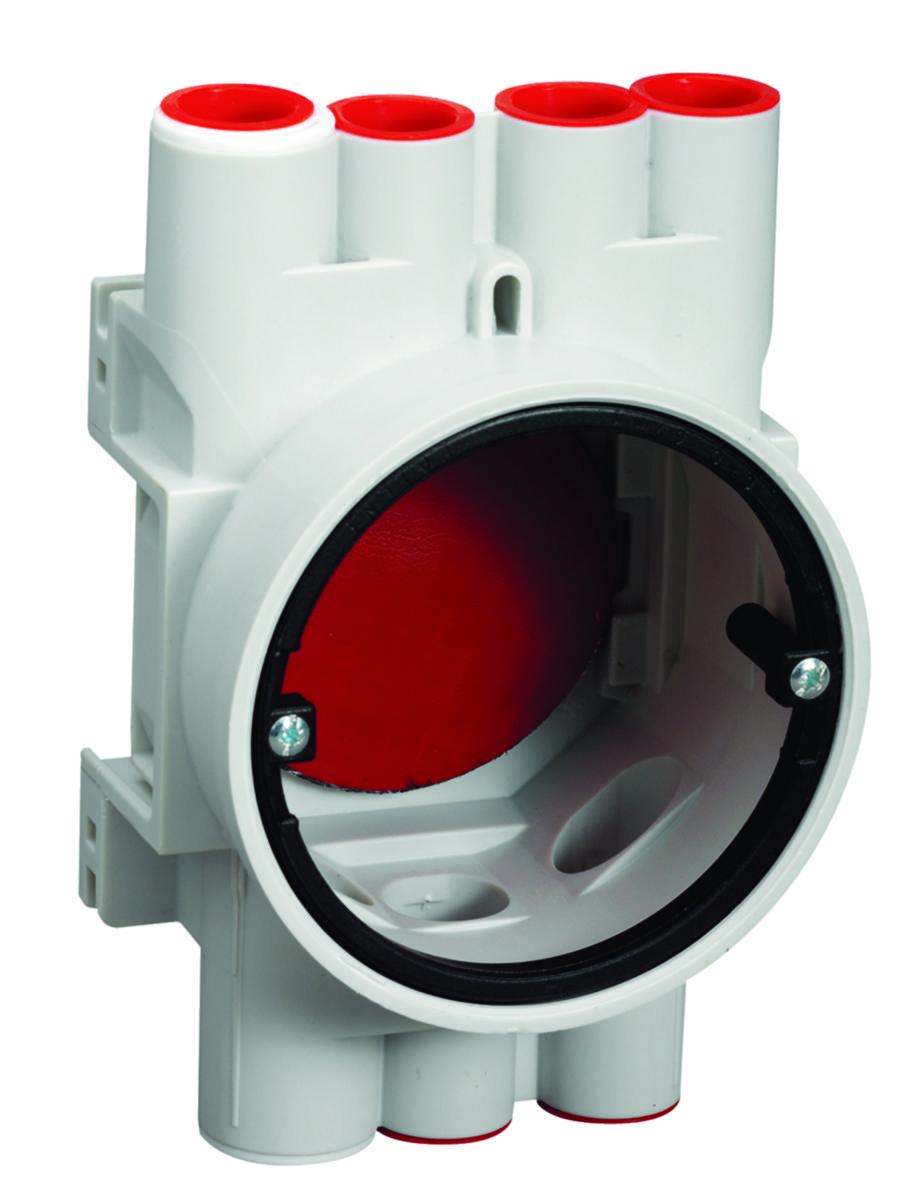

Multifix Fire coupling box for double gypsum wall, 5+2 fixed studs, fire safety plate
MULTIFIX JUNC.BOX DBL, 7ST
Article number: Suppl. article no:
1421397
IMT35017
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shb.jpg)
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)
Connection box 26mm with fire protection plate
- Article number: 1421397
- Suppl. article no: IMT35017
- Ean no: 3606480200571
- Material class QE520A
Technical data
- Packagin Size: 1 PCS/25 PCS
- Suitable for wall/board thickness: 26 mm
- Construction type: Cable junction box
- Shape: Round
- Colour: Grey
- Diameter: 83 mm
- Number of inlets: 7
- Number of included spouts: 7
- For tube diameter: 16/20 mm
- Equipped with: Other
- Depth: 83 mm
- Width: 57 mm
- Length: 132 mm
- Model: Single
- Mounting method: Flush-mounted
- Inner depth: 55 mm
- For number of electric fittings: 0
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: No
- Pipe locking: Yes
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Clamp position fixed: No
- Max. conductor cross section: 2.5 mm²
- With screening: No
- With screws: Yes
- Nozzle: Pipe socket
- Sealable: No
- Air tight: No
- Surface protection: Untreated
- Couplable: No
- Housing feed-through by seal membrane: Yes
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: No
- Pipe locking optional: No
- Special application: Fire protection
- Provided with revolving ring: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
- Product series: Multifix Fire
- With nail lugs: Yes
- Circuit integrity: None
