Schneider Electric

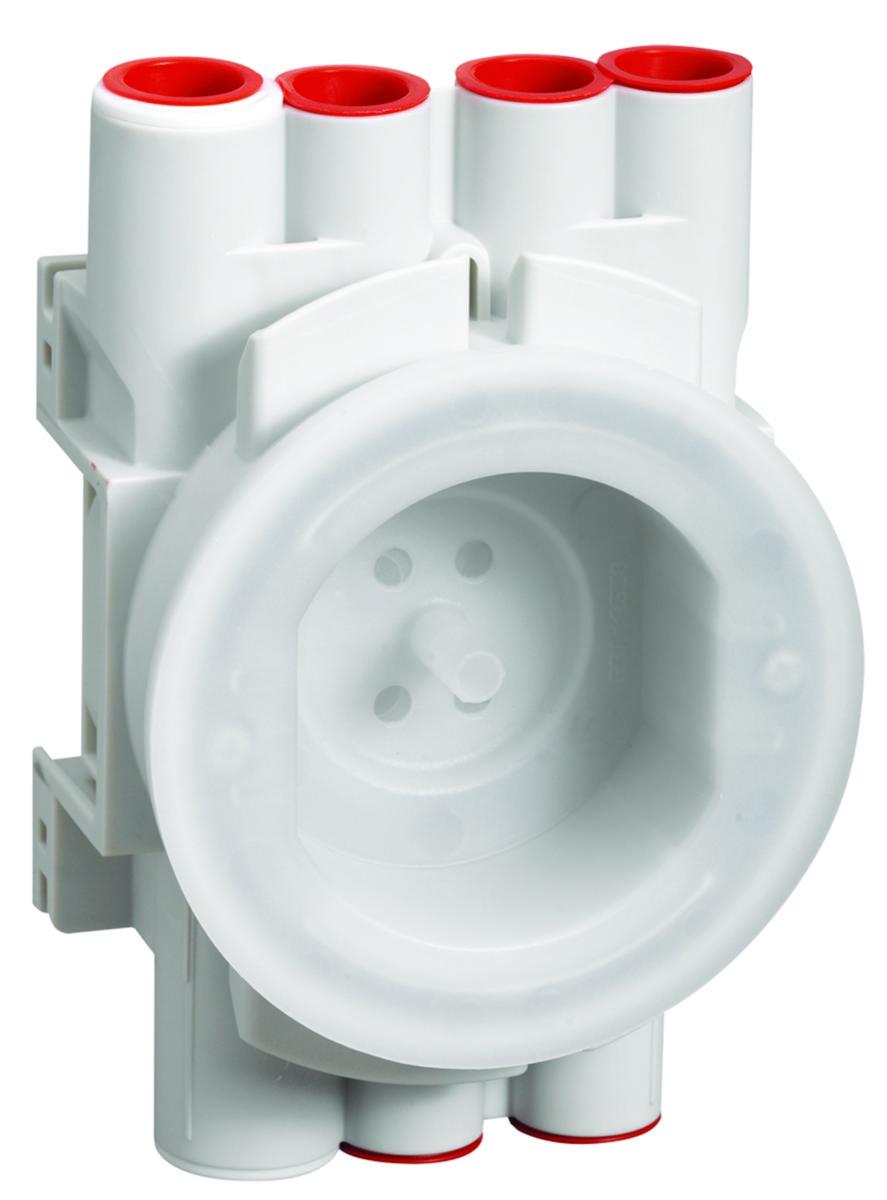

Junction box VP-2 for encapsulation
JUNCTON BOX VP-2 CASTING MULTIFIX
Article number: Suppl. article no:
1421364
IMT36215
to see price and stock
Junction box for incorporation. Seven stucons, two for 20 or 16 mm, the other 16 mm. Seal plugs in all stucare.
- Article number: 1421364
- Suppl. article no: IMT36215
- Ean no: 3606480164262
- Material class QE520A
Technical data
- Packagin Size: 1 ST/25 ST
- Type: VP-2
- Suitable for wall/board thickness: 13 mm
- Construction type: Cable junction box
- Shape: Round
- Colour: Grey
- Diameter: 82 mm
- Number of inlets: 7
- Number of included spouts: 7
- For tube diameter: 16/20 mm
- Equipped with: Other
- Depth: 57 mm
- Width: 83 mm
- Length: 132 mm
- Model: Single
- Mounting method: Concrete building
- Inner depth: 55 mm
- For number of electric fittings: 1
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: No
- Pipe locking: Yes
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Clamp position fixed: No
- Max. conductor cross section: 2.5 mm²
- With screening: No
- With screws: Yes
- Nozzle: Pipe socket
- Sealable: No
- Cover attachment: Snapped on
- Air tight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: Yes
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: No
- Pipe locking optional: No
- Special application: None
- Provided with revolving ring: Yes
- Cover model: Blind cover
- REACH Date: 2022-07-20
- REACH Information obligation: No
- Product series: Multifix Prefal
- With nail lugs: Yes
- Circuit integrity: None
