Schneider Electric

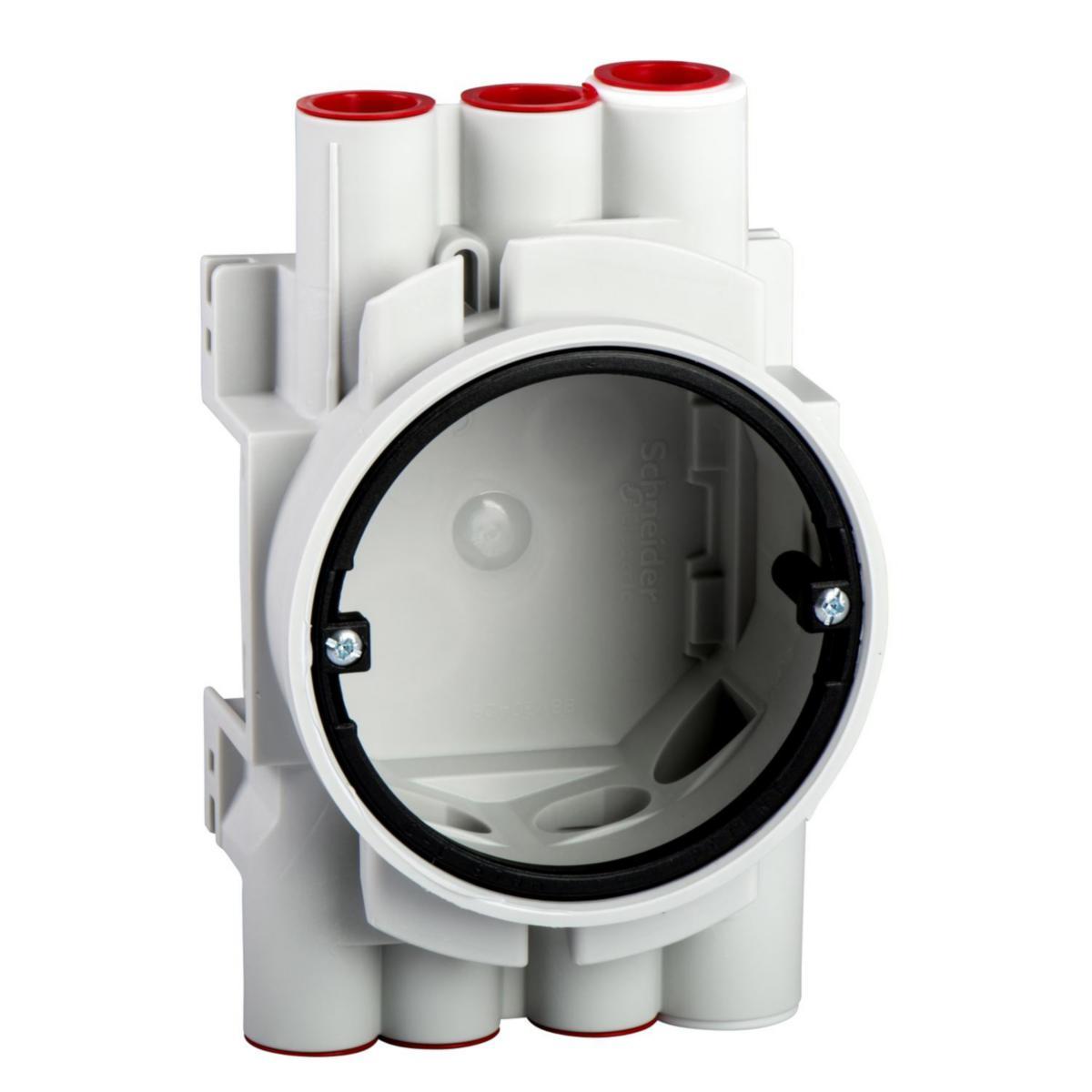

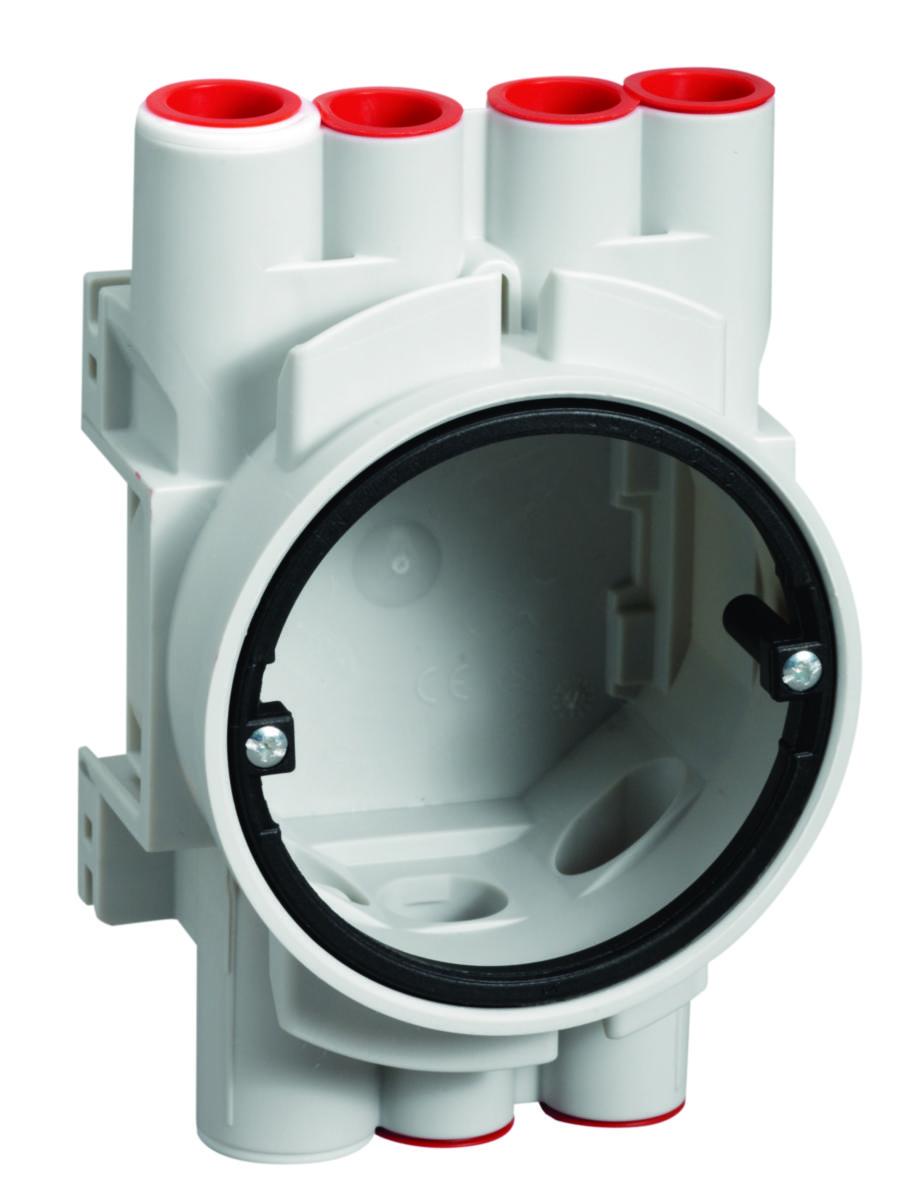

Junction box VP-2
JUNCTION BOX VP-2 SINGLE PB MULTIFIX
Article number: Suppl. article no:
1421363
IMT36214
to see price and stock
For mounting in board walls or embedding. Seven outlets of which two for 20 or 16 mm, the rest of r16 mm. Sealing plugs in all outlets.
- Article number: 1421363
- Suppl. article no: IMT36214
- Ean no: 3606480164255
- Material class QE5200
Technical data
- Packagin Size: 1 PCS/25 PCS
- Type: VP-2
- Suitable for wall/board thickness: 13 mm
- Construction type: Cable junction box
- Shape: Round
- Colour: Grey
- Diameter: 83 mm
- Number of inlets: 7
- Number of included spouts: 7
- For tube diameter: 16/20 mm
- Equipped with: Other
- Depth: 57 mm
- Width: 83 mm
- Length: 132 mm
- Model: Single
- Mounting method: Flush-mounted
- Inner depth: 55 mm
- For number of electric fittings: 1
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: No
- Pipe locking: Yes
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Clamp position fixed: No
- Max. conductor cross section: 2.5 mm²
- With screening: No
- With screws: Yes
- Nozzle: Pipe socket
- Sealable: No
- Air tight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: Yes
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: No
- Pipe locking optional: No
- Special application: None
- Provided with revolving ring: Yes
- REACH Date: 2022-07-20
- REACH Information obligation: No
- Product series: Multifix Prefal
- With nail lugs: Yes
- Circuit integrity: None
