Elko

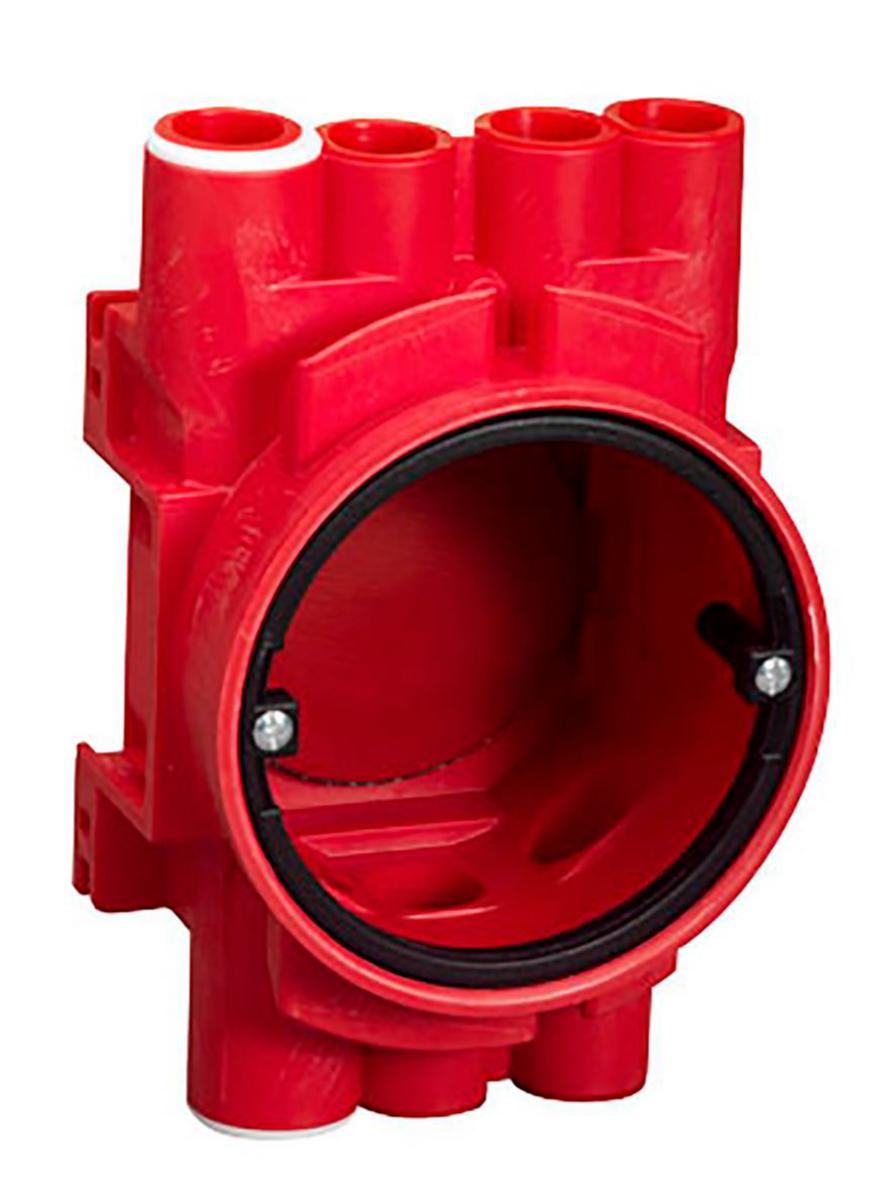

Junction box for fire-classification walls, Elko
JUNCTION BOX FIRE DOUBLE PLAST EKO04943
Article number: Suppl. article no:
1420369
EKO04943
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shb.jpg)
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)
Coupling boxes for mounting in disc walls, single or double plaster. Provided with ring and 7 connectors for 16mm pipe and 2pcs for 20mm pipe. Supplementation with loose connection pieces possible on sides. Upon delivery, non-armed side are not sealed. Supplied without plaster cover but with connectors with sealing plug. C / c measurement between fixing screws, 67mm.
- Article number: 1420369
- Suppl. article no: EKO04943
- Ean no: 7020160494306
- Material class QE540A
Technical data
- Packagin Size: 1 ST/25 ST
- Suitable for wall/board thickness: 26 mm
- Construction type: Device connection box (round/square)
- Shape: Round
- Colour: Red
- Diameter: 82 mm
- Number of inlets: 11
- Number of included spouts: 7
- For tube diameter: 16/20 mm
- Equipped with: Other
- Depth: 57 mm
- Width: 82 mm
- Length: 131 mm
- Model: Single
- Mounting method: Flush-mounted
- Inner depth: 54 mm
- For number of electric fittings: 1
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Pipe locking: Yes
- Mounting switching equipment: Screw or spread out
- With screws: Yes
- Nozzle: Pipe socket
- Couplable: Yes
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: No
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: Yes
- Pipe locking optional: No
- Special application: Fire protection
- Provided with revolving ring: Yes
- REACH Date: 2022-08-09
- REACH Information obligation: No
- Product series: Röda serien
- With nail lugs: Yes
- Circuit integrity: E90
