Device boxes ThorsmanTED

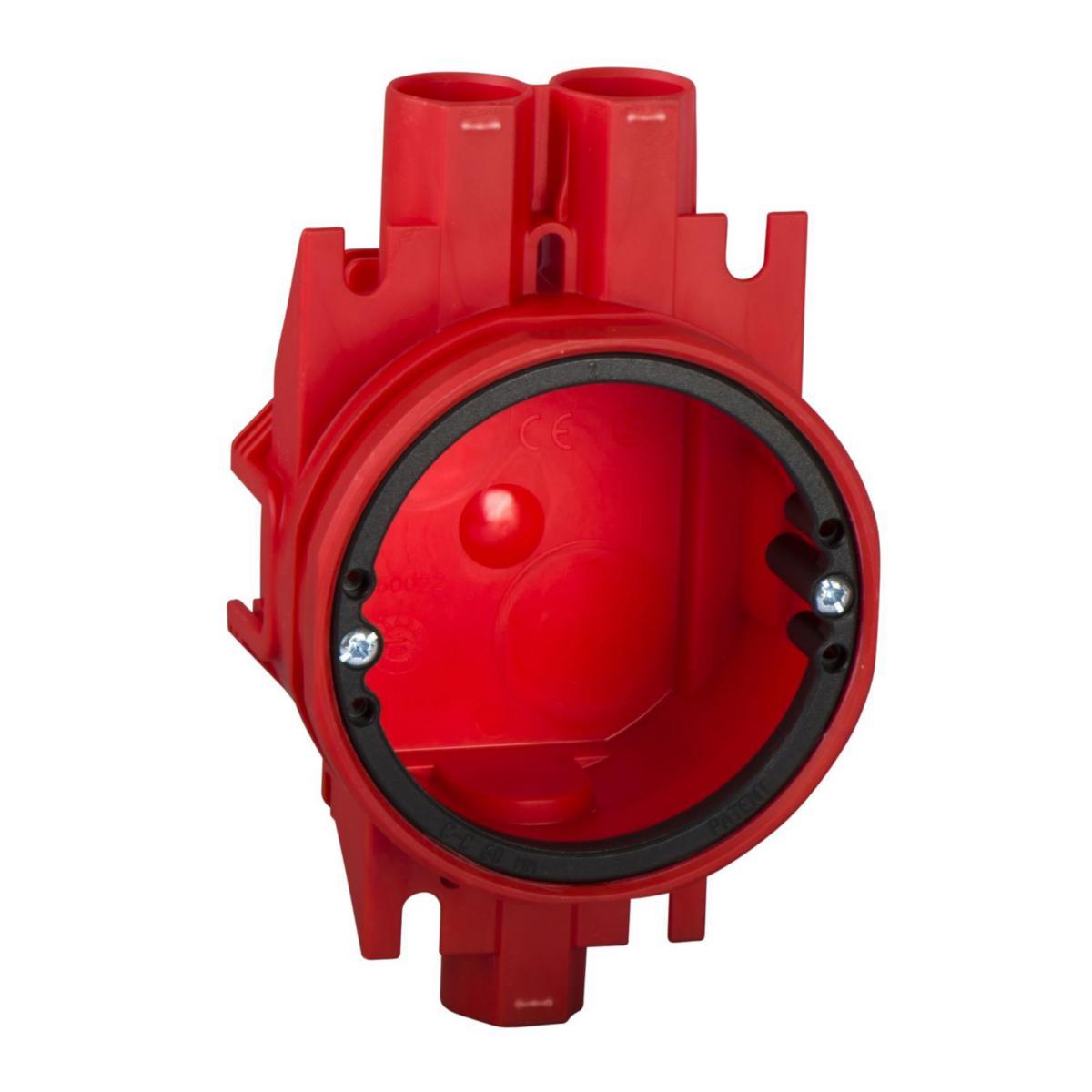

APPARATUS BOX,RECESSED TED-A26 3500206
Article number: Suppl. article no:
1424401
IMT36256
to see price and stock
With rotating screw ring for screw distance c-c 60. Outlet with lock tab. When embedding, the boxes are sealed and fastened using the TED-LA covers, which also acts as a dust cap. Colour silver = rigid box. Boxes are halogen-free.
- Article number: 1424401
- Suppl. article no: IMT36256
- Ean no: 3606480161223
- Material class QE5000
Technical data
- Packagin Size: 1 ST/200 ST/200 ST
- Type: TED-A 26
- Product series: Multifix TED & BP
- Suitable for wall/board thickness: 26 mm
- Model: Single
- For tube diameter: 16 mm
- Shape: Round
- Number of included spouts: 3
- Number of inlets: 3
- Diameter: 74 mm
- Colour: Red
- Equipped with: None
- Depth: 48 mm
- Width: 71 mm
- Length: 120 mm
- Construction type: Device connection box (round/square)
- Mounting method: Flush-mounted
- Inner depth: 46 mm
- Special application: None
- Degree of protection (IP): IP30
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: No
- Pipe locking: Yes
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Transparent cover: No
- Clamp position fixed: No
- Max. conductor cross section: 2.5 mm²
- With screening: No
- With screws: No
- Nozzle: Pipe socket
- Sealable: No
- Cover attachment: Screwed
- Air tight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: Yes
- Pipe locking optional: No
- For number of electric fittings: 1
- Provided with revolving ring: Yes
- Cover model: None
- Degree of protection (NEMA): 1
- Circuit integrity: None
- Suitable for cable diameter: 0 mm
- With partition panel: No
- Compliant with BS 4662: No
- REACH Date: 2024-07-31
- REACH Information obligation: No
- With nail lugs: No
