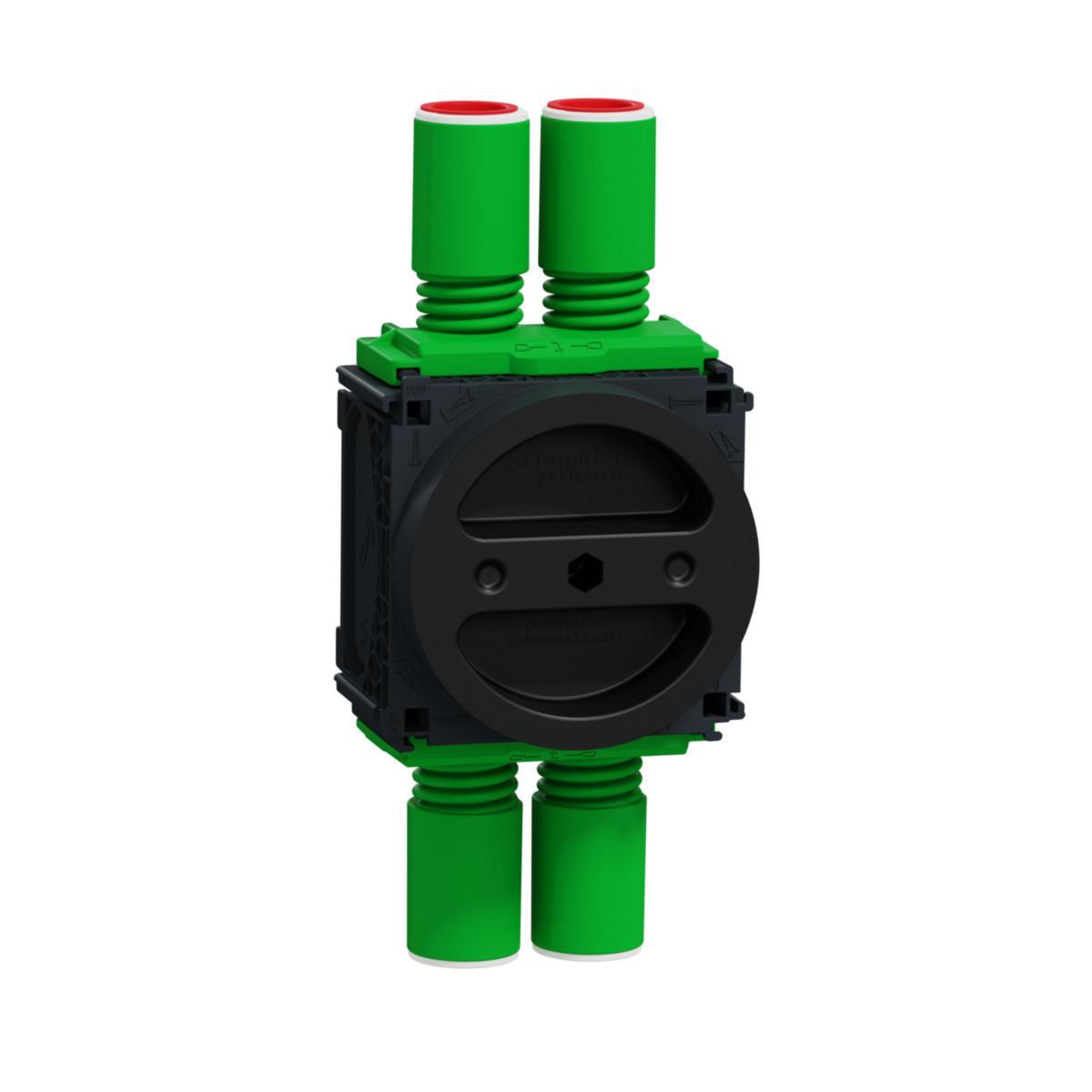

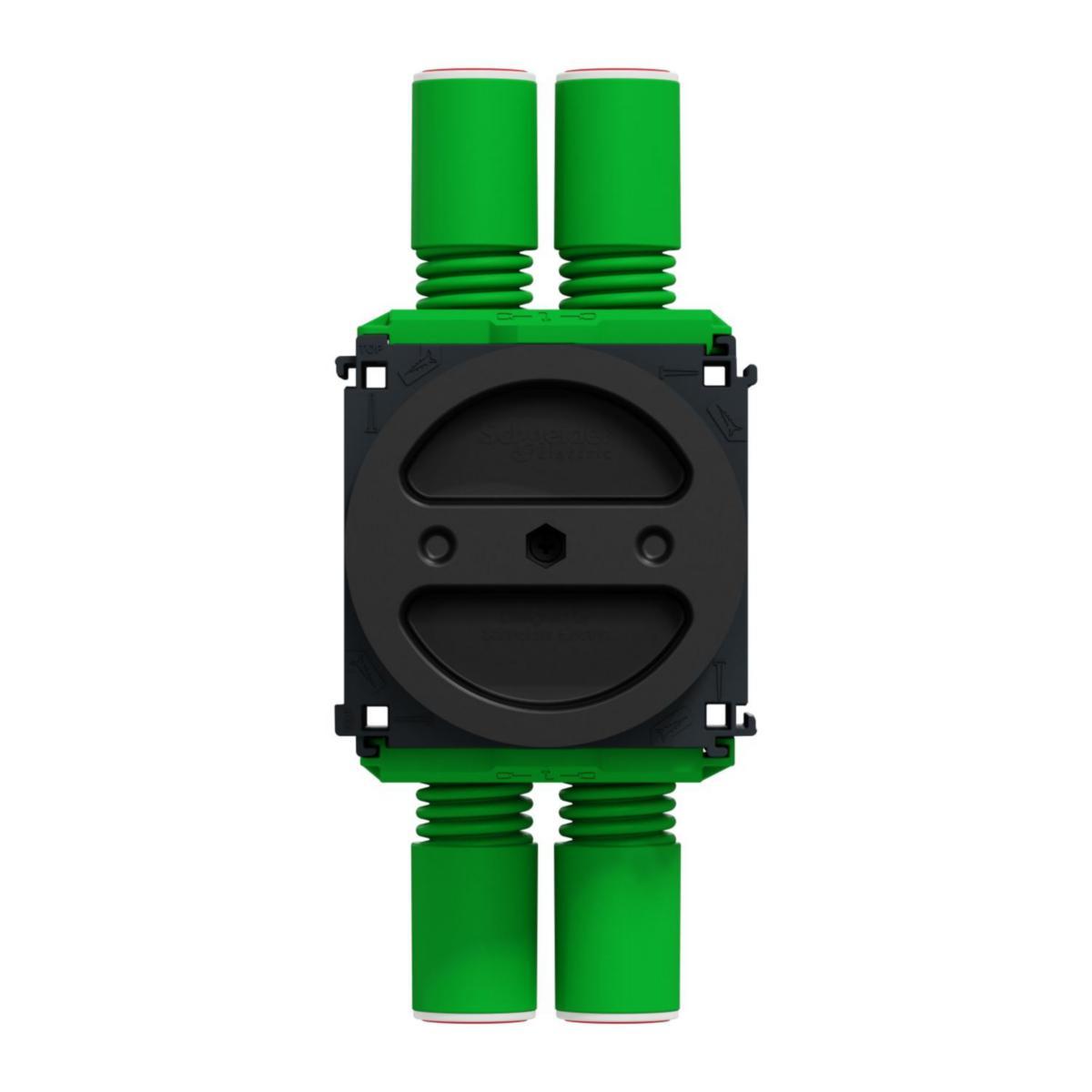

Device box Multifix with fire protection plate
APP.BOX 1M 13-26 MM.4 ST. FIRE IMT80260
Artikelnummer: Lev. artikelnr:
1420193
IMT80260
för att se saldo och pris
Simple device box with fire protection plate, four flexible combi nozzles 16-20mm
- Article number: 1420193
- Suppl. article no: IMT80260
- Ean no: 3606481455642
- Material class QE5200
Teknisk data
- Packagin Size: 1 ST/45 ST/45 ST
- Type: IMT80260
- Product series: Multifix
- Suitable for wall/board thickness: 12-27 mm
- Model: Single
- For tube diameter: 16/20 mm
- Shape: Round
- Number of included spouts: 4
- Number of inlets: 4
- Diameter: 73 mm
- Colour: Grey
- Depth: 57 mm
- Width: 71 mm
- Length: 171 mm
- Construction type: Device connection box (round/square)
- Mounting method: Flush-mounted
- Inner depth: 55 mm
- Special application: Fire protection
- Degree of protection (IP): IP30
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Pipe locking: Yes
- Mounting switching equipment: Screw or spread out
- Luminaire hook mounting: No
- Transparent cover: No
- Clamp position fixed: No
- With screening: No
- With screws: Yes
- Nozzle: None
- Sealable: No
- Cover attachment: Snapped on
- Air tight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: Yes
- Pipe locking optional: No
- For number of electric fittings: 1
- Provided with revolving ring: Yes
- Cover model: Suitable for snap-in connector (manufacturer specific)
- Circuit integrity: None
- REACH Date: 2022-07-20
- REACH Information obligation: No
- With nail lugs: No
