Schneider Electric

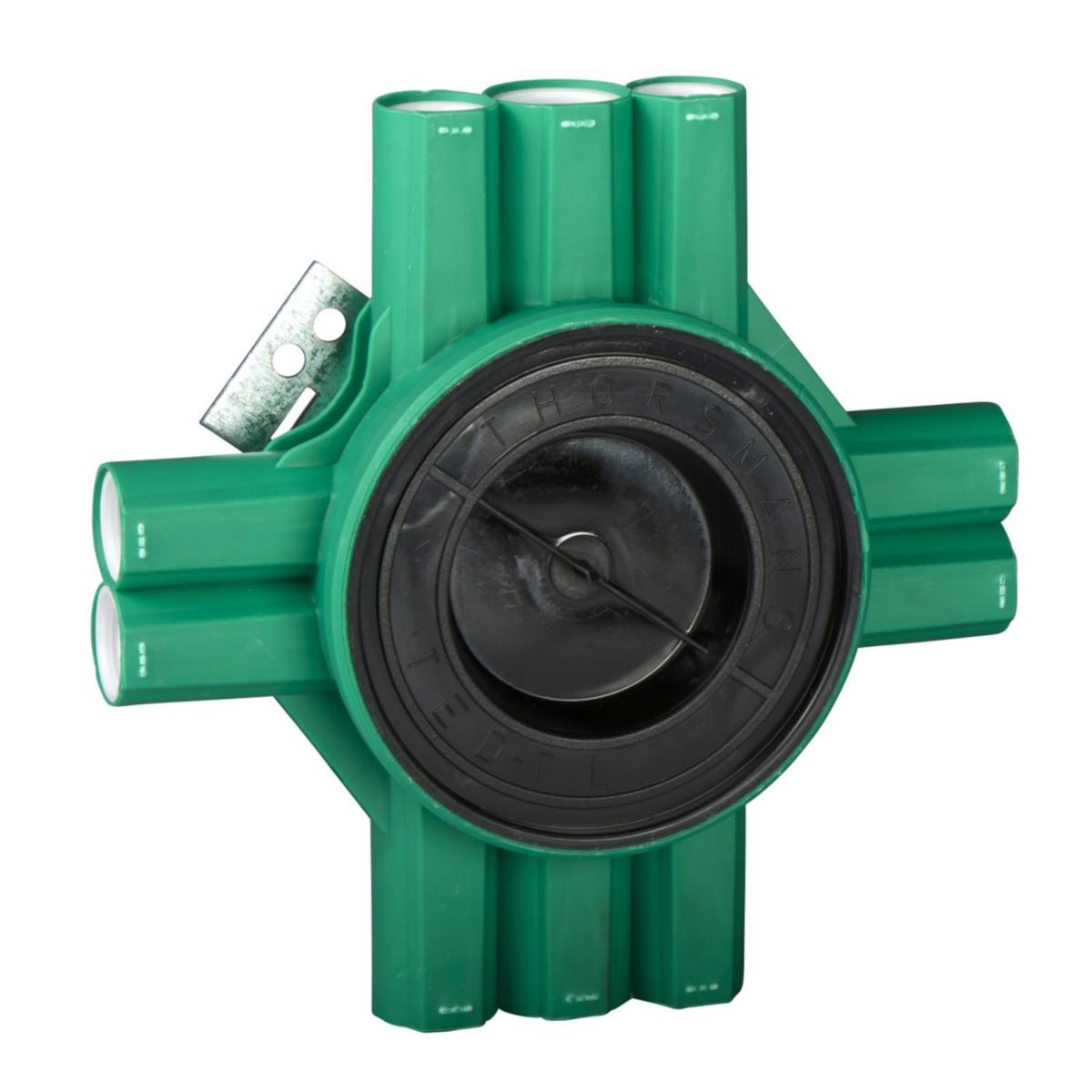

Ceiling boxes Thorsman
TED-T13 3500390
Article number: Suppl. article no:
1424695
IMT36302
to see price and stock
Ceiling boxes with 10 outlets, of which 2 are Ø 20 mm, the rest are Ø 16 mm. In addition to the normal depth box TED-T26 there is a shallower model TED-T13 and a deeper model TED-T39 and the extra deep TED-T52.. All ae supplied with a cover for effective sealing during insertion. TED-T13Extra low build 35 mm requires height extension ring 14 247 57 to handle the standard 40 mm recessed depth. Colour silver = rigid box. Boxes are halogen-free.
- Article number: 1424695
- Suppl. article no: IMT36302
- Ean no: 3606480160356
- Material class QE5000
Technical data
- Packagin Size: 1 ST/50 ST/600 ST
- Type: TED-T13
- Product series: Multifix TED & BP
- Suitable for wall/board thickness: 13 mm
- Model: Single
- For tube diameter: 20 mm
- Shape: Round
- Number of included spouts: 10
- Number of inlets: 10
- Diameter: 83 mm
- Colour: Green
- Equipped with: Other
- Depth: 36 mm
- Width: 36 mm
- Length: 139 mm
- Construction type: Cable junction box
- Mounting method: Flush-mounted
- Inner depth: 34 mm
- Special application: None
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: No
- Pipe locking: Yes
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Transparent cover: No
- Clamp position fixed: No
- Max. conductor cross section: 2.5 mm²
- With screening: No
- With screws: No
- Nozzle: None
- Sealable: No
- Cover attachment: Snapped on
- Air tight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: Yes
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: No
- Pipe locking optional: No
- For number of electric fittings: 1
- Provided with revolving ring: No
- Cover model: Mounting cover
- Circuit integrity: None
- Suitable for cable diameter: 0 mm
- REACH Date: 2022-07-20
- REACH Information obligation: No
- With nail lugs: No
