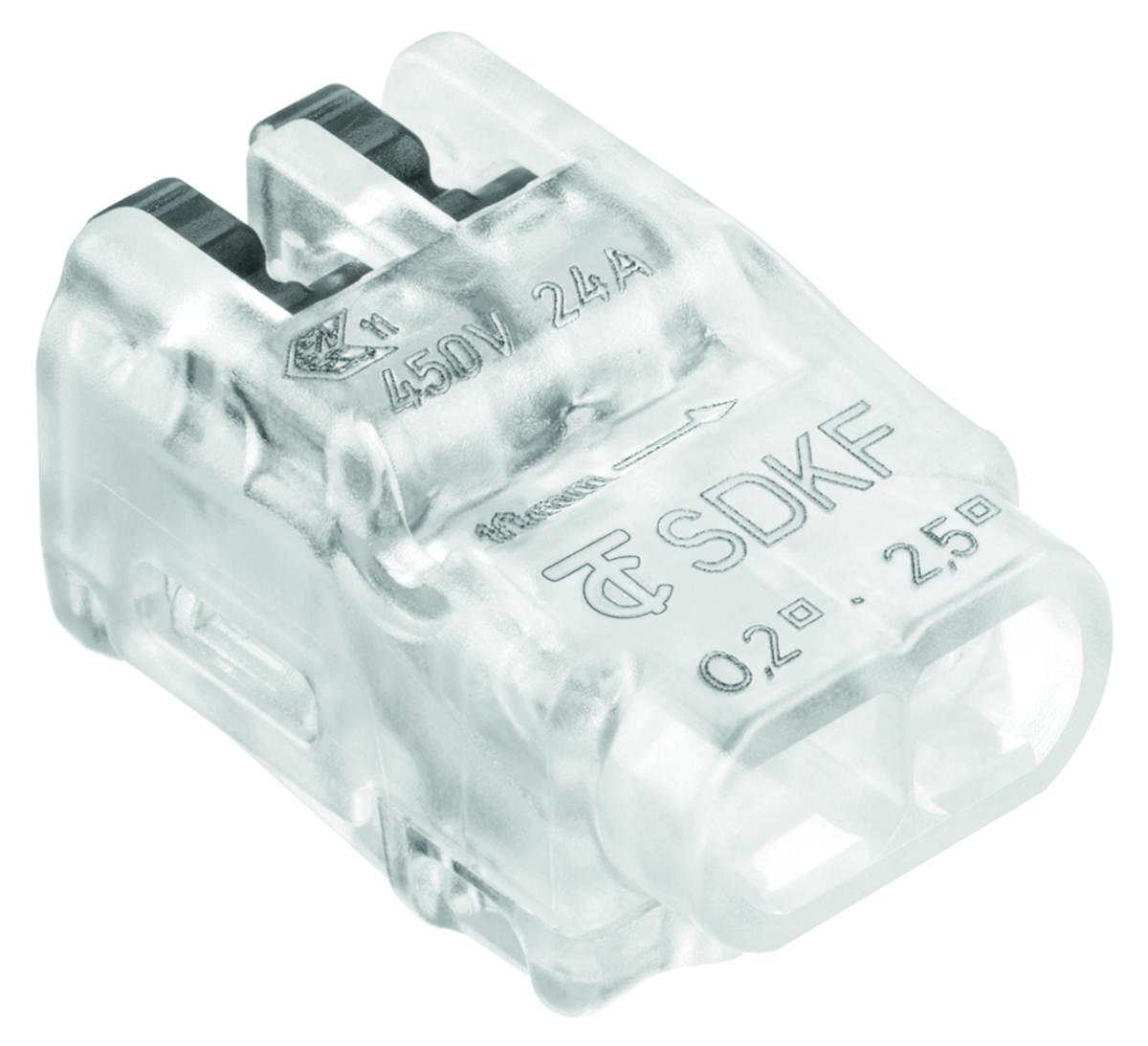

Couplingclamp openable a-collection
COMPACT SPLICING CONNECTOR 2P PRIS /ST FÖRP. (100ST) A-COLL
Article number: Suppl. article no:
1441142
SDKF 2
to see price and stock
A-collection openable connector clamps are compact and ergonomically-designed. The clamps are available for two, three, and five wires. Solid wires, 0.5-2.5 mm2 and stranded wire (FK) 1.5-2.5mm2 can be combined in the same clamp. The transparent casing with test holes makes it easy to verify that the wires are in their place and ready to test the installation. Wires (EK and FK) can be connected without opening the terminal. The wires are insulated, 9-10mm
- Article number: 1441142
- Suppl. article no: SDKF 2
- Ean no: 7340080778905
- Material class QE8940
Technical data
- Packagin Size: 100 ST
- Number of clamp positions: 2
- Nominal cross section: 0.5-2.5 mm²
- Conductor cross section solid (solid, stranded): 0.5-2.5 mm²
- Conductor cross section flexible (fine-strand) with cable end sleeve: 1.5-2.5 mm²
- With operation lever: Yes
- Colour: Colourless
- Nominal voltage: 450 V
- Nominal current: 24 A
- Halogen free: Yes
- Width: 11.8 mm
- Depth: 21 mm
- Height: 11.6 mm
- Suitable for flexible conductors: Yes
- Suitable for multi-wire conductors: Yes
- Suitable for solid conductors: Yes
